Appendix C — Connector Care C-5 Connector Pin Depth Precautions
ML248xx, ML249xA MM PN: 13000-00164 Rev. K C-3
Pin Depth Dimensions
Before mating, measure the pin depth of the device that will mate with the RF component. The dimensions to
measure are shown below in Figure C-1.
Pin Depth Gauge
Use an Anritsu Pin Depth Gauge or equivalent as shown below in Figure C-2 to accurately measure pin
depths.

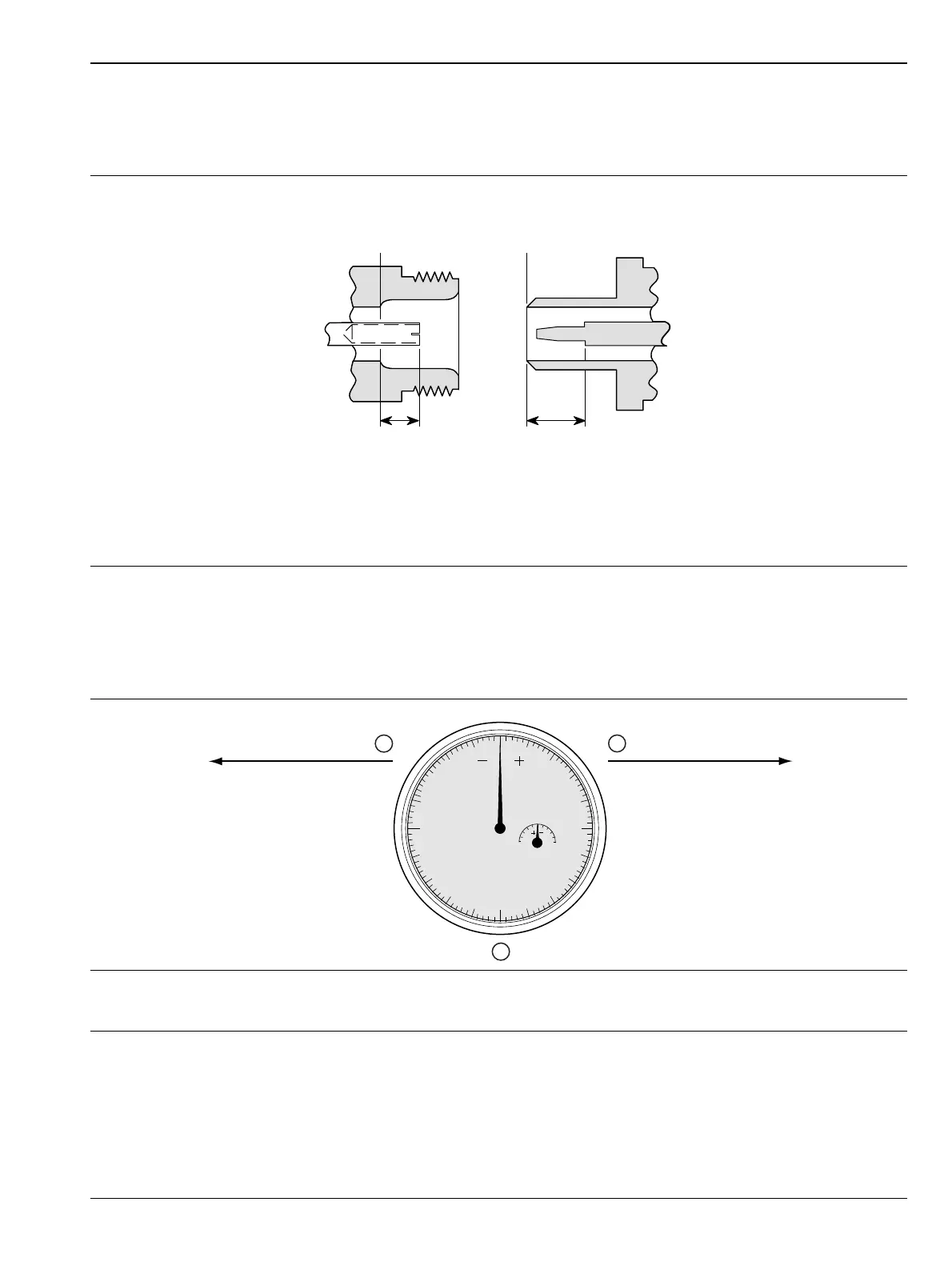

Figure C-1. N Connector Pin Depth
1 – Pin Depth Gauge with needle setting at zero.
2 – Positive needle direction clockwise to right.
3 – Negative needle direction counter-clockwise to left.
Figure C-2. Pin Depth Gauge
Reference
Plane
Reference
Plane
Pin Depth
(Inches)
Pin Depth
(Inches)
MALEFEMALE
0
1
2
3
4
5
1
2
3
4
2
11
2
1
3
2
