Installation GT3000
26 IMGT30017EN

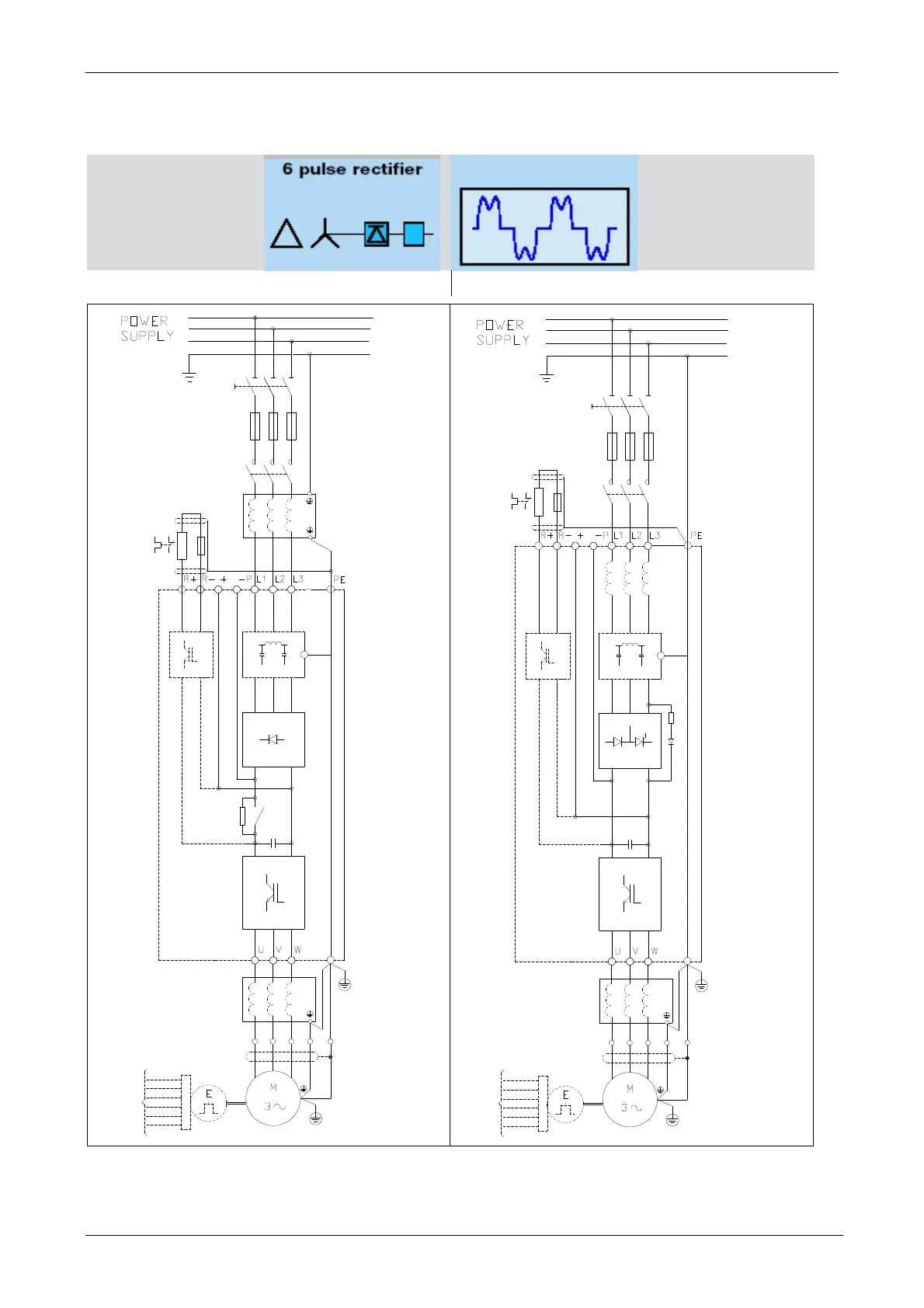

3A.3.1 Power wiring diagram
SVGT0P3-028 6 Pulse SVGT030-166 6 Pulse
Figure 3A.3.1A Power Wiring Diagram
Note: control board terminal connections and auxiliary supply terminal connections are shown in paragraph 3A.4 and Appendix A1.
BRAKING
RESISTOR
OUTPUT
REACTOR
TH
OPTION
KIN
INPUT
REACTOR
LINE FUSES
DISCONNECTING
SWITCH
TH
KIN
FU
LINE FUSES
DISCONNECTING
SWITCH
RESISTOR
BRAKING
INPUT
REACTOR
OUTPUT
REACTOR
