IMGT30017EN 73

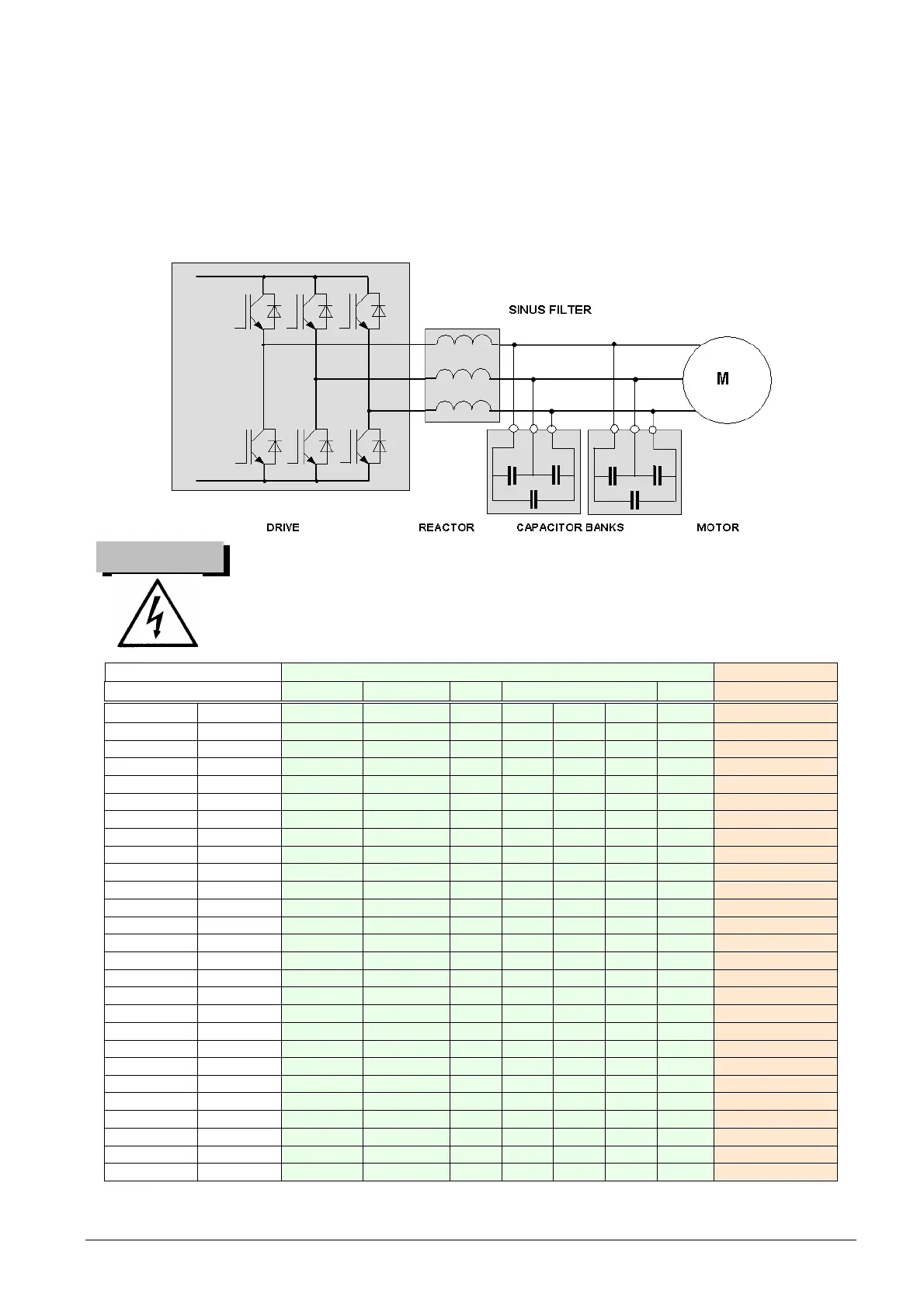

6A.7 Sinus filter
The sinus filter suppresses the high frequency components of the output voltage, this means that the motor voltage waveform is almost sinusoidal
without high voltage peaks and further reduces or undoes the increase of the motor noise fed by VSD.
The sinus filter is particularly indicated for applications where motor does not have adequate insulation for VSD duty, with submersible pumps with long
motor cables e.g. in the oil industry, where maximum safety and reliability is needed in e.g. EX applications and where a transformers in the drive
output is used.
Sinus filters require scalar control (V/Hz) and they are designed for switching frequency of 2KHz (1,5KHz for SVGT470F and SVGT940M) and for a
maximum output frequency off 50Hz
n features
Before connecting the inverter to the motor, verify that the current absorbed by the capacitor bank of the LC
filter at inverter output (see the capacity values of the working diagram enclosed to the supply) is less than
90% of the motor no-load current.
It is necessary to verify this condition in order to avoid the possibility of self-excitation of the motor, with
consequent heavy damages both for the equipment and for the operators.
GT3000 Reactor Capacitor bank
F series SAP code Rated current Loss Dimensions (mm) Weigth SAP code
Cl.1 Cl.2 A W L P H Kg
SVGT0P3F
1000075293
2,1 20 120 77 115 2,7
*3xELC20545904
SVGT0P3F
SVGT0P4F 1000075294 3,8 30 150 82 147 3,8
*3xELP20545901
SVGT0P4F SVGT0P6 1000075295 5,6 40 150 98 147 5,6
*3xELP20545902
SVGT0P6
SVGT008F
1000075296 9,5 55 180 120 175 8
*3xELC20545903
SVGT008F SVGT011F
1000075298 12 62 180 120 175 8,5
*(3x4)
SVGT011F SVGT015F
1000075299 16 75 180 130 175 10,2
*(3x6)
SVGT015F SVGT018F 1000075300
21 95 180 130 180 11
*(3x8)
SVGT018F SVGT022F 1000075301
27 140 240 150 240 16
1x1000081653
SVGT022F SVGT028/30F 1000075302
34 135 240 150 215 23
1x1000081653
SVGT028/30F SVGT036F 1000075303
40 140 240 170 215 24,6
1x1000081652
SVGT036F SVGT045F 1000075304
52 180 300 170 250 34
1x1000081651
SVGT045F SVGT053F 1000075305
65 235 300 175 265 34,5
1x1000081651
SVGT053F SVGT066F 1000075306
77
260 300 185 265 36
1x1000081651
SVGT066F SVGT086F 1000075307 96
300 300 195 290 43
2x1000081652
SVGT086F SVGT108F 1000075308 124
330 300 210 335 61
2x1000081652
SVGT108F SVGT125F 1000075309 156
450 300 240 355 68
2x1000081651
SVGT125F SVGT150F 1000075310 180
500 390 245 360 75
2x1000081651
SVGT150F SVGT166F 1000075311 240
600 390 265 360 95
3x1000081651
SVGT166F SVGT200F 1000075311 240
600 390 265 360 95
3x1000081651
SVGT200F
SVGT250F
1000075312 302
790 420 305 420 115
4x1000081651
SVGT250F SVGT292F
1000075313 370
910 420 315 420 123
5x1000081651
SVGT292F SVGT340F
1000075314 420
1020 480 340 430 150
5x1000081651
SVGT340F SVGT420/470F
1000075315 520
1100 480 335 430 140
7x1000081651
SVGT420F
1000075316 610
1320 480 380 490 180
9x1000081651
SVGT470F
1000075315 520
1100 480 335 430 140
14x1000081651
SVGT470F
20x1000081652
* It is necessary to install three resistors for capacitors discharge.
WARNING !
