ELECTRICAL INSTALLATION

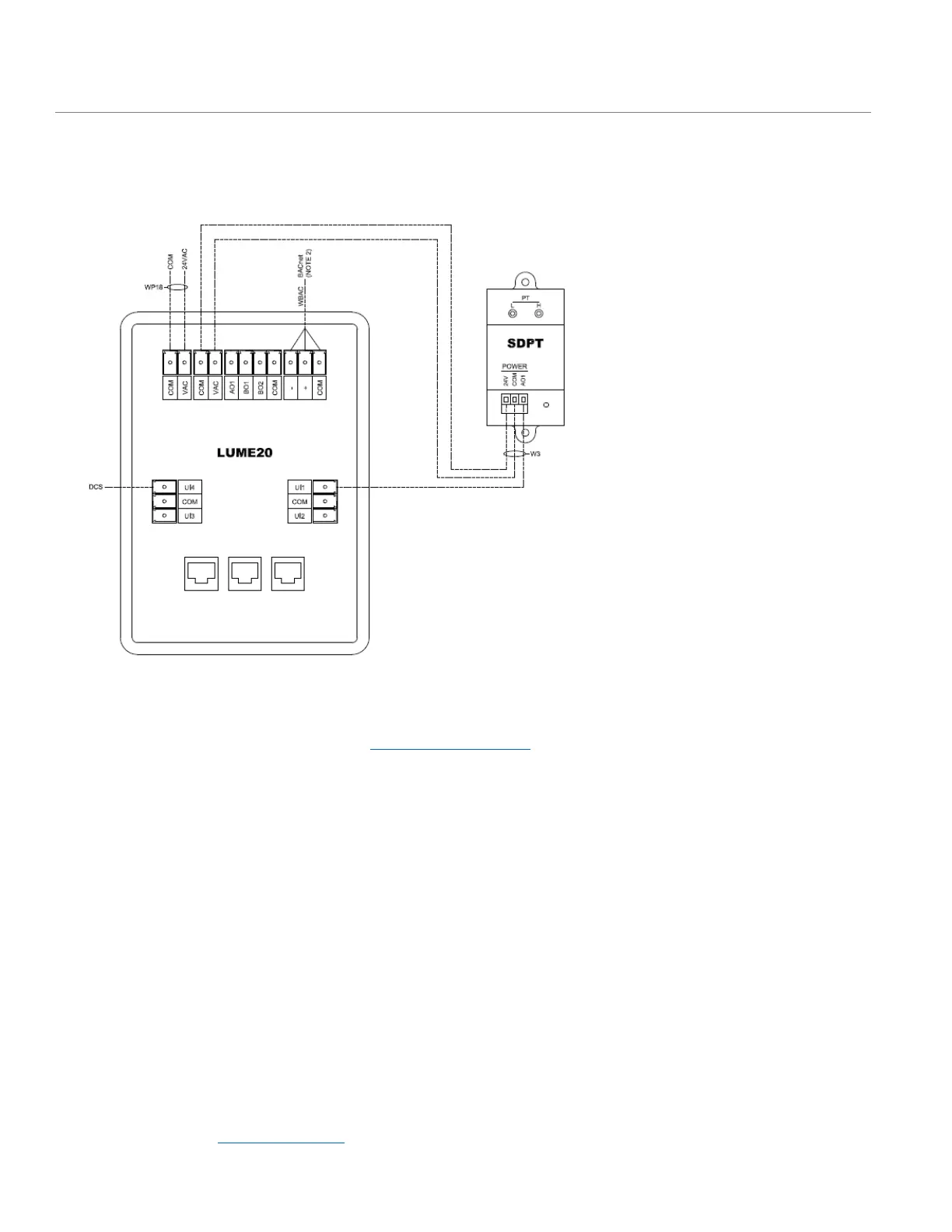

Sample Wiring Diagram
NOTES:
1. For Typical Network Wiring Diagrams, see BACnet MS/TP Network section.
2. All wire connections to the LUME20 screw connection terminals must be between 16-26 AWG wire.
3. Current and voltage drop should be taken into consideration when selecting wire gauge.
4. Wiring above may not reflect those required for your project. Refer to your Antec Controls Wiring Diagram Package for
typical wiring recommendations.
