Pressure Sensor Installation Instructions
Selecting a Location for Installation
There are three components that are to be installed for each
space that requires pressure monitoring:
1.
A sensor plate inside the room
2.
A sensor plate outside the room
3.
An SDPT differential pressure sensor
Begin by determining installation locations for each of these
components.
1.

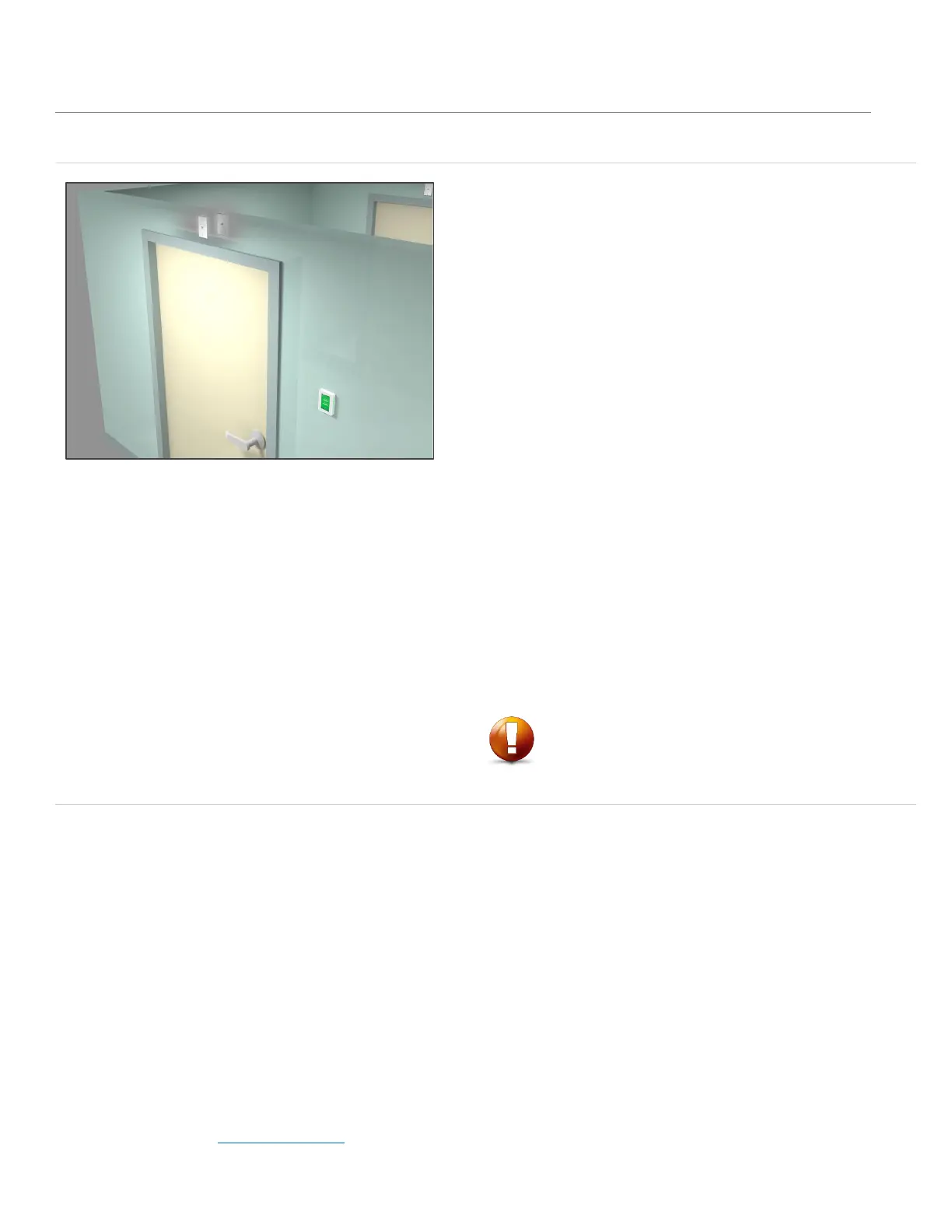

The best installation location for the sensor plates is
typically above a doorway. When determining the
location for the sensor plates:
a.
Ensure that nothing can be placed in front of the
pressure sensor, blocking its ability to measure
the room pressure accurately.
b.
Be wary of diffuser placement in relation to the
sensor. Turbulent airflow passing over the sensor
plate can cause unstable pressure readings.
2.
The Differential Pressure Sensor (SDPT) can be
mounted in the plenum space either in the room or in
the reference space. Important notes:
a.
The sensor must be placed in a location where
the ninety-six inches (96 in., 2.44 m) of total
pressure tubing provided with the SDPT can
reach both pressure plates.
b.
The sensor should be easily accessible for wiring
and setup.
CAUTION
Incorrect placement can affect the sensor’s readings.
