LUME20 - MANUAL
30 | LUME20 – Manual | AntecControls.com

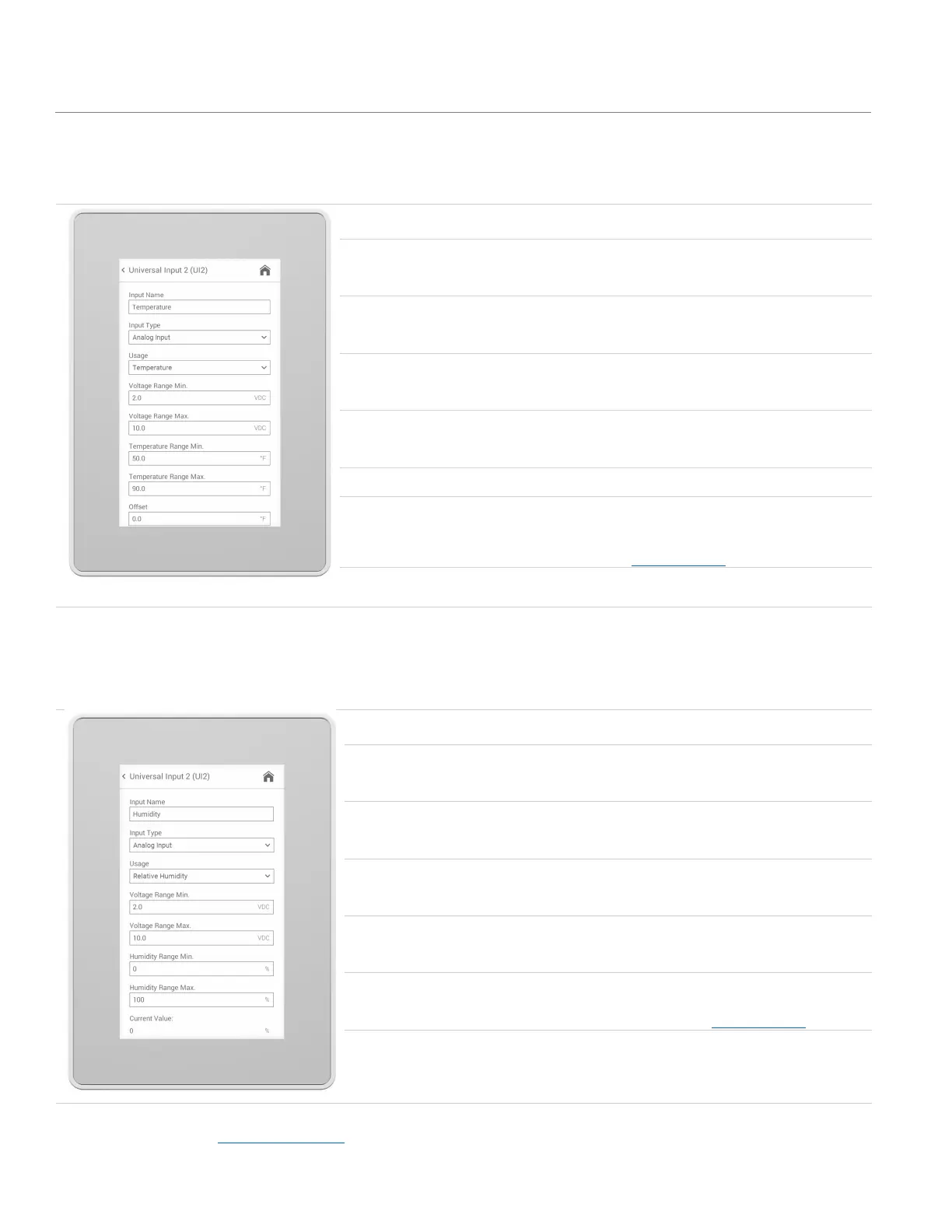

Analog Input – Temperature
Temperature inputs are used to monitor temperature readings such as room temperature or discharge air temperature.
The following settings are available if the Analog Input Usage is Temperature.
Menu Items
Available
Options/Range
Default
Value
Description
Voltage Range
Min.
0 to 10 VDC
0 VDC
Set the minimum value for the voltage
range. The voltage entered here must match
the minimum voltage for the device
providing the signal to LUME20.
Voltage Range
Max.
0 to 10 VDC
10 VDC
Set the maximum value for the voltage
range. The voltage entered here must match
the maximum voltage for the device
providing the signal to LUME20.
Temperature
Range Min.
-40 to 250˚F
(-40 to 121˚C)
50˚F (10˚C)
Set the minimum value for the temperature
range. The temperature entered here must
match the minimum temperature for the
device providing the signal to LUME20.
Temperature
Range Max.
-40 to 250˚F
(-40 to 121˚C)
90˚F (32˚C)
Set the maximum value for the temperature
range. The temperature entered here must
match the maximum temperature for the
device providing the signal to LUME20.
Offset
-50 to 50˚F
(-28 to 28˚C)
0˚F (0˚C)
Applies a fixed offset to the temperature
reading.
Current Value
Read only value
The current temperature reading with offset
applied. This reading matches the value
displayed on the Home Screen when set as
one of the Monitored Devices in the
Monitored Rooms menu.
Current
Voltage
Read only value
The current voltage being read by LUME20
from the temperature sensor.
Analog Input – Relative Humidity
Humidity inputs are used to monitor a humidity reading either in a room or in the duct.
The following settings are available if the Usage is Relative Humidity.
Menu Items
Available
Options/Range
Default
Value
Description
Voltage
Range Min.
0 to 10 VDC
0 VDC
Set the minimum value for the voltage
range. The voltage entered here must
match the minimum voltage for the device
providing the signal to LUME20.
Voltage
Range Max.
0 to 10 VDC
10 VDC
Set the maximum value for the voltage
range. The voltage entered here must
match the maximum voltage for the device
providing the signal to LUME20.
Humidity
Range Min.
0 to 100%
0%
Set the minimum value for the humidity
range. The humidity entered here must
match the minimum humidity for the device
providing the signal to LUME20.
Humidity
Range Max.
0 to 100%
100%
Set the maximum value for the humidity
range. The humidity entered here must
match the maximum humidity for the
device providing the signal to LUME20.
Current Value
Read only value
The current humidity reading. This reading
matches the value displayed on the Home
Screen when set as one of the Monitored
Devices in the Monitored Rooms menu.
Current
Voltage
Read only value
The current voltage being read by LUME20
from the humidity sensor.
