LUME20 - MANUAL
31 | LUME20 – Manual | AntecControls.com

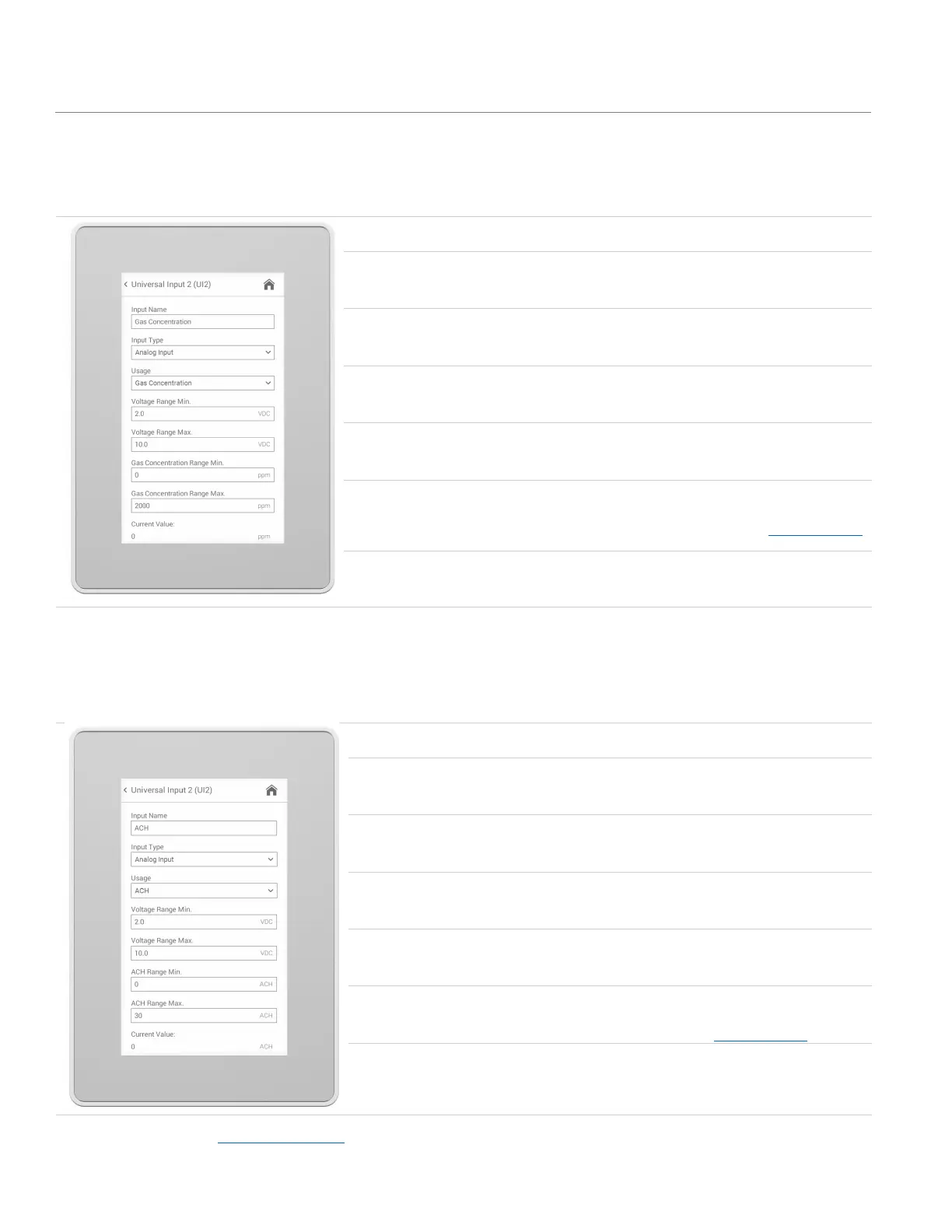

Analog Input – Gas Concentration
Gas concentration inputs are used for monitoring indoor air quality sensor measurements such as CO
2
or VOC concentration.
The following settings are available if the Usage is Gas Concentration.
Menu Items
Available
Options/Range
Default
Value
Description
Voltage Range
Min.
0 to 10 VDC
0 VDC
Set the minimum value for the voltage
range. The voltage entered here must
match the minimum voltage for the device
providing the signal to LUME20.
Voltage Range
Max.
0 to 10 VDC
10 VDC
Set the maximum value for the voltage
range. The voltage entered here must
match the maximum voltage for the device
providing the signal to LUME20.
Gas
Concentration
Range Min.
0 to 100,000 ppm
0 ppm
Set the minimum value for the gas
concentration range. The ppm entered here
must match the minimum ppm for the
device providing the signal to LUME20.
Gas
Concentration
Range Max.
0 to 100,000 ppm
2000 ppm
Set the maximum value for the gas
concentration range. The ppm entered here
must match the maximum ppm for the
device providing the signal to LUME20.
Current Value
Read only value
The current gas concentration reading. This
reading matches the value displayed on the
Home Screen when set as one of the
Monitored Devices in the
Monitored Rooms
menu.
Current
Voltage
Read only value
The current voltage being read by LUME20
from the sensor.
Analog Input – ACH
ACH inputs are used for monitoring a signal that represents the current Air Changes per Hour (ACH) for a space.
The following settings are available if the Usage is ACH.
Menu Items
Available
Options/Range
Default
Value
Description
Voltage
Range Min.
0 to 10 VDC
0 VDC
Set the minimum value for the voltage
range. The voltage entered here must
match the minimum voltage for the device
providing the signal to LUME20.
Voltage
Range Max.
0 to 10 VDC
10 VDC
Set the maximum value for the voltage
range. The voltage entered here must
match the maximum voltage for the device
providing the signal to LUME20.
ACH Range
Min.
0 to 100 ACH
0 ACH
Set the minimum value for the ACH range.
The ACH entered here must match the
minimum ACH for the device providing the
signal to LUME20.
ACH Range
Max.
0 to 100 ACH
30 ACH
Set the maximum value for the ACH range.
The ACH entered here must match the
maximum ACH for the device providing the
signal to LUME20.
Current Value
Read only value
The current ACH reading. This reading
matches the value displayed on the Home
Screen when set as one of the Monitored
Devices in the Monitored Rooms menu.
Current
Voltage
Read only value
The current voltage being read by
LUME20from the ACH signal.
