LUME20 - MANUAL
32 | LUME20Manual | AntecControls.com

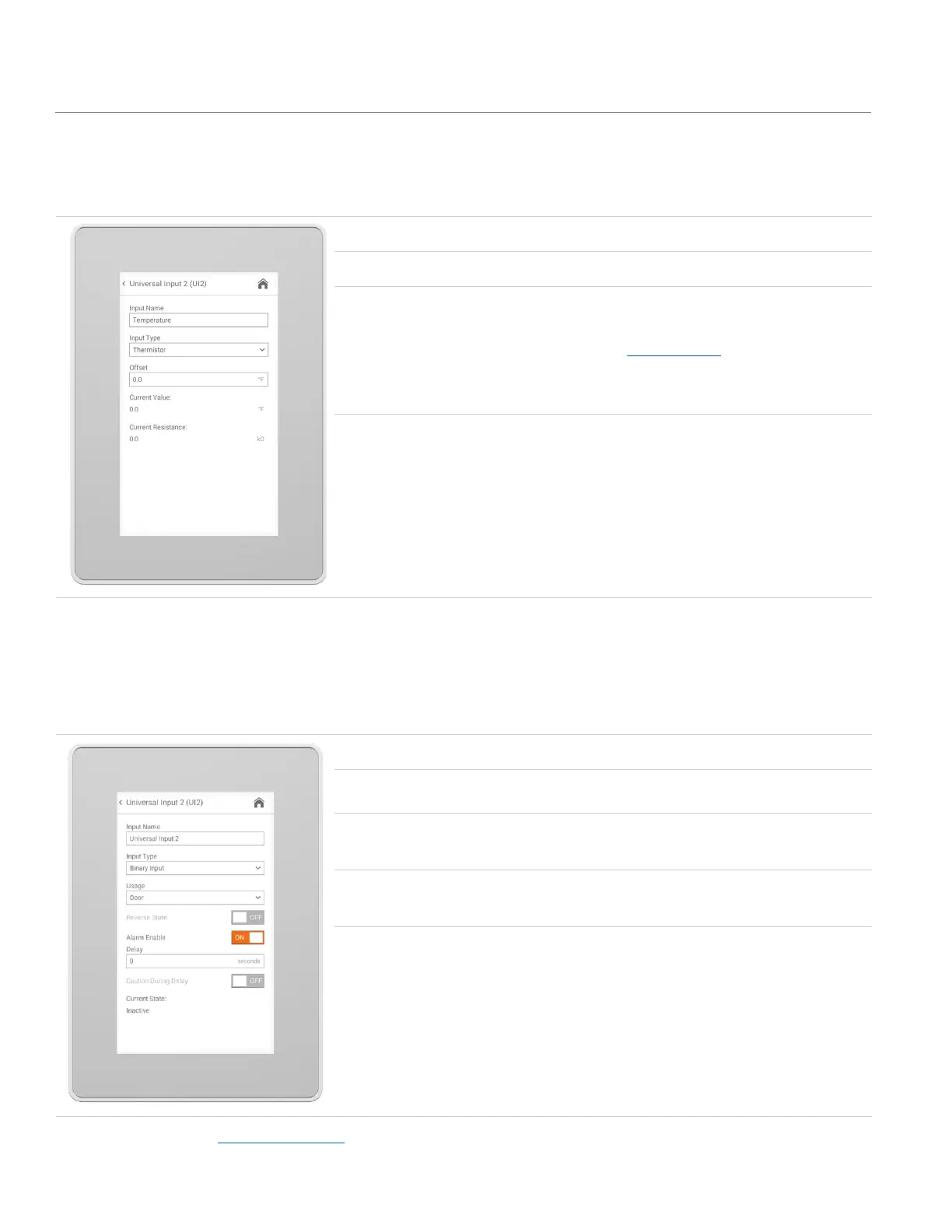

ThermistorTemperature
Temperature inputs are used to monitor temperature readings such as room temperature or discharge air temperature.
The following settings are available if the Thermistor Usage is Temperature.
Menu Items
Available
Options/Range
Default
Value
Description
Offset
-50 to 50˚F
(-28 to 28˚C)
0˚F (0˚C)
Applies a fixed offset to the temperature
reading.
Current Value
Read only value
The current temperature reading with offset
applied. This reading matches the value
displayed on the Home Screen when set as
one of the Monitored Devices in the
Monitored Rooms menu.
NOTE: The thermistor table used to calculate
the temperature value is for a 10k Type 2
thermistor.
Current
Resistance
Read only value
The current resistance being read by
LUME20 from the thermistor input.
Binary InputDoor
Door Contact Switches are used for monitoring whether a door is open or closed. When Caution During Delay is enabled, door
monitoring prevents nuisance alarming.
The following settings are available if the Usage is Door.
Menu Items
Available
Options/Range
Default
Value
Description
Reverse State
On/Off
Off
Reverse when the physical state of the
Universal Input sets the current state to
Active.
Alarm Enable
Delay
On
Off
0 to 100,000 seconds
On
60 seconds
When ‘On’ and the delay has elapsed, a
Door Open Alarm will activate.
Caution
During Delay
On
Off
On
When ‘On’, a Door Open Caution will
activate during the delay period and
supress any alarms until the delay has
elapsed.
Current State
Read only value
The current state (Active/Inactive) of
the input with reverse state applied.
