LUME20 - MANUAL
35 | LUME20 – Manual | AntecControls.com

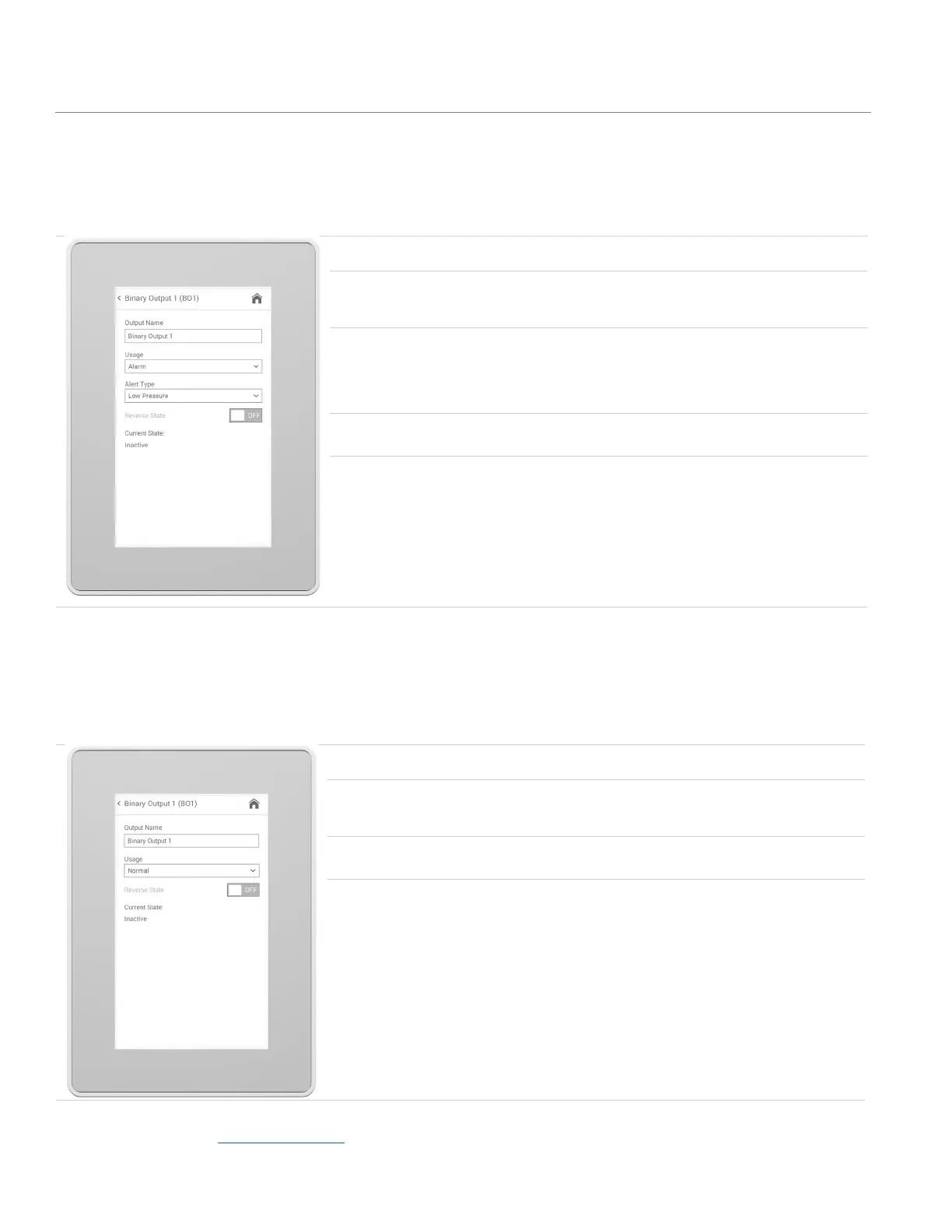

Binary Output – Alarm/Caution
Alarm/Caution outputs will activate the binary output when the selected Alarm/Caution type is triggered. This may be used for a
hard-wired signal to a third-party alarming system or to trigger a visual indication in the room.
The following settings are available if the Usage is Alarm/Caution.
Menu Items
Available
Options/Range
Default Value
Description
Output Name
19 Characters
Alarm Output/
Caution Output
Adjust the output name.
NOTE: This name will display in the
BACnet object name.
Alert Type
Low Pressure
High Pressure
Door Open
Binary Input
Any Alarm/Any
Caution
Low Pressure
Sets the type of alarm/caution that will
activate the binary output. When Any
Alarm/Any Caution is selected, all types
of alarm/caution will activate the binary
output.
Reverse State
On
Off
Off
Reverse when the physical state of the
Universal Input sets the current state to
Active.
Current State
Read only value
The current state (Active/Inactive) of
the output with reverse state applied.
Binary Output – Normal
Normal outputs will activate the binary output when the there are no alarms and no cautions active. This may be used for a
hard-wired signal to a third-party alarming system or to trigger a visual indication in the room.
The following settings are available if the Usage is Normal.
Menu Items
Available
Options/Range
Default Value
Description
Output Name
19 Characters
Normal Output
Adjust the output name.
NOTE: This name will display in the
BACnet object name.
Reverse State
On
Off
Off
Reverse when the physical state of the
Universal Input sets the current state to
Active.
Current State
Read only value
The current state (Active/Inactive) of
the output with reverse state applied.
