LUME20 - MANUAL
36 | LUME20 – Manual | AntecControls.com

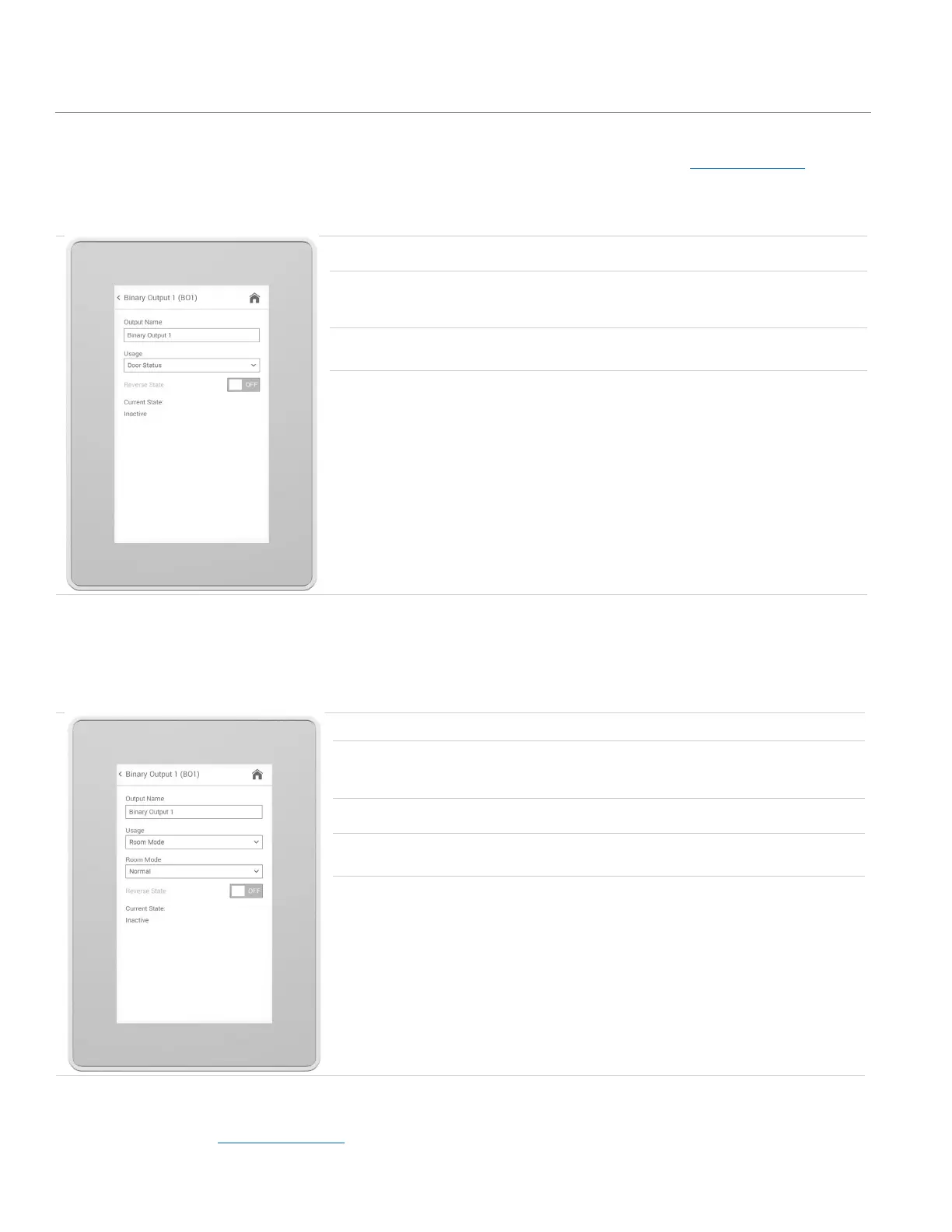

Binary Output – Door Status
Door Status outputs will activate the binary output when the current state of the door is open. A Door Binary Input must be
configured for LUME20 to detect the door status.
The following settings are available if the Usage is Door Status.
Menu Items
Available
Options/Range
Default Value
Description
Output Name
19 Characters
Normal Output
Adjust the output name.
NOTE: This name will display in the
BACnet object name.
Reverse State
On
Off
Off
Reverse when the physical state of the
Universal Input sets the current state to
Active.
Current State
Read only value
The current state (Active/Inactive) of
the output with reverse state applied.
Binary Output – Room Mode
Room Mode outputs will activate the binary output when LUME20 is in the selected room mode.
The following settings are available if the Usage is Room Mode.
Menu Items
Available
Options/Range
Default Value
Description
Output Name
19 Characters
Mode Output
Adjust the output name.
NOTE: This name will display in the
BACnet object name.
Room Mode
All configured
room modes
Mode 2 (Setback)
Set the room mode that activates the
binary output.
Reverse State
On
Off
Off
Reverse when the physical state of the
Universal Input sets the current state
to Active.
Current State
Read only value
The current state (Active/Inactive) of
the output with reverse state applied.
