4.1.8.5【F6】MEASURE and 【F7】ORIGN
Machine back to the origin can be divided into "measuring the origin" and "reset" two parts.
Machine back to the origin, is the process of return machine mechanical zero point, back
to zero biaxial running at the same time, independently back to zero. Reset (before back to zero):
(a) Mechanical origin should choose NPN hall proximity switch (normally open, the signal
is low), and install in a suitable position.
(b) Set parameters (see parameter F3) reset speed - see "parameters" - "speed", reset when
the feed rate, the unit is mm/min. reset direction - see [parameter] - [system], 0 - the shaft no
longer, 1 – reverse, 1 – positive.

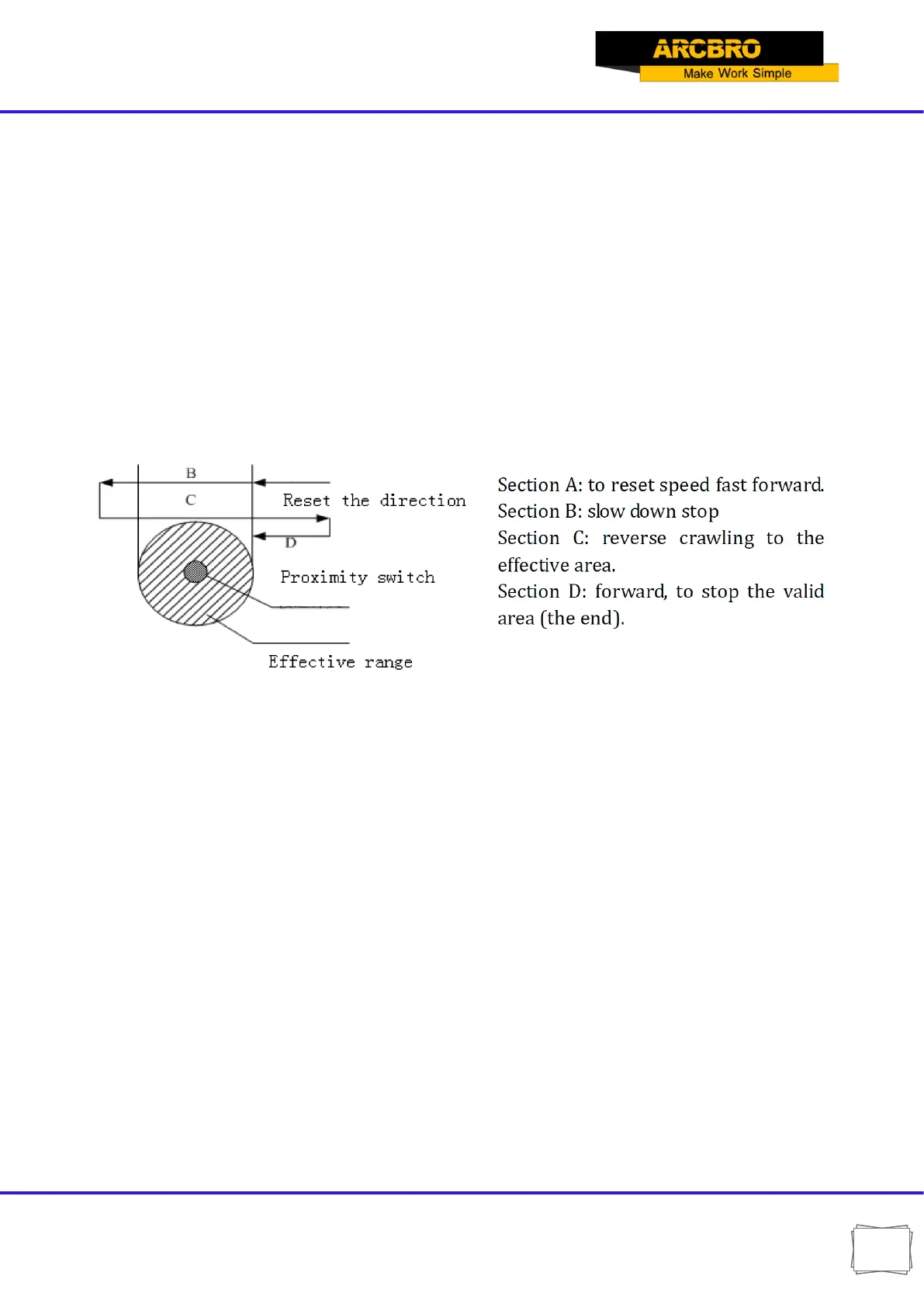

(c)Machine back to zero point process is as follows:
(d) To measure the origin, to determine the mechanical origin of the work piece coordinate
system. Methods:
Cutting torch will be moved to the reference point in the work piece coordinate system(a bit).
set the current work piece coordinates.
[manual] - [supplementary] –[origin] measurement system to complete the mechanical origin,
and the current coordinate values into the origin of the machine tool value, parameter Settings
【system】option in the origin of the machine tool change accordingly.
(e) Reset - cutting back mechanical zero, and set up the work piece coordinate system.
Method: [manual] (or [automatic]) – auxiliary – reset, origin system to complete the mechanical
action, and the origin of the machine tool is set to the current coordinates of the machine tool
coordinate set to 0.
【note】: If two axles in the parameter reset direction from 0, namely no reset action, execute
reset after operation, the current value is equal to the origin of the machine tool. Machine tool
coordinate is equal to zero, this is important, because the program limit is machine tool
coordinate as a benchmark. Cutting torch will be moved to the first mechanical origin (the origin
