71
23
Output
Output Corner (OH1) normally closed.
11
Output Cutting oxygen (OH2) normally closed.
24V
24
Output +24V/1A.
24V
12
Output
Output +24V/1A power supply.
24V-
25
Output 24V power supply ground.
24V-
13
Output 24V power supply ground.

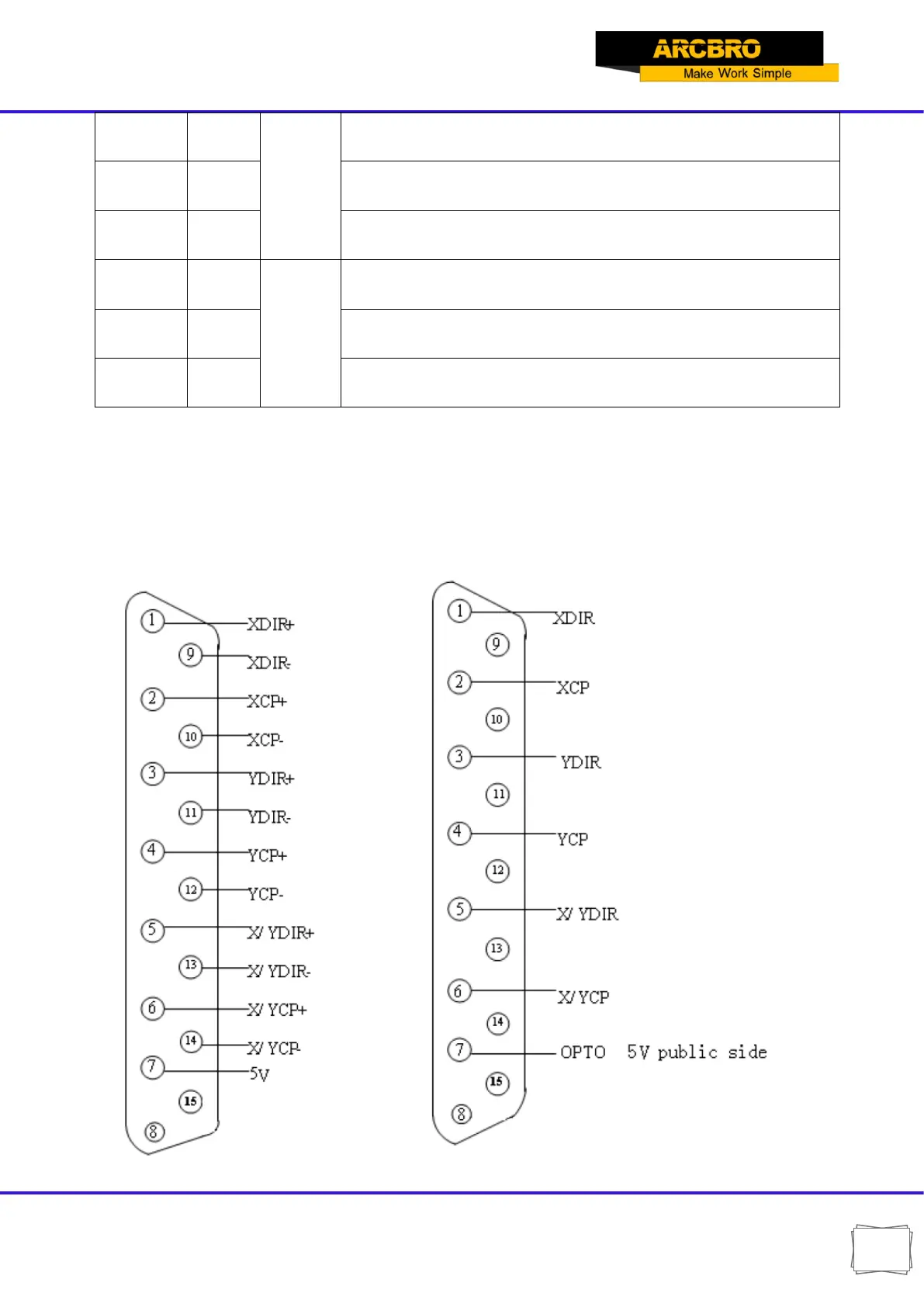

10.4. 15 core motor port definitions
1) Differential signal (2) a total of anode connection
