Reference point ---- It is defined as the machining origin of program and established automatically when a
program is run(G92). Unit: mm(or inch).
DEILL OFFSETS---The offset distance of the punching or marking gun relative to the cutting gun.
CLEARANCE--- Due to reverse mechanical backlash, the system will compensate the backlash at direction
change. The backlash value is obtained by actual measurement in mm or inch. Generally, reverse backlash
is not recommended.
DIR-ORIGIN---- Return to the machine zero running direction, 0-no reset 1-positive direction reset 2-negative
direction reset..
Soft LIMIT+/SOFT LIMIT- ----The system will give an alarm when program coordinate exceeds the set soft
positive/negative limit. If it will not be used, the parameter should be set higher than actual values in mm or
inch.
7.2.3 Flame Cutting Parameters
In the SETUP submenu, press [F3] key to enter flame parameters setting window, as shown in Fig. 7.4.

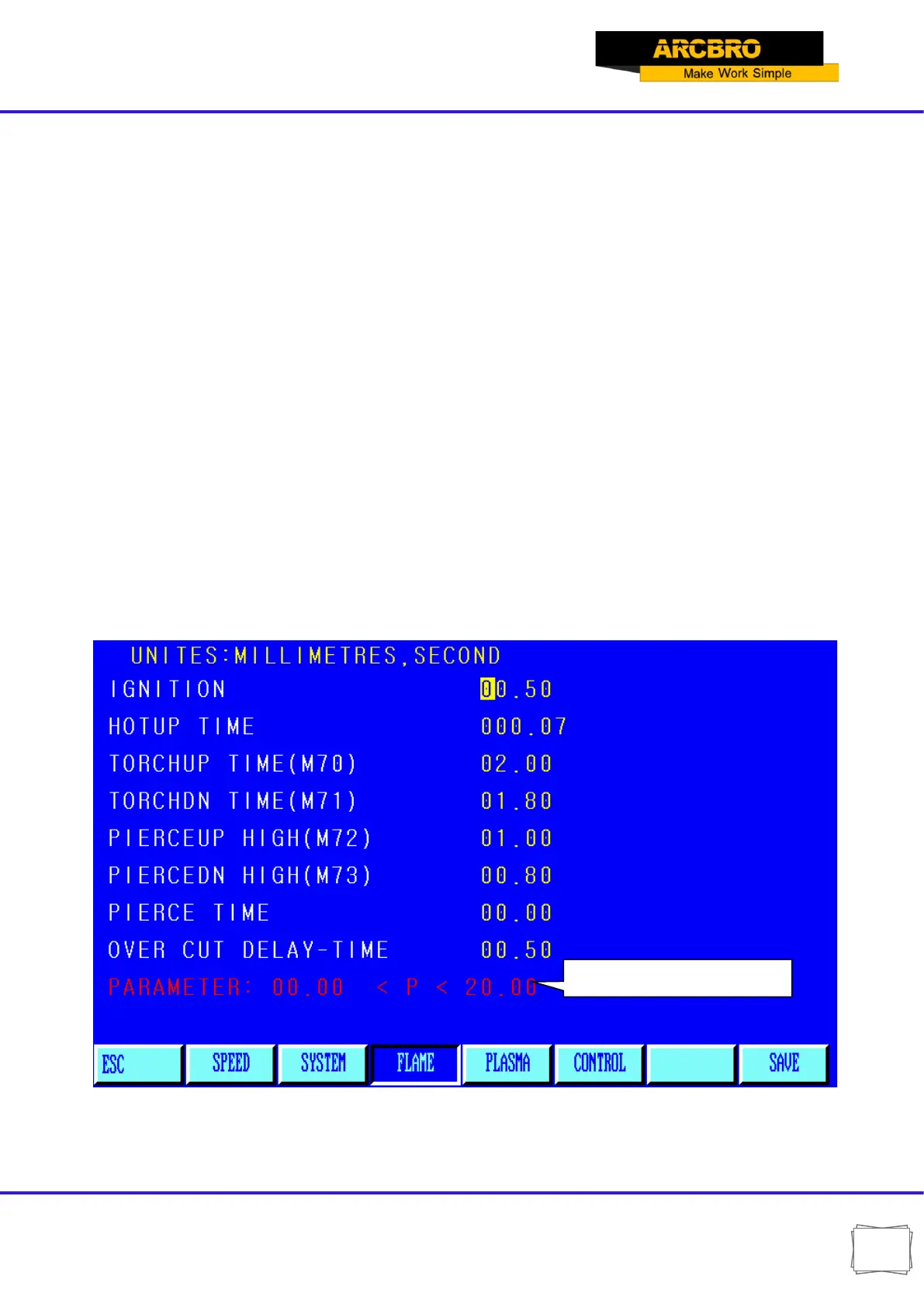

Fig. 7.4 Flame parameters setting
