LEAVE PREHEATS ON (0/1)--- After processing, the system does not close the output-select; 0
is closed, 1 is not closed;
7.2.4 Plasma Parameters Setting
In the SETUP submenu, press [F4] key to enter plasma parameters setting window, as shown in Fig. 7.5.

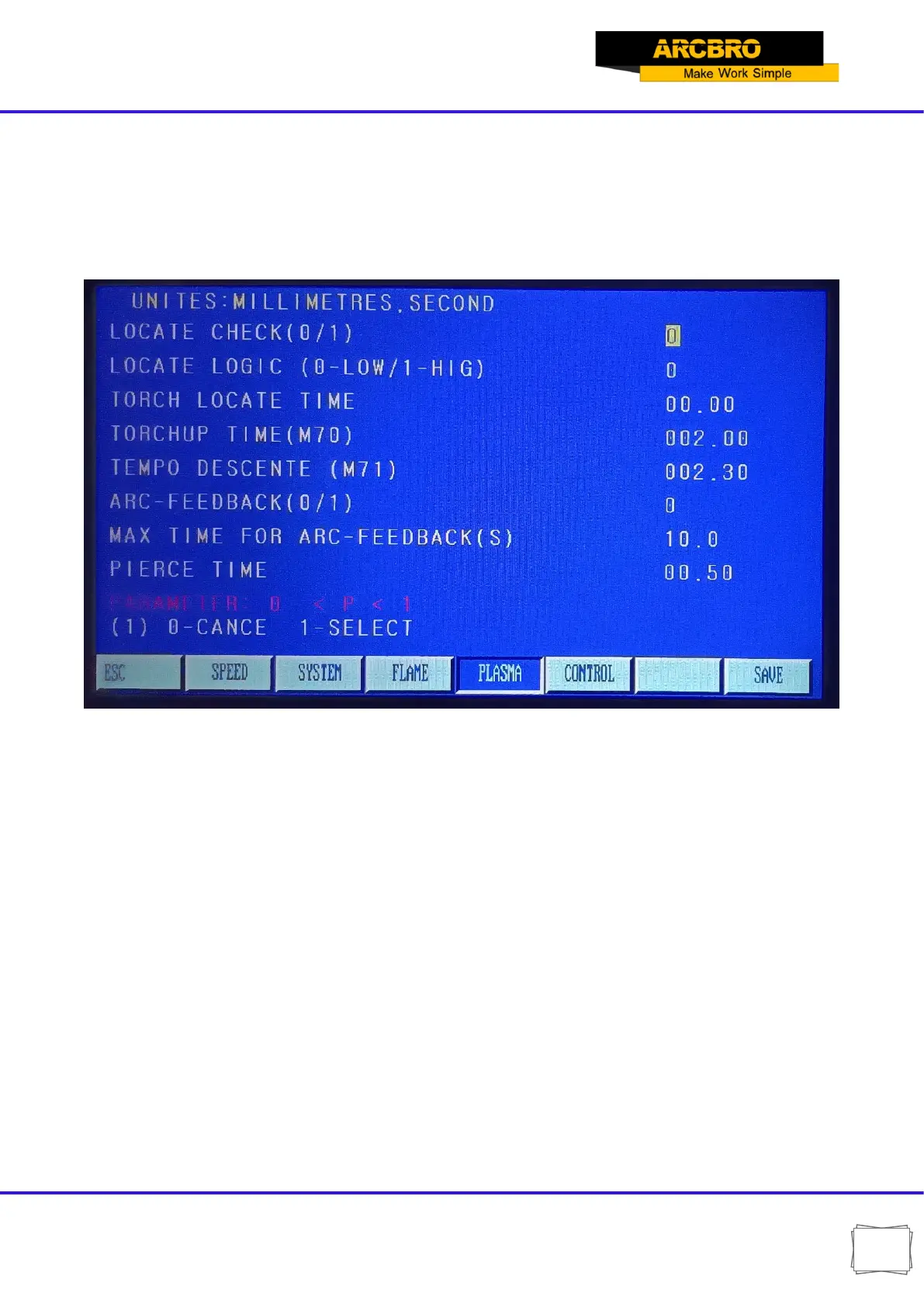

Fig.7.5 Plasma Parameters Setting
LOCATE CHECK (0/1)---When the initial positioning is required by the system, select this.
LOCATE LOGIC (0-LOW/1-HIG)---When the positioning switch is normally open (high effective),
select 0, and normally closed (low effective) select 1.
TORCH LOCATE TIME---When the plasma torch is positioned, the torch will down and when it
hits the lower limit, the torch will stop. Then, the torch rises, through the torch positioning delay,
the torch stops rising (see M75 instruction), unit: second;
TORCHUP TIME(M70)---Torch rising time. Delay time when executing M70 instruction (see 6.4M
auxiliary instruction), unit: second. Note: For convenience, in plasma and flame mode, the torch
up/down delay is separate;
TEMPO DESCENTE(M71)---Torch falling time. Delay time when executing M71 instruction (see
6.4M auxiliary instruction), same as above, unit: second;
ARC-FEEDBACK(0/1)---When plasma operation, whether arc voltage feedback.
Setting 1: Need arc voltage feedback function; Need to detect arc voltage feedback when
starting an arc, The arc voltage feedback needs to be monitored during operation. When the
