This command makes the torch cut to a designated position along a straight line. As
machining movement command, it allows uniaxial or biaxial linear interpolation movement. The
feed speed is designated by F command.
Format: G01 X[U]n Z[W]n [Fn]
or G01 PPn [Fn]
 6. G02/G03: Circular Cutting Commands
This command is used for circular interpolation, including clockwise circular cutting command
G02 and counter clockwise circular cutting command G03. See the figure below for the setting
of directions.
Format：G02[03] X[U]n Y[V]n In Jn [Fn] or G02[03] X[U]n Y[V]n Rn [Fn]
G02[03]PPn In Kn [Fn] or G02[03] PPn Rn [Fn]

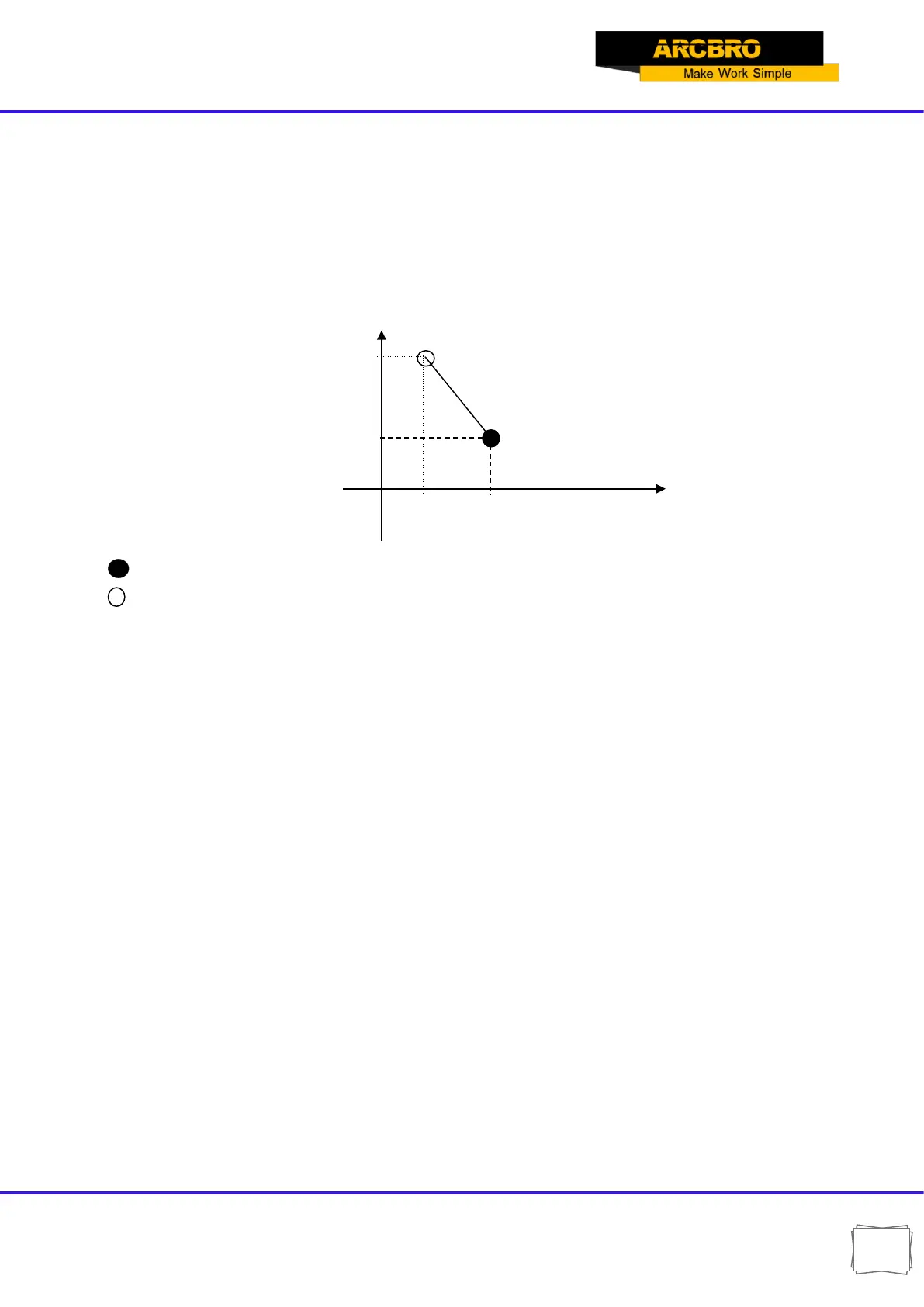

+Y
+235
+95
+80
+200
+X
EG：G92 X0 Y0
G00 X200 Y95
G01 X80 Y235
(OR G01 U-120 V145)
M02
Current Torch Position
Expected Torch Position
