7.3 Block Diagram
An overview of the Portenta Hat Carrier high-level architecture is illustrated in Figure 3.

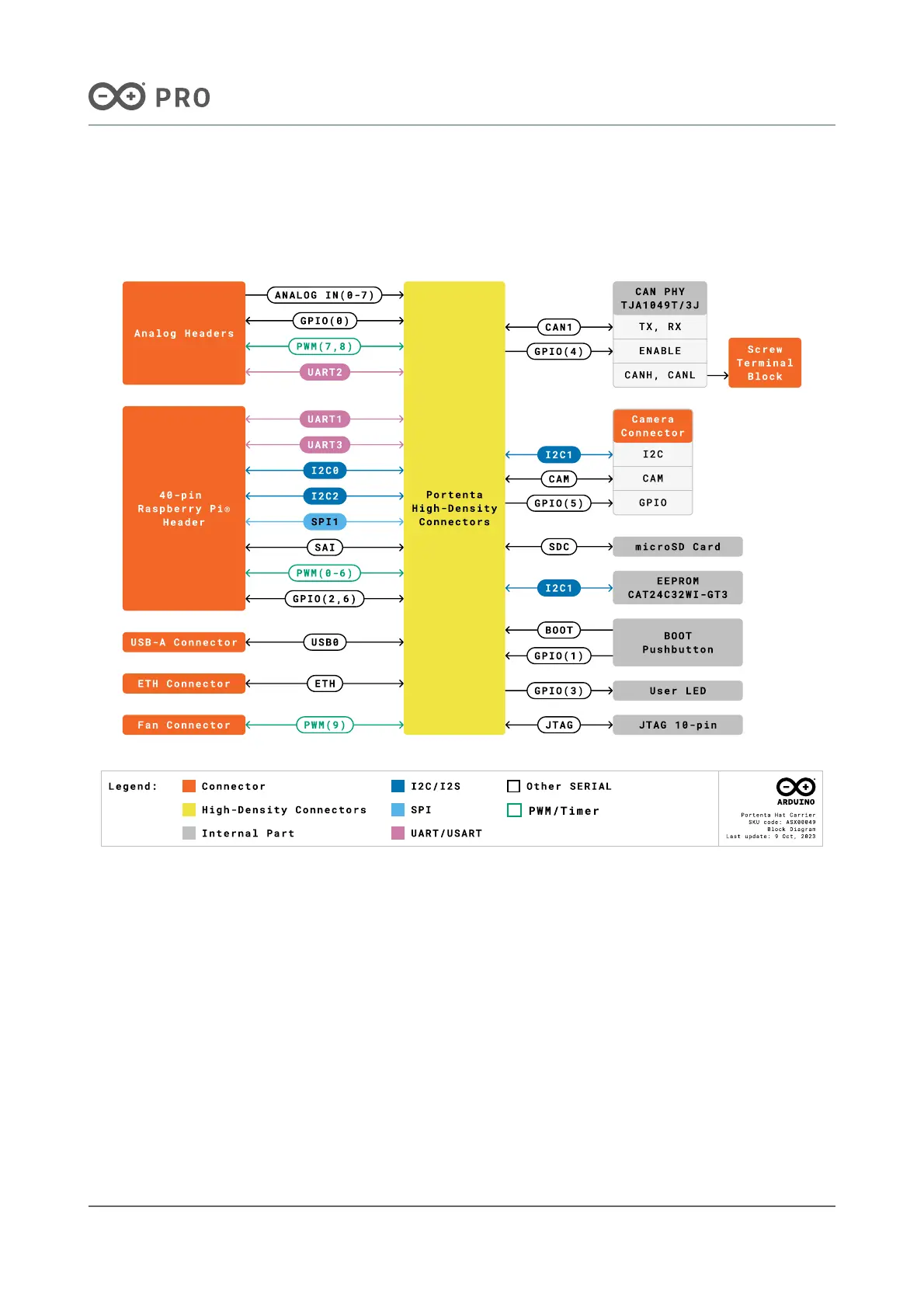

Figure 3. Portenta Hat Carrier block diagram
