Arduino® Portenta Hat Carrier
9 / 34 Arduino® Portenta Hat Carrier Modified: 25/10/2023
7 Functional Overview
7.1 Pinout
The Portent Hat Carrier pinout is shown in Figure 2.

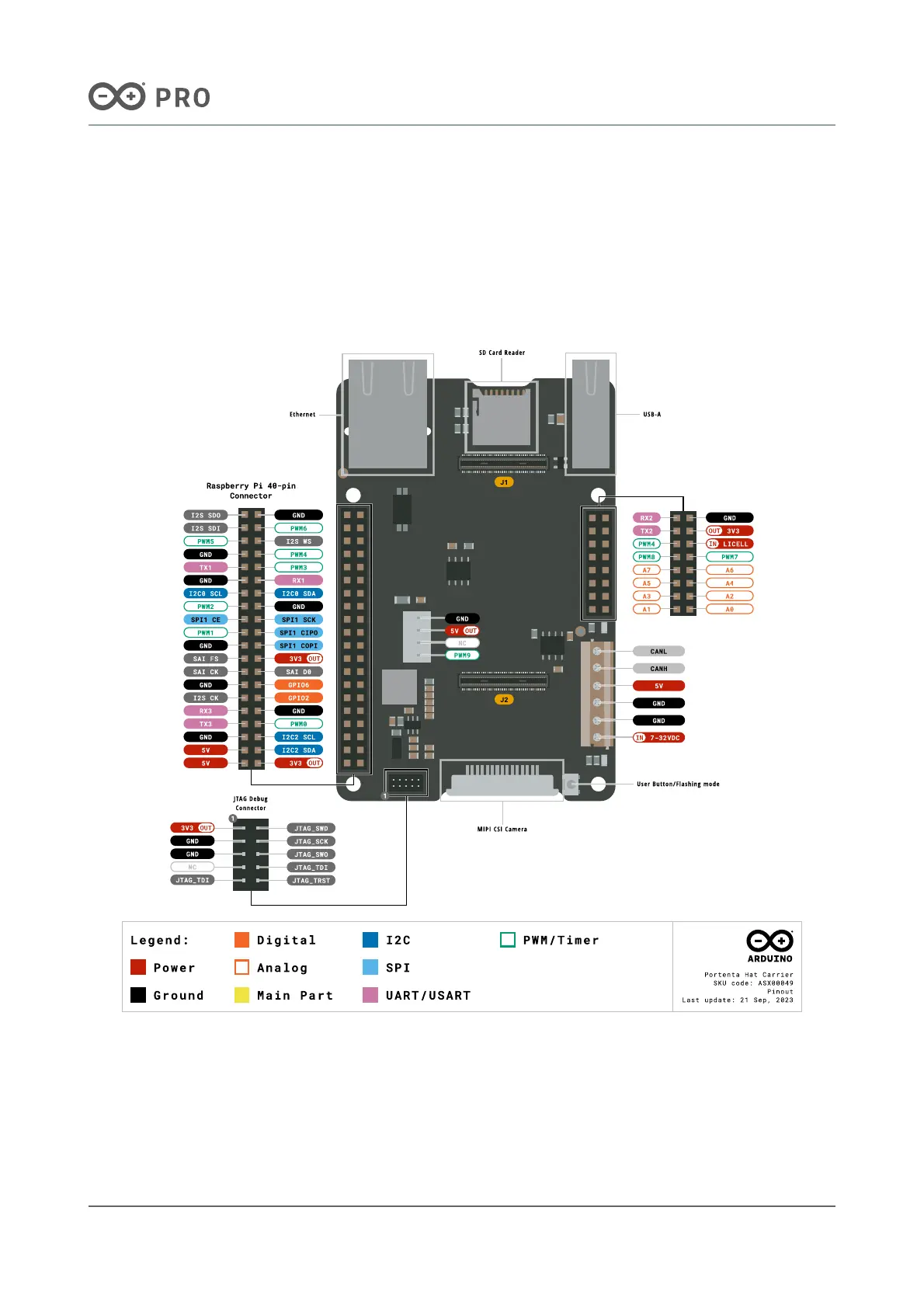

Figure 2. Portenta Hat Carrier pinout
