3 Operation
(continued)
C232-302-401/402/403/404-603 / C232/EN M/A23 3-141
For circuit breakers, the open command can be linked to the protection trip signal. The
close command can be linked to the close command of the protection functions. The
bay type defines which of the switchgear units are circuit breakers. The trip or close
commands of the protection functions are executed directly without a check on the
interlocking equations.

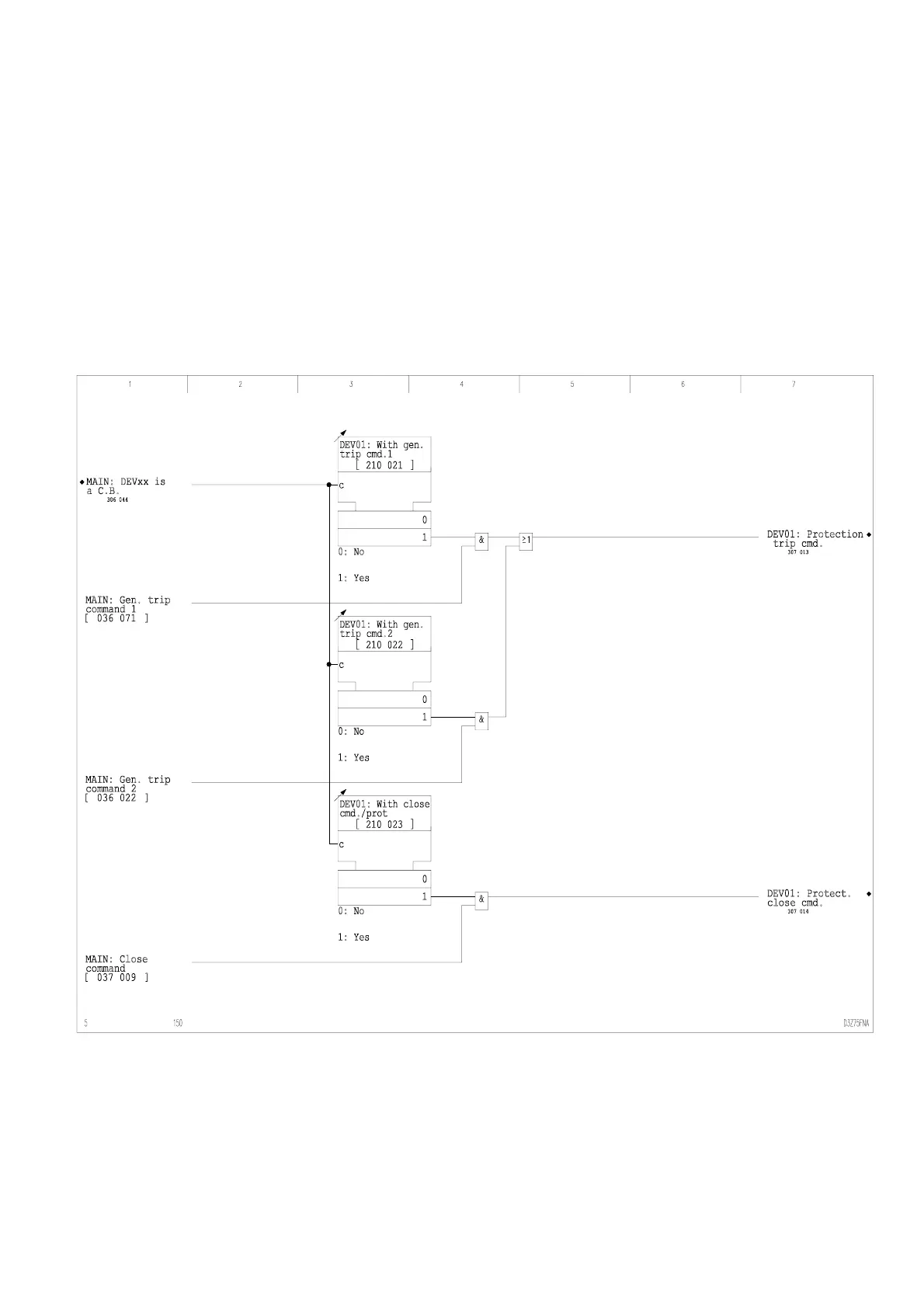

3-109 Linking to the protection commands
