Areva MiCOM C232 - Page 65

6 Local Control Panel
(continued)
C232-302-401/402/403/404-603 / C232/EN M/A23 6-9
X YYY 10:33:22
SS1
SS2
Q1 Q2
Q0
Q8
Locked
Remote
Q9
1088 A
Curr. IP,max prim.

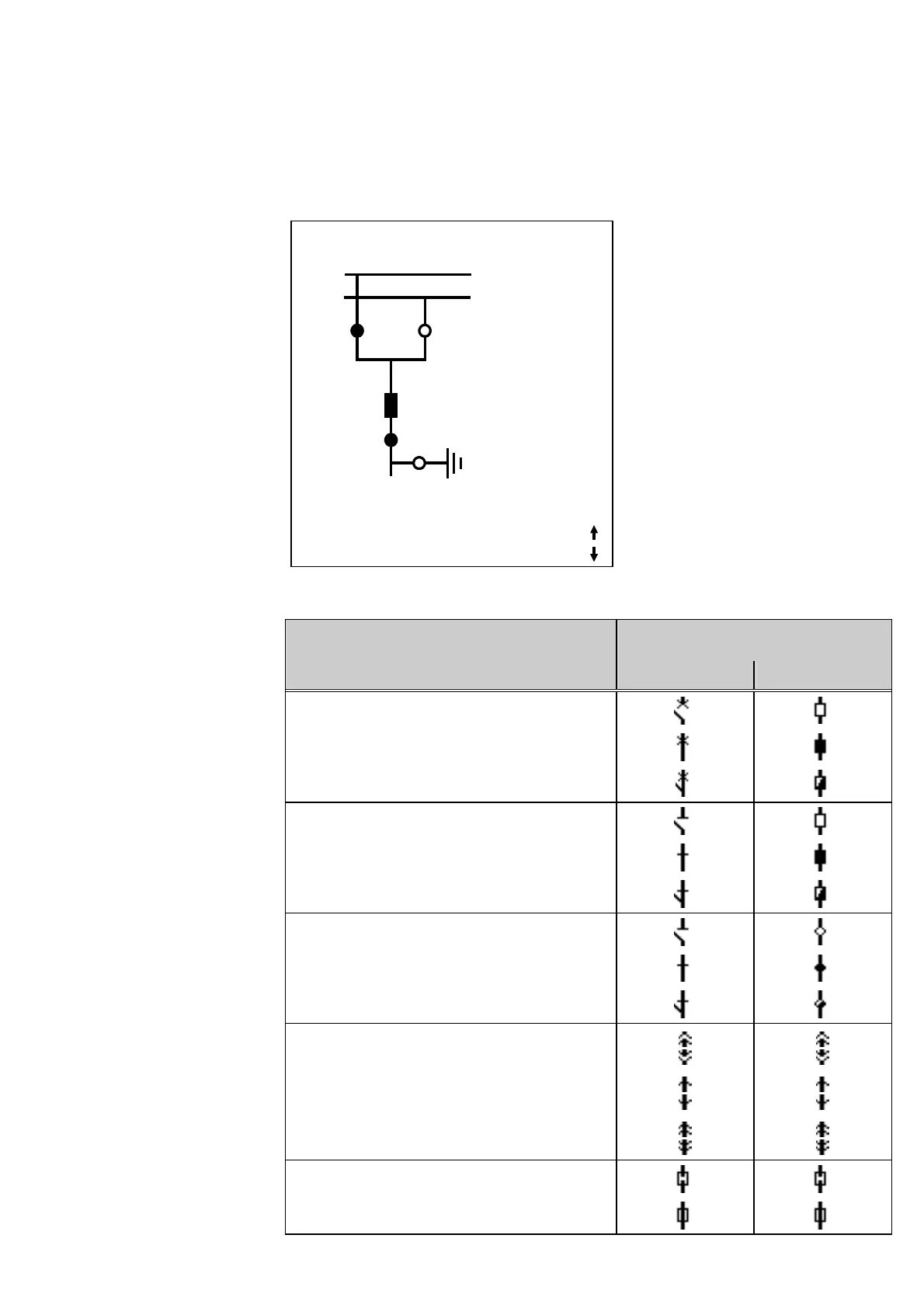

6-3 Example for a Bay Panel
Representation of the external
devices with
External device State character set 1 character set 2
Circuit breaker ‘Open’
‘Closed’
‘Off-end’,’Faulty’
Switch disconnector ‘Open’
‘Closed’
‘Off-end’,’Faulty’
Disconnector ‘Open’
‘Closed’
‘Off-end’,’Faulty’
Switch truck ‘Open’
‘Closed’
‘Off-end’,’Faulty’
Fuse unit ‘Open’
‘Closed’
