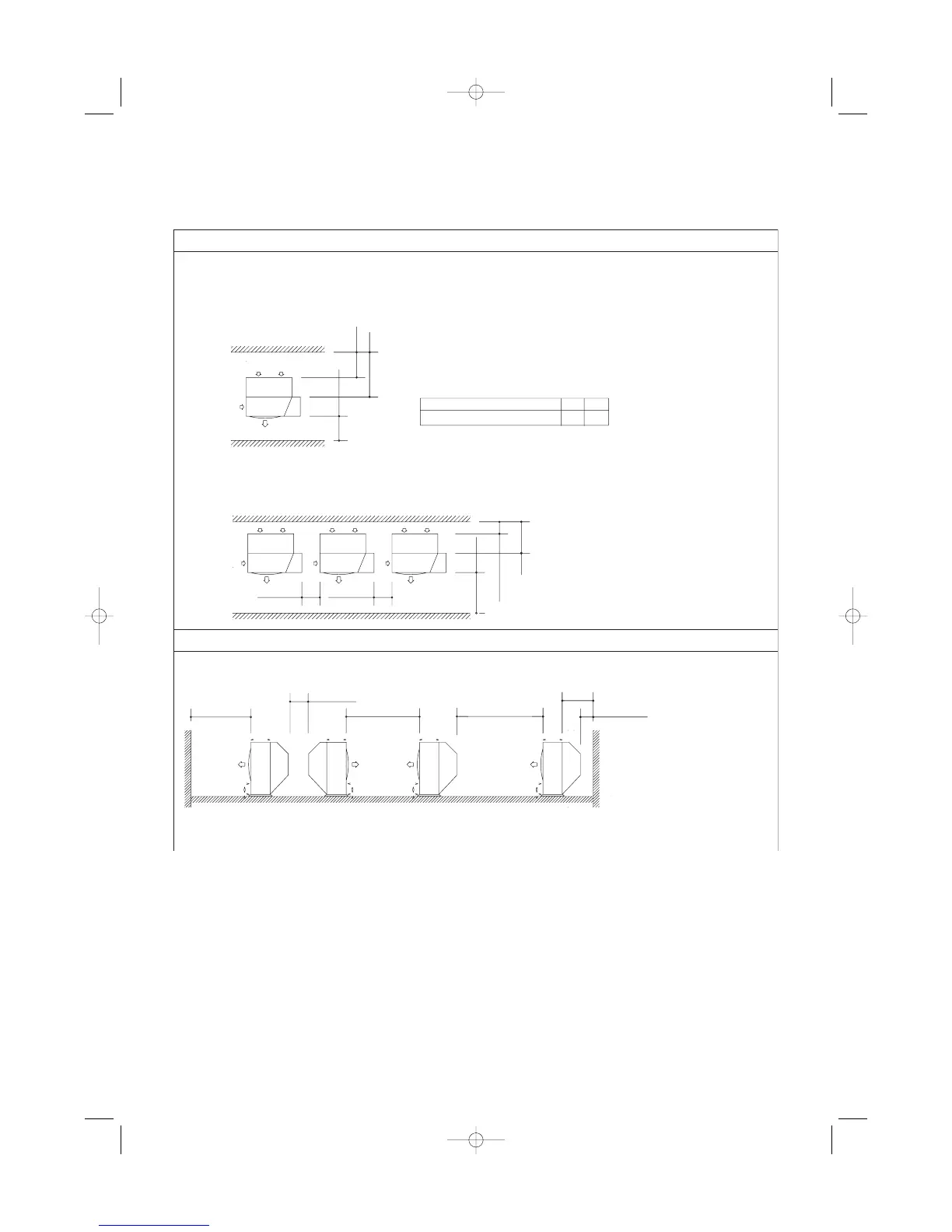

Reference diagram for snow-proof vents – 2
Space requirements for setting – (2)
AES04/05/06MMIH
Outdoor unit
AES04/05/06MMIH
OP
1000 150
Min. 300
Min. 300
Min. 1000 Min. 200
Min. 1500 Min. 2000
0
Min. 300
Min. 1000
Min. 200
Q
Q
Min. P
Min. O
(1) Single-unit installation
(2) Obstacles on both sides
[Installation in front-rear rows]
[Obstacles to the front and rear of unit]
• The top and both sides must remain open. Either the obstacle to the front or
the obstacle to the rear must be no taller than the height of the outdoor unit.
Dimension Q
If a snow protection duct is attached after the unit is
installed, verify that dimension Q is 500 mm or more.
Dimension Q
If a snow protection duct is
attached after the unit is
installed, verify that dimension
Q is 500 mm or more.
• The top and both sides must remain open. Either the obstacle to the front or the obstacle
to the rear must be no taller than the height of the outdoor unit.


Unit: mm
