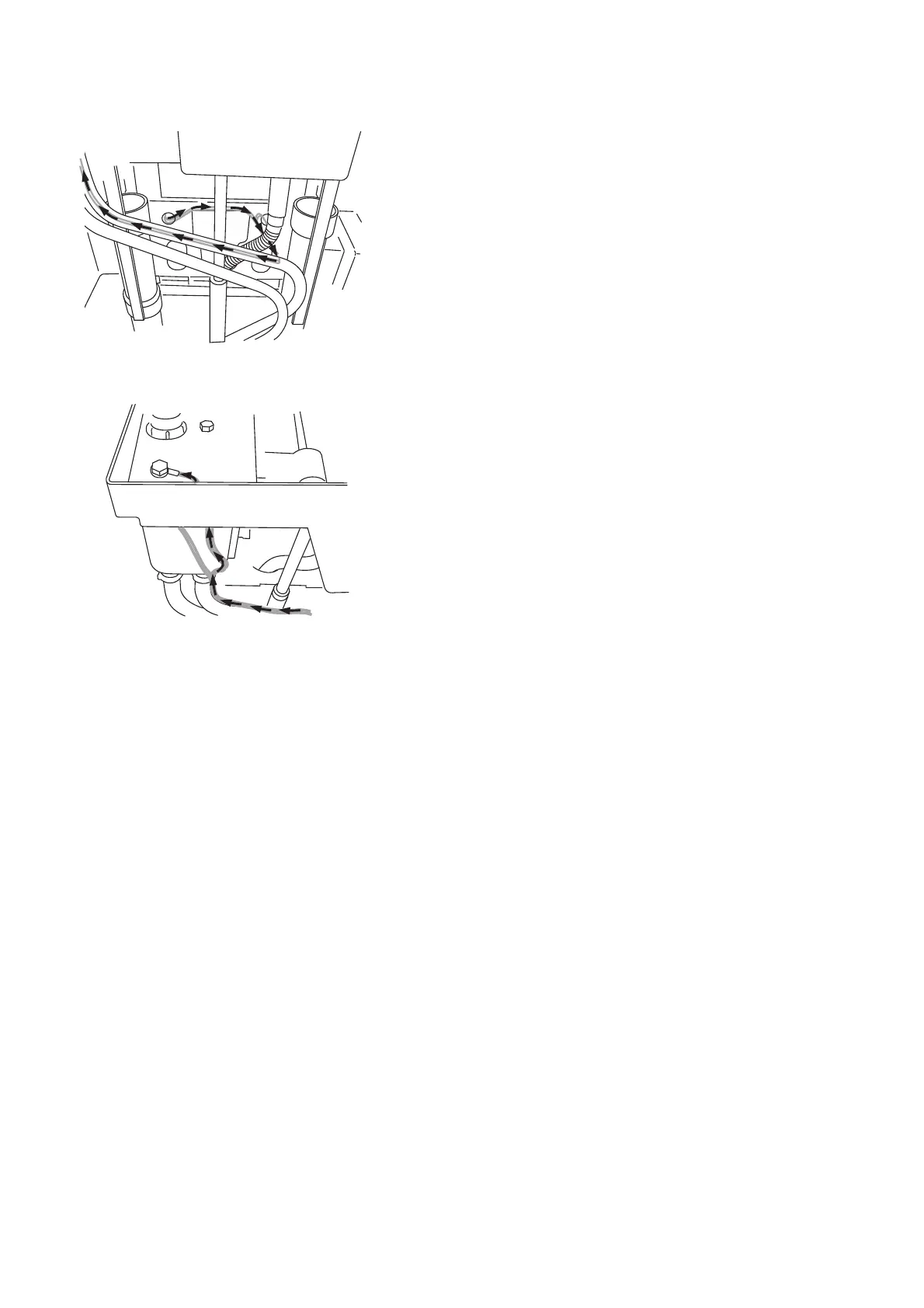

4 Run the earth cabling along the existing cable path
secured to the PEX piping cold water line. (See fig. 4)
5 Connect the terminals to the common ground connection
point on the mixer. (See fig. 5)
6 With the cables tied into position and power returned to
panel, raise and lower the tub to end positions checking
that the cabling does not catch or pull (ie, cables can
move freely without obstruction).
7 Further on the assembly process once water supply and
drainage is in place, fill the tub over the LED:s and check
for water leaks. (Refer to Maintenance & Repair manual
for removal/adjustments to S&V components.)
