Arjo 2000 - Calibration of the Thermostat Mixer P220

31

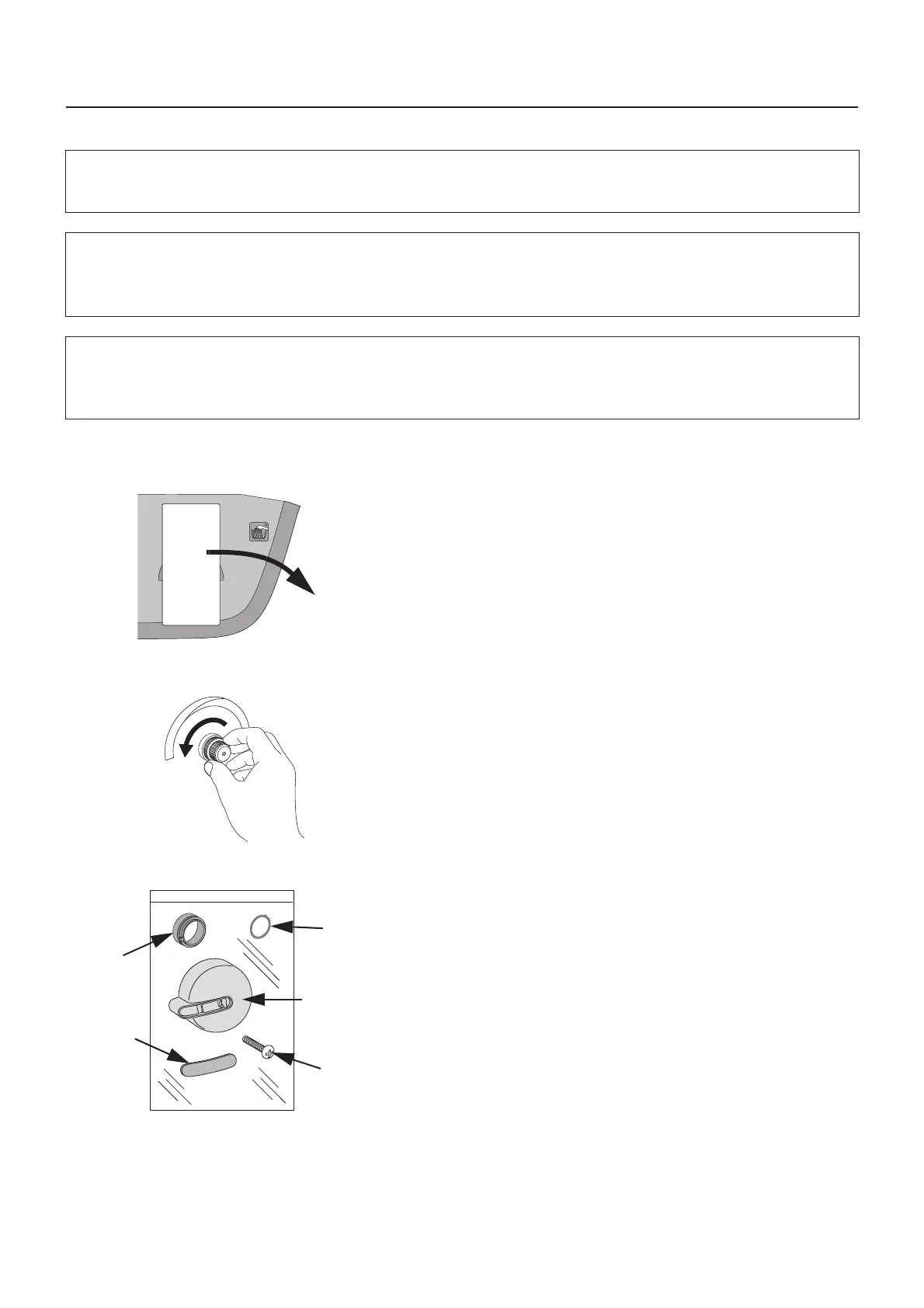

Calibration of the thermostat mixer P220
•
•
•
When the installation is completed the thermostat mixer
must be calibrated as follows:
1 Remove the calibration label fastened on the control
panel. (See fig. 1)
2 Activate the resident shower. Turn the plastic part coun-
terclockwise until the external calibrated thermometer
shows 41°C (106°F). (See fig. 2)
3 From the assembly kit, take out the plastic bag with knob
for water temperature adjustment. (See fig. 3)
WARNING
Failure to calibrate the thermostat mixer may cause scalding.
WARNING
Make sure that the HOT water supply has a stable temperature and represents the
maximum hot water temperature available before the calibration procedure starts.
WARNING
Always use a calibrated thermometer to check water temperature against the panel display
value.
WARNING!
Do not use before calibration.
FR
AVERTISSEMENT!
Ne pas utiliser avant calibration.
DE
WARNUNG!
Vor der Kalibrierung nicht benutzen.
NL
WAARSCHUWING!
Niet gebruiken vóór kalibreren.
IT
AVVERTENZA!
Non utilizzare prima della taratura.
ES
ADVERTENCIA!
No utilizar antes de la calibración.
PL
UWAGA!
Nie używać przed przeprowadzeniem kalibracji.
8418722 A
Knob for
water
temperature
adjustment
Screw
Plug
o-ring
Stop ring
Fig. 1
Fig. 2
Fig. 3
