Arjo 2000 - Site Requirement

25
Site requirement
• First check that the electrical supply corre-
sponds with the information on the label on
the backside of the panel.
• The unit must be permanently connected.
• The unit must be continuously powered and
connected to separate fuse with ground fault
circuit interrupter.
• The unit must have a separate emergency
switch placed at an easily accessible position
near the unit.
The unit shall be electrically connected with the fol-
lowing equipment (not included in delivery):
• Separate fuse (see above).
• Ground fault circuit interrupter (10mA)
• Safety switch, according to regulations and
local codes
• Emergency switch
• Mains cable (3x16AWG / 3x1.5 mm
2
)
•

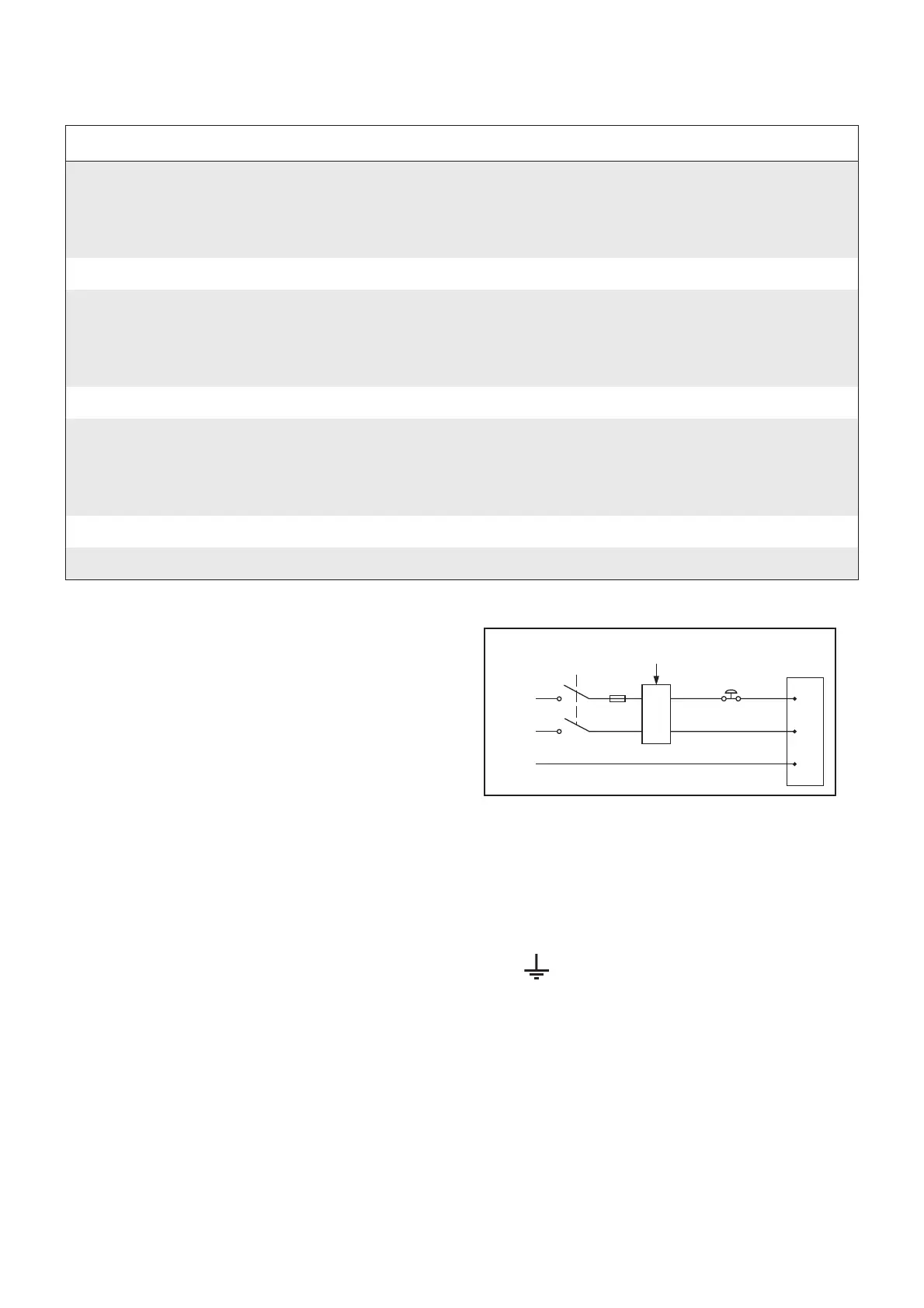

Connect the wires as described below:
• Neutral to the blue wire (N)
• Phase to the brown wire (L)
• Protective earth to the yellow/green wire (PE)
The unit must be permanently connected to the
mains when used in USA and Canada.
All electrical installations must comply with the
US National Electrical Code and the Canadian
Electrical Code respectively.
ELECTRICAL SUPPLY
Voltage 230/240V (Europe)
120V (North America)
100V (Japan)
220V (Korea)
230 V (Saudi Arabia)
Number of phases Single phase AC
Frequency, 50Hz (Europe)
60Hz(North America)
50/60Hz (Japan)
60Hz (Korea)
60 Hz (Saudi Arabia)
Power consumption (max.) 1100 VA
Fuse 6 A (Europe)
10 A (North America)
10 A (Japan)
6 A (Korea)
6 A (Saudi Arabia)
Protective earth Yes
Potential equalisation Yes
L
N
PE
Fuse
Live
Neutral
PE
Emergency stop
Main switch
Bathtub
Ground fault
circuit interrupter
