Arjo 2000 - Mounting of Bathtub

16

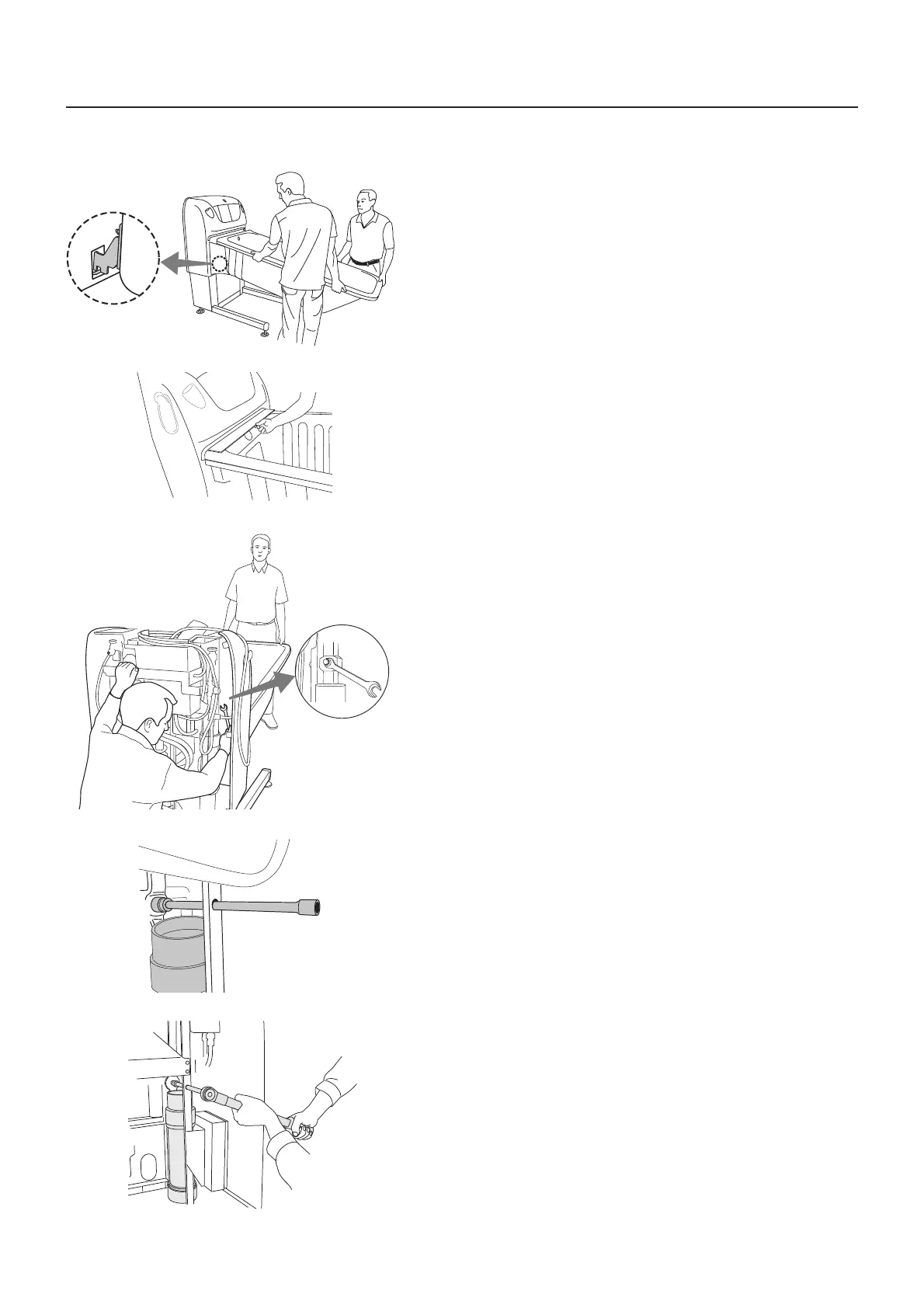

Mounting of bathtub
1 Place the tub in an almost horizontal position. Locate the
two tub hooks into the pillar clamps. (See fig. 1)
2 Cut a section of cardboard from the packaging, place it
between the tub and panel to prevent the seal from getting
punched between the tub and panel. (See fig. 2)
(Not applicable for assembly of the Primo Ferro bath-
tub.)
3 Raise the outer end of the tub to horizontal position, and
fasten it with the 2 bolts accessible from the rear side of
the panel (taped to the clamp). (See fig. 3)
For the steps 4 and 5 the following tools are needed:
• Torque wrench
• 19 mm socket with 3/8” grip
• 3/8” extension
4 Raise the panel to get free access for the torque wrench
extension. (See fig. 4)
5 Tighten the screws to a torque of 76Nm. (See fig. 5)
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
