Assembly of drainage

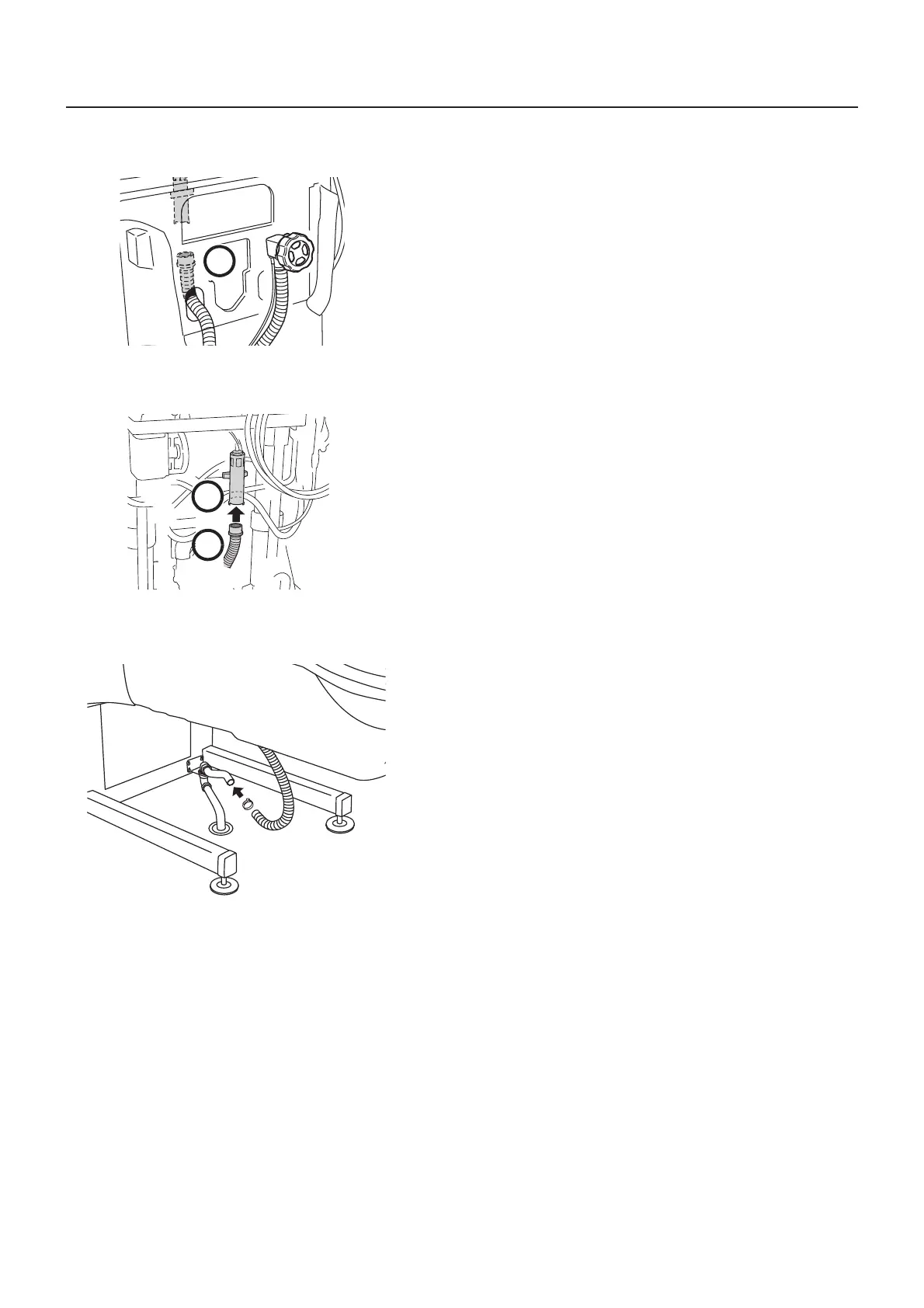

Insert the drain hose end (A) through the hole in the lower left
part of the panel. (See fig. 1)
1 From the rear side of the panel, connect the drain hose
section (A) to the air gap drain (B). (See fig. 2)
2 Connect the drain hose to the drain pipe. (See fig. 3)
Tighten with the clamp.
A
A
B
Fig. 1
Fig. 2
Fig. 3
