Unpacking and assembly

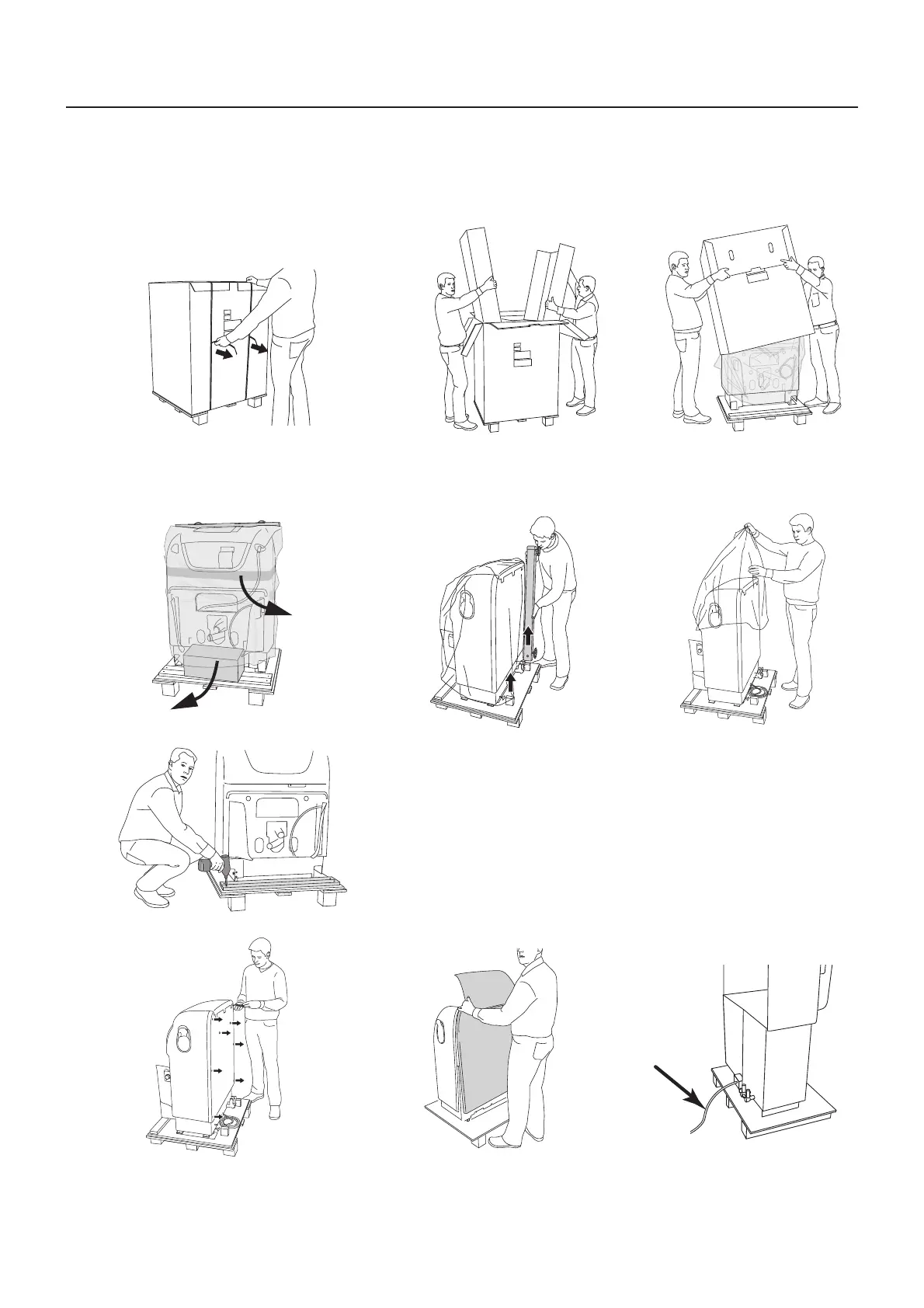

1 Remove the two transport straps by pulling their ends.
Remove the cardboard covers around the panel.
(See fig. 1 - 3)
2 Remove the tape, boxes, both legs and the plastic cover.
(See fig. 4 - 6)
3 Remove the screws holding the two wooden boards at the
front on the pallet.
Save the boards for use further in the assembly process.
(See fig. 7)
4 Undo the back cover and remove it together with the lid.
(6 screws, 2 nuts and 2 washers). (See fig. 8 & 9)
5 Connect temporarily to power supply. (See fig. 10)
(See chapter “Electrical installation” )
Fig. 1
Fig. 4
Fig. 7
Fig. 8
Fig. 3
Fig. 6Fig. 5
Fig. 10Fig. 9
Fig. 2
