Arjo 2000 - Page 8

8

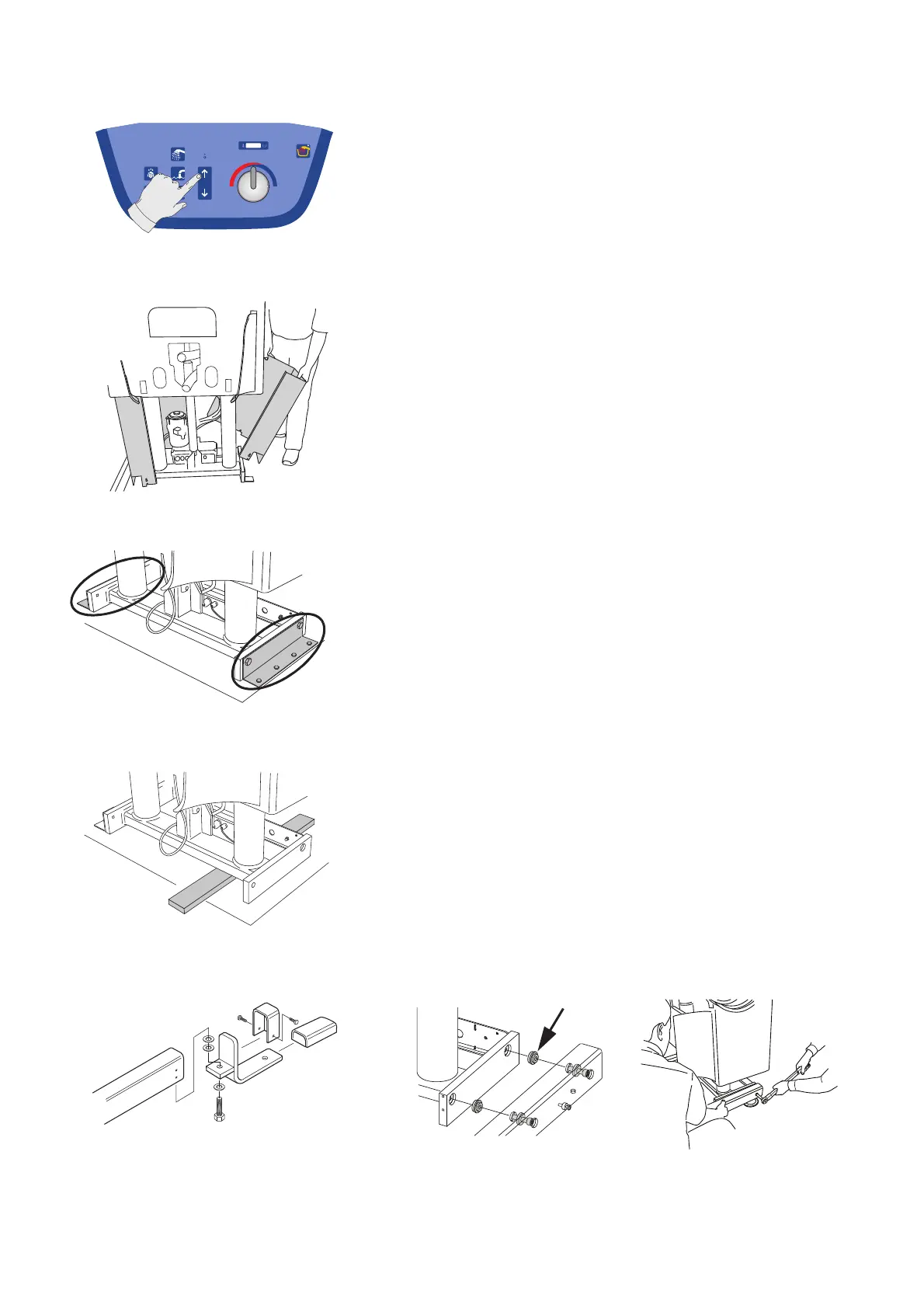

6 Raise the panel to top position by pressing the
"UP" button. (See fig. 11)
7 Remove the bottom frame covers. (See fig. 12)
8 Remove the angle iron brackets. (See fig. 13)
9 Place one of the wooden boards under one side of the
panel to slightly raise it. (See fig. 14)
10 (This step is for 2150 mm bathtub only)
Assemble a foot (from the assembly kit) on each leg.
(See fig. 15)
11 Mount the first leg to the raised side of the panel.
Ensure that the bushings are positioned correctly against
the leg and the panel. Tighten the screws to a torque
of 44Nm. (See fig. 16 & 17)
Fig. 11
Fig. 12
Fig. 13
Fig. 14
Fig. 16
Fig. 17
Fig. 15
