Arjo 2000 - Drain Installation; Level Adjustment

26

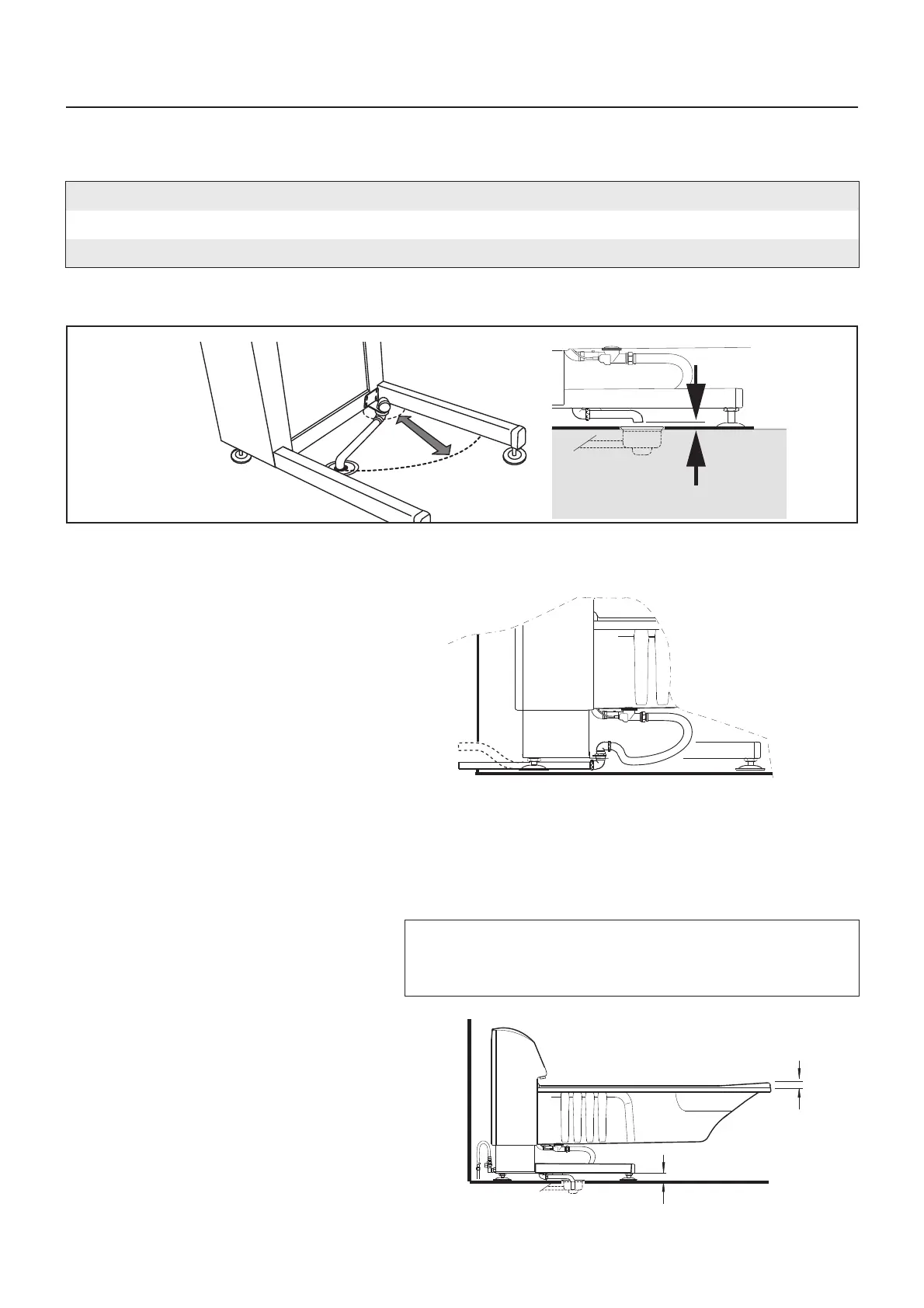

Drain installation
Drainage requirement
•
1 Floor mounted drainage. (See fig. 1)
2 Wall mounted drainage: Connect the enclosed drain hose
to a drain hose/pipe in the wall. (See fig. 2)
Level adjustment
Adjust the feet so that the bath is leveled horizontally, with
the exception that head end of the tub is about 15 mm (9/16")
over the end against the panel. (See fig. 3)
•
•
Minimum. drainage capacity 100 l/minute (26.4 US gal/minute)
The bath must be connected to drainage. Create airgap if needed.
Connections must be done in accordance with local regulations.
CAUTION
The distance between the floor and the underside of
the leg must not exceed 70 mm (2 6/8").
Airgap
Fig. 1
Fig. 2
15 mm
9/16”
2 6/8”
max. 70 mm
Fig. 3
