installation &
operating instructions
Design Envelope 4322 & 4372
Tango Pumping Unit
20

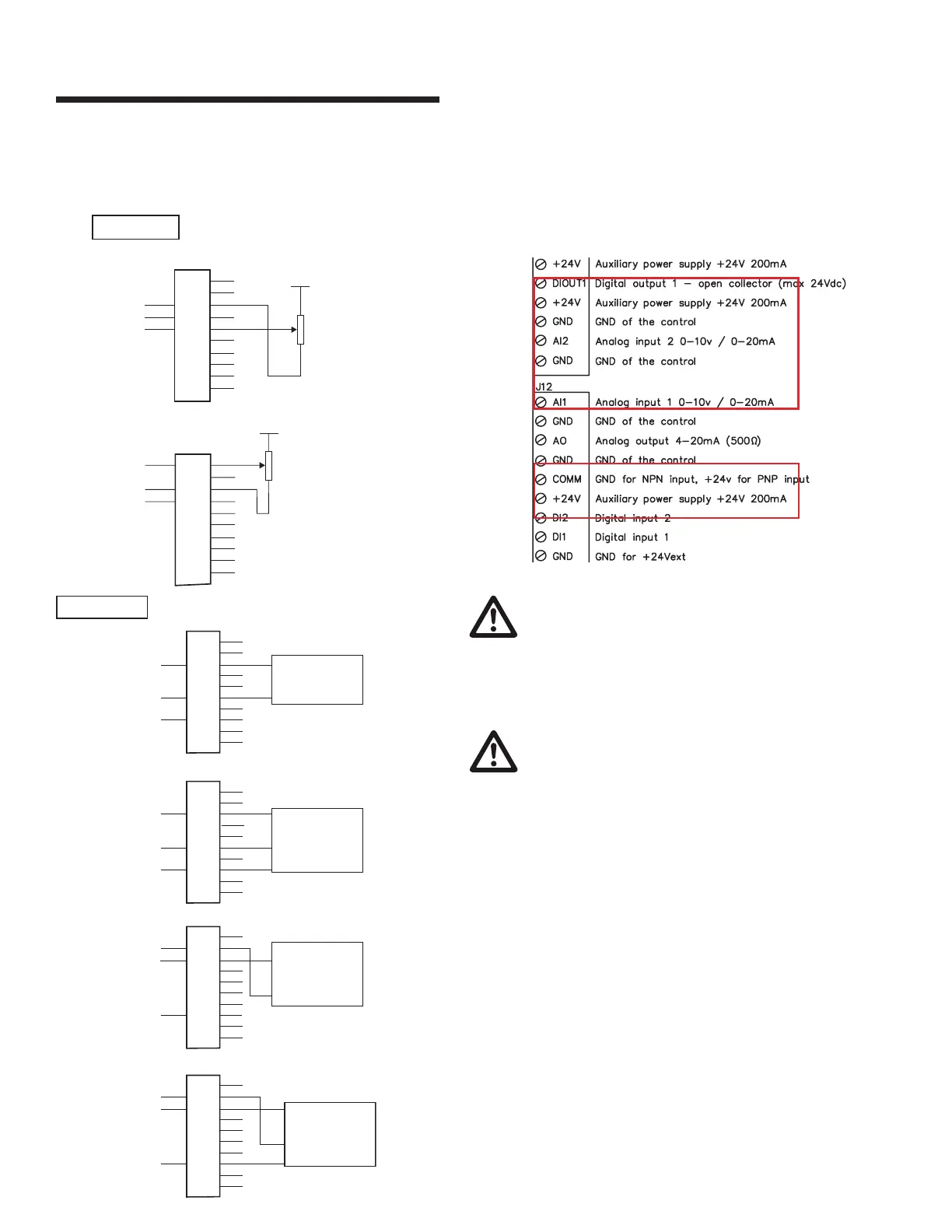

ii wiring analog inputs for frame 71 motors 2.3.5.2 analog / digital inputs for
depm motors
a wiring
The number of starts/stops via the mains voltage must
not exceed one-time per minute.
If a higher number of starts/stops is required then the
start/stop digital input must be used (mains voltage
directly connected). This is the preferred method of
starting and stopping Design Envelope Pumps.
The three phase mains must be isolated before
performing maintenance of the pump.
Personnel requirements
1 Armstrong Tier 3 training or equivalent
2 Ability to terminate simple control wiring
3 Ability to configure Armstrong controls
4 All work will be done on low voltage, however, when remov-
ing the controller cover high voltage may be exposed. An
electrician license is required in some areas
i wiring digital inputs
1 Connect one port of the contact to digin1 or digin2.
2 Connect the other port to +24vext
ii wiring analog inputs
1 Connect signal source to anin1 Or anin2
2 Connect the other port to gnd
Digital
Input
Wiring
Analog
Input
Wiring
0-10V inputs
+10Vdc
0-10V input 1
gnd
j2
Max. 24
v
20
19
18
17
16
15
14
13
12
11
+10Vdc
0-
10V input 2
gnd
j2
20
19
18
17
16
15
14
13
12
11
Max. 24v
0-20mA inputs
2-Wires Sensor
2-Wires Sensor
+24Vdc
-
0-20mA input 1
gnd
j2
20
19
18
17
16
15
14
13
12
11
3-Wires Sensor
+24Vdc
+
out
out
out
-
0-20mA input 1
gnd
j2
20
19
18
17
16
15
14
13
12
11
+24Vdc
-
0-20mA input 2
gnd
j2
20
19
18
17
16
15
14
13
12
11
3-Wires Sensor
+24Vdc
+
-
0-20mA input 2
gnd
j2
20
19
18
17
16
15
14
13
12
11
out
