DrillSaw Highspeed 200™ User’s Guide
DFU-0225-2 Rev. 0 Page 25 of 58
4.7 Connecting and Removing Attachments to the AR-200M
Motor
These instructions describe the procedure for connecting an attachment to the
AR-200M motor.

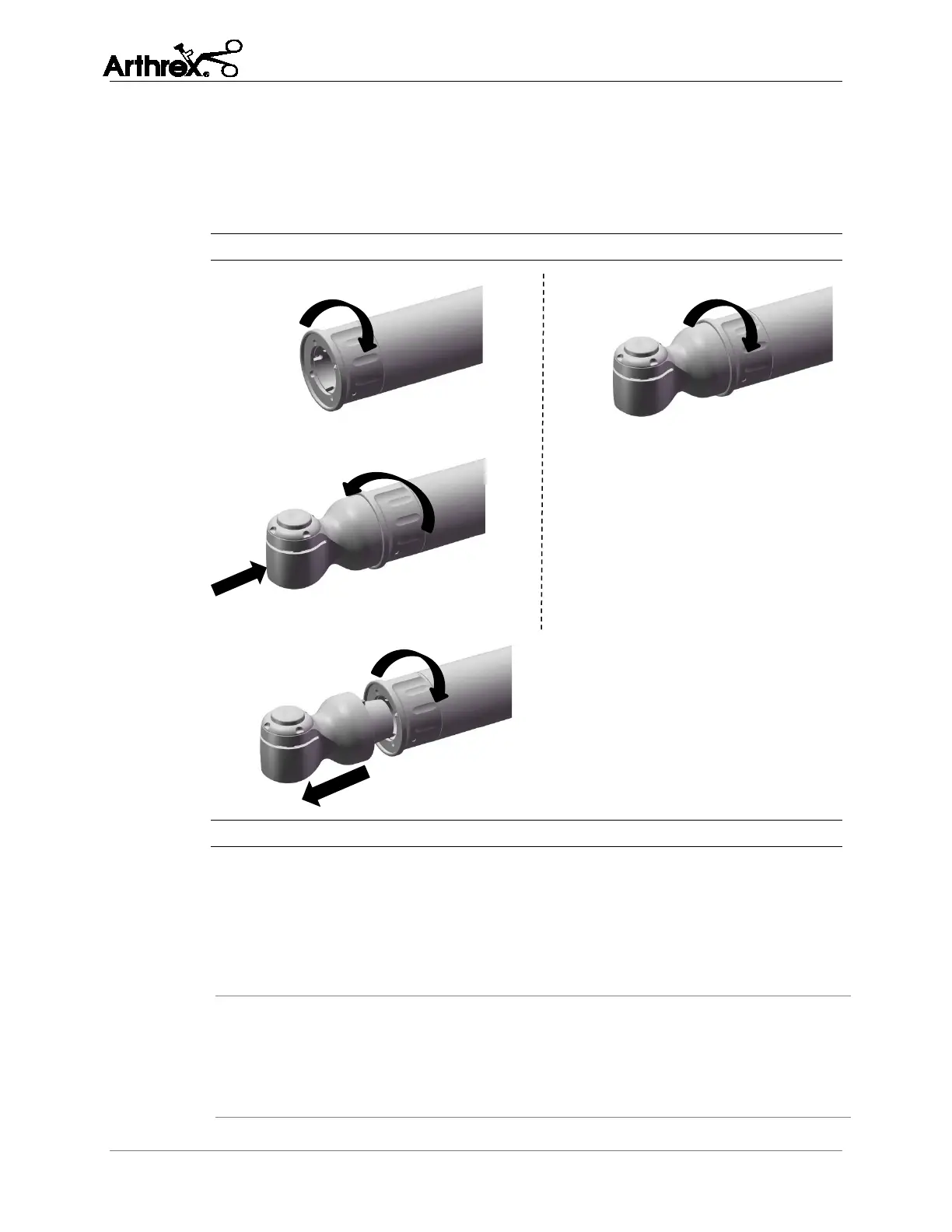

Figure 9 Connecting and removing an attachment
Table 15 Connecting and removing an attachment
a
To Insert the attachment:
- Step 1: Turn the motor chuck mechanism
- Step 2: Push the adaptor into the locking mechanism
- Step 3: Loosen the chuck mechanism
Note: For insertion only: Steps 1 and 2 can be combined
b
To Remove the attachment:
- Turn the motor chuck mechanism
- Pull out the adaptor
a b
