4.9 AR-200SP Spray Clip
These instructions describe the setup of the AR-200M with the AR-200SP Spray
Clip

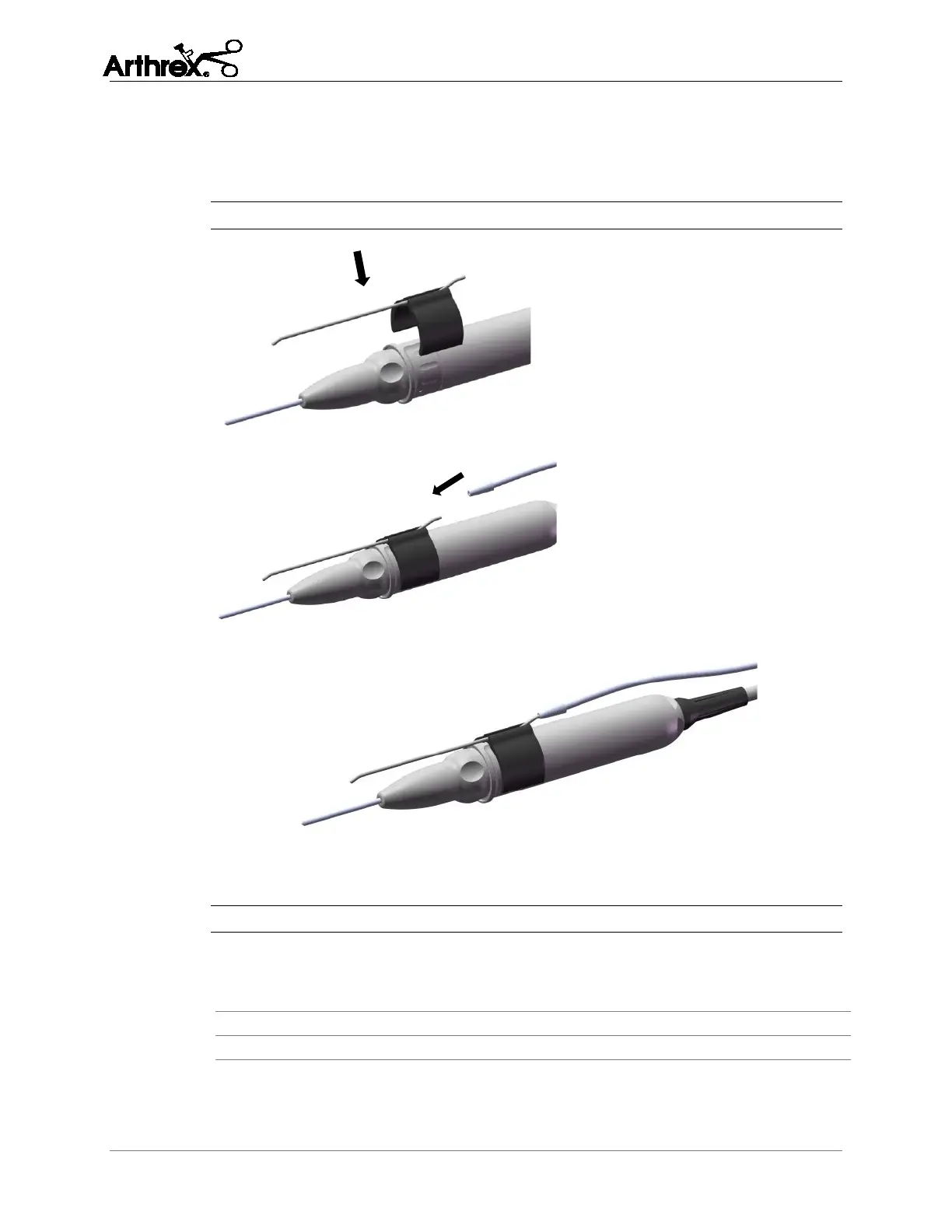

Figure 11 Connection of AR-200SP Spray Clip to the Motor AR-200M
Table 17 One-Piece Tubing Configuration
a.
Attach the Spray Clip to the motor
The Spray Clip groove matches with the coupling ring of the
motor
a.
Insert the tubing end onto the proximal rod end of the Spray Clip
c.
If needed: Fix the irrigation tubing in the clips of the motor cable
a
b
c
