DrillSaw Highspeed 200™ User’s Guide
DFU-0225-2 Rev. 0 Page 29 of 58
4.10 AR-200H Handle
These instructions describe the setup of the AR-200M with the AR-200H Handle

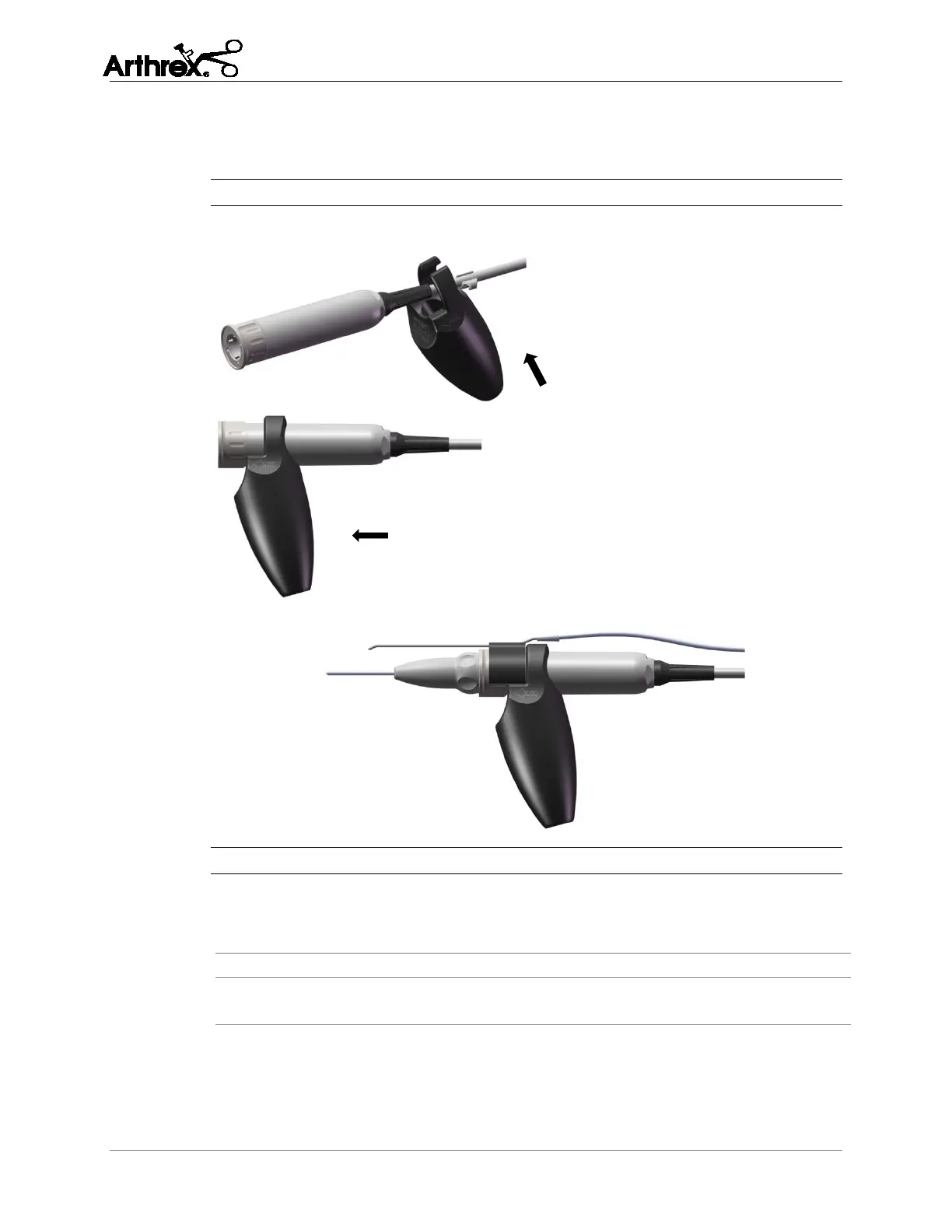

Figure 12 Connection of AR-200H handle to the AR-200M motor
Table 18 AR-200H handle connection to AR-200M motor
Attach the handle to the AR-200M motor cable
Pay attention to the orientation.
The arrow on the handle indicates the correct direction
Slide the handle up the motor until it reaches the coupling ring
The handle can also be used with the Spray Clip.
This configuration is shown with a drill attachment.
The AR-200H handle can only be used with the AR-200M motor not with the
AR-200M-ISO motor.
