Arturia VOCODER V - Multi Filter

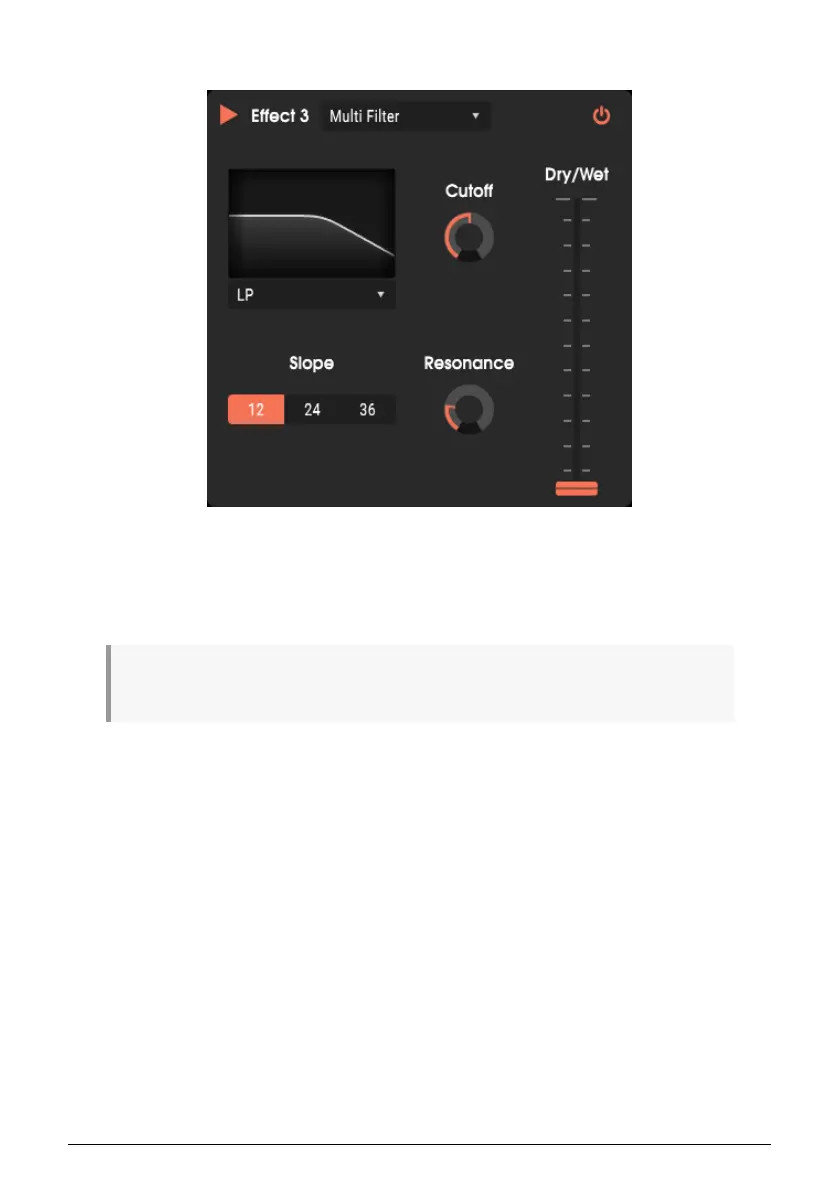

9.5.9. Multi Filter
Multi Filter is a powerful sound-shaping filter, with five distinct filter modes, for sculpting
frequencies at the output stage. It’s much like the filters found in synthesizers.
• Filter Mode Choose from five different filter modes: Low Pass, High Pass, Band
Pass, Comb Feed Back, Comb Feed Forward.

♪: The LP, HP and BP filter modes display an additional parameter for changing the filter slope
among -12, -24, or -36 dB/octave.
• Cutoff Controls the frequency above or below which the filtering action takes
place.
• Resonance Controls the gain around the cutoff frequency for the LP, HP, and
BP filters, which creates a peak at that frequency. Higher resonance settings
create a sharper peak. For the Comb FB filter, Resonance increases the peak of
the combs, while for the Comb FF filter, Resonance increases the depth of the
comb’s notches.
Arturia - User Manual Vocoder V - The Effects 73
