3 INTRODUCTION TO THE AC08 AND AC12, cont.
System operation is managed through three basic operators. A safety disconnect at the bottom of the
enclosure is used for securing input service during maintenance and service. Two membrane switch
groups in the control console, SHORE POWER and CONVERTER POWER, provide normal
operation of the system. Each switch group contains an ON and OFF switch with associated LED
indicators.
In addition to the basic function of power conversion, these converters provide the user with a
sophisticated power analysis and monitoring capacity. All parameters for input and output power,
along with operations and status information, are available on the front panel display console.
Various displays are selected through a long-life, sealed membrane switch panel. All front panel
information is available through the serial port for remote display, status and diagnostics.

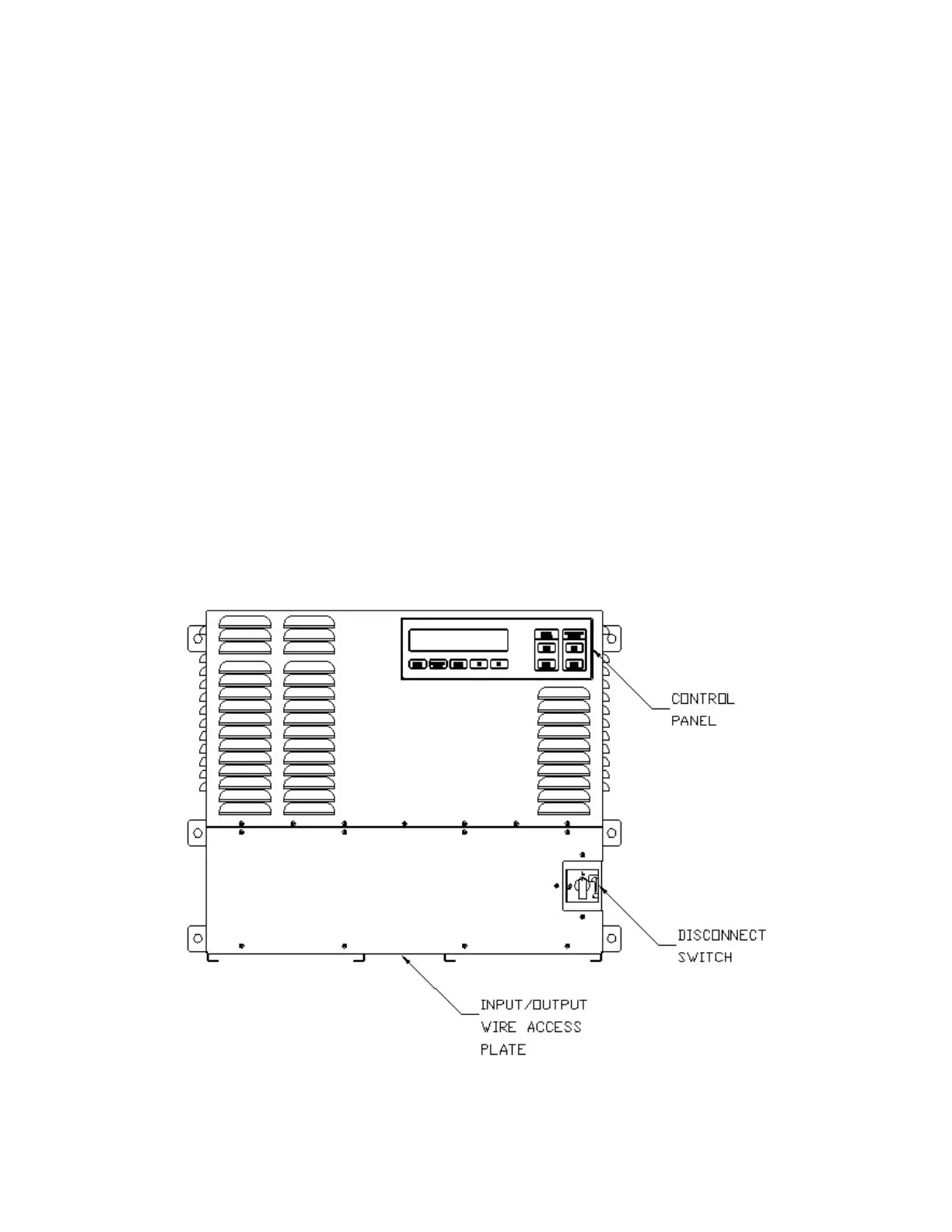

FIGURE 2 CONTROLS
