ASEA AC08 - Operation; Power Turn-On Procedure; Controls and Indicators

AC08 and AC12 Operations Manual....
21
6 OPERATION
6.1 POWER TURN-ON PROCEDURE
Close the input (shore power) circuit breaker to the converter. Turn the disconnect switch (10) to the
ON position. After 1-3 seconds the fans will be heard and the display will illuminate and become
active. Allow the opening message to complete.

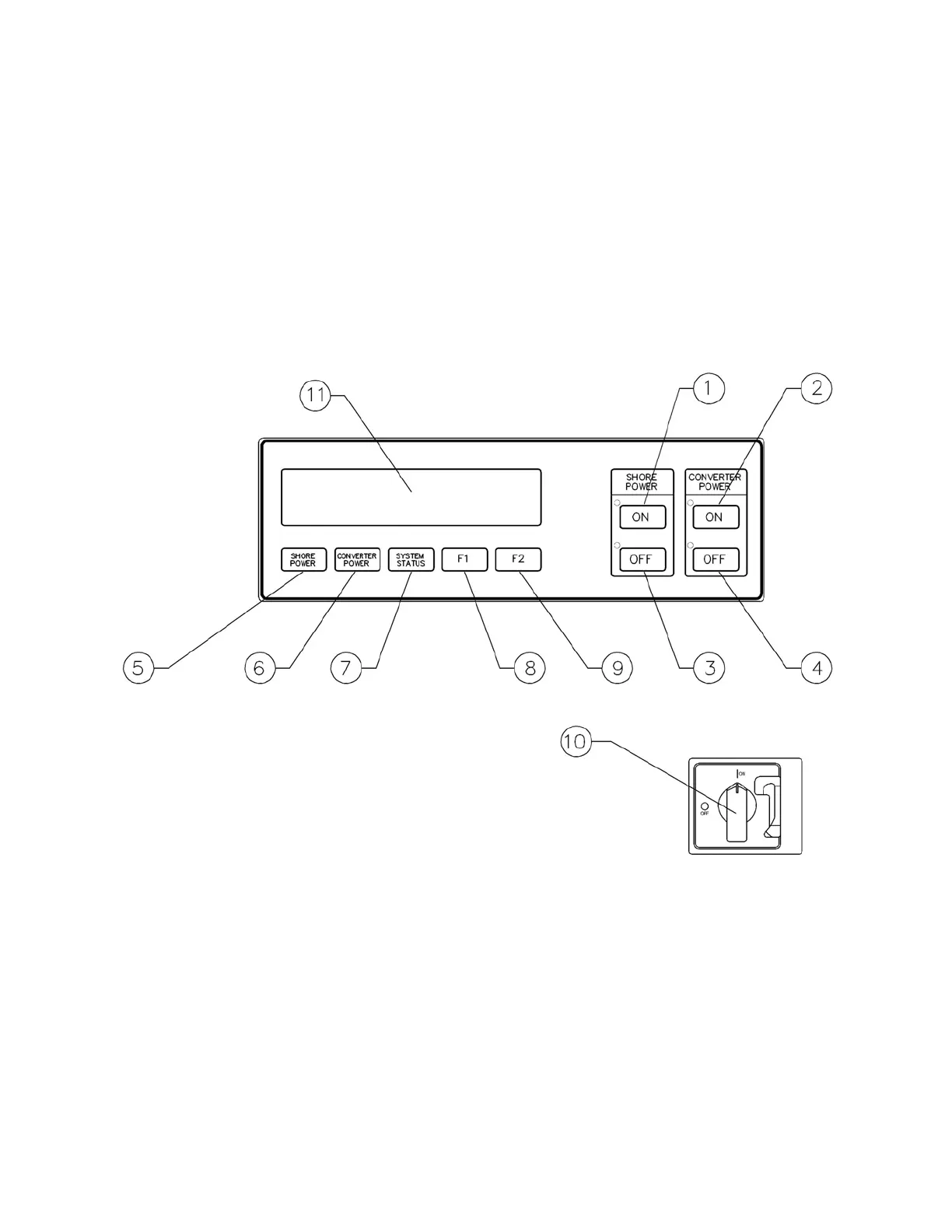

FIGURE 6 CONTROLS AND INDICATORS
