Ashida ADR141A - Page 65

ADR141A /
ADR241A
Doc ID : ADR241A_IM_01
Ref ID : ADR241A/IM/PLF
Rev No. : 02
Page No. : 65 of 150
0.010
0.100
1.000
10.000
1.000 10.000
TMS = 0.1
TMS = 0.2
TMS = 0.3
TMS = 0.4
TMS = 0.5
TMS = 0.6
TMS = 0.7
TMS = 0.8
TMS = 0.9
TMS = 1.0

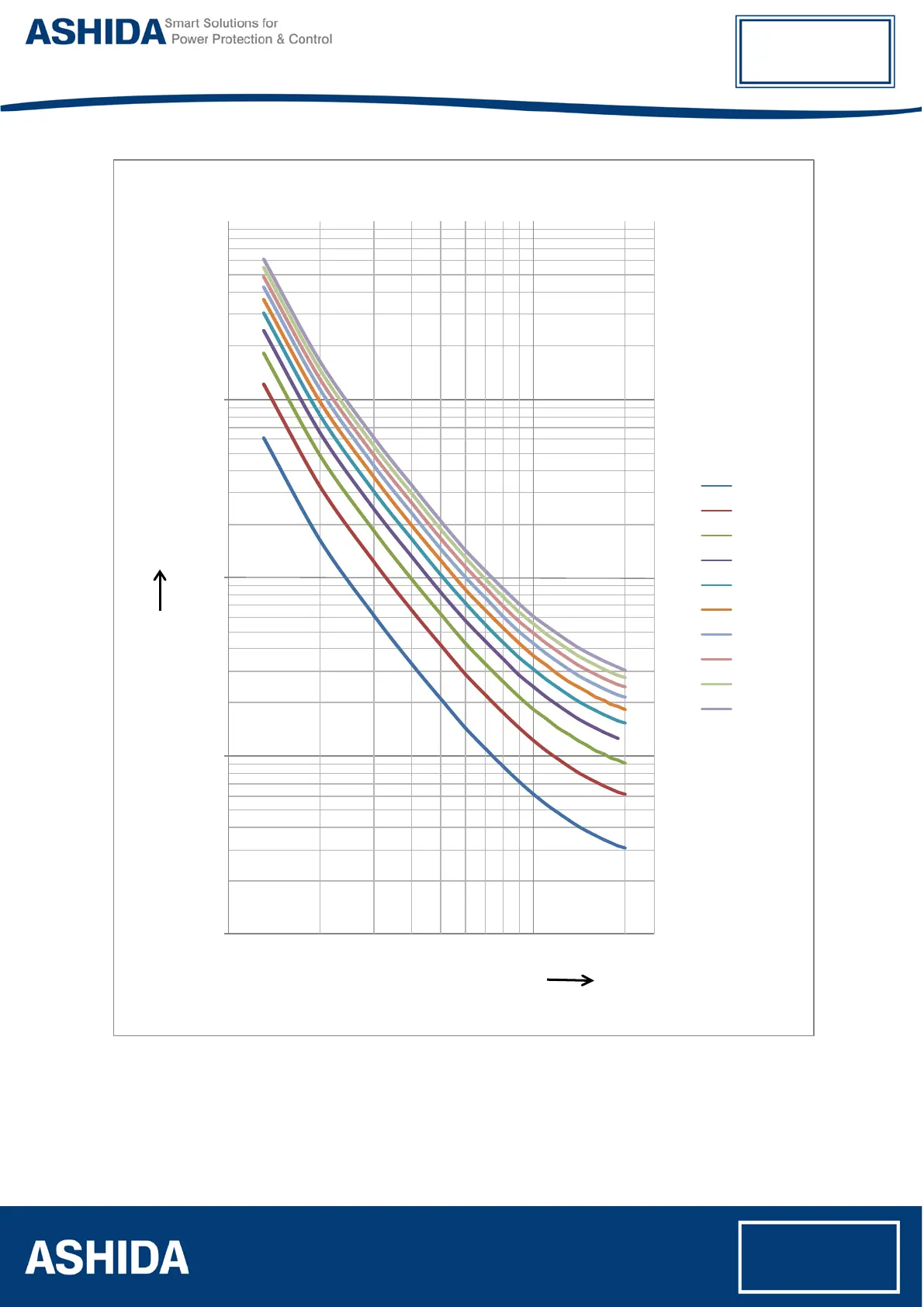

C4A Extremely Inverse
As per EE Relay
Current in Ampere
Time in seconds
