10.4. Relay Talk software for down loading the various data latch by relay,
Following is a brief step by step instruction to down load relay data.
• Start Relay Talk program from program menu

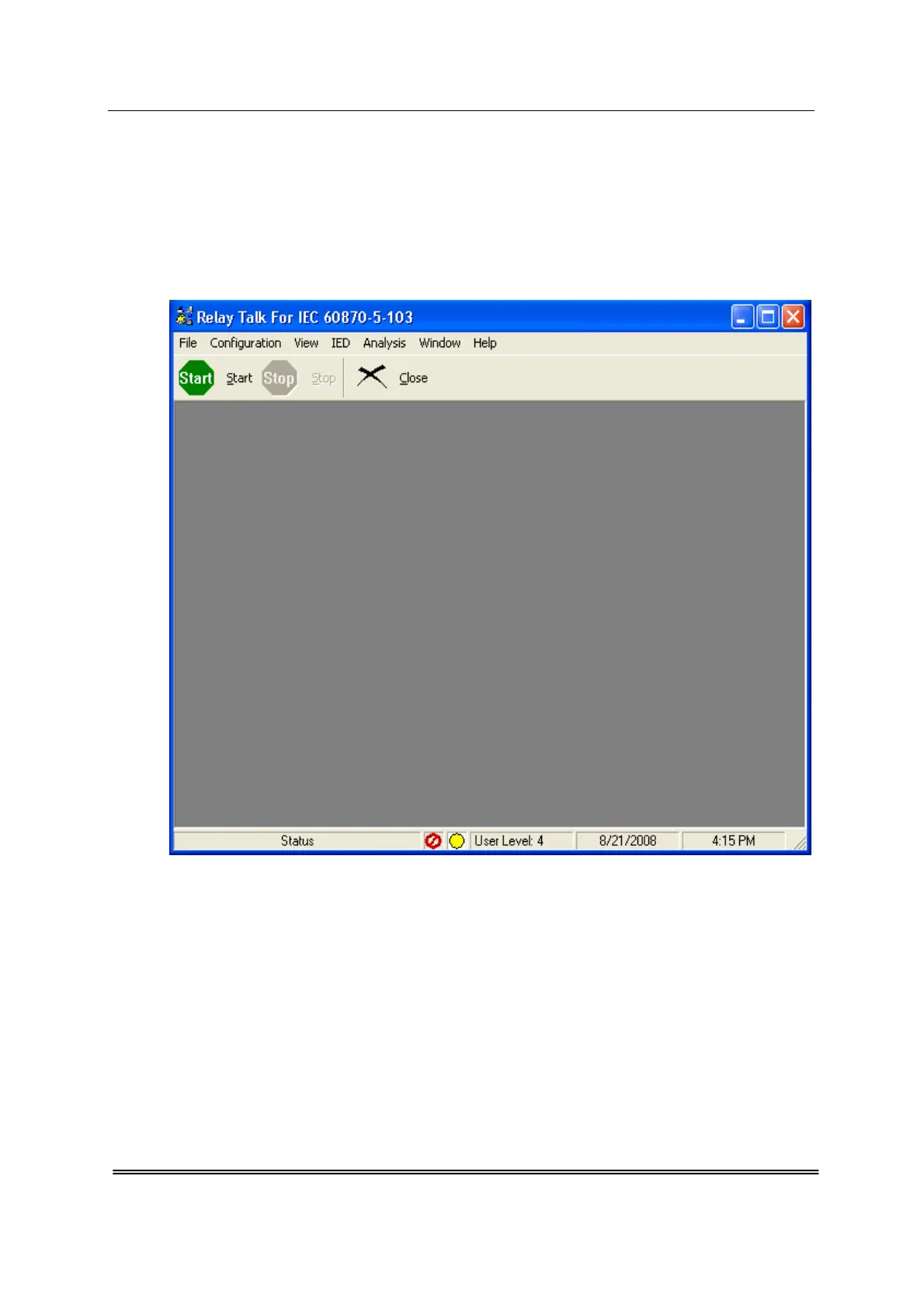

Following is the main screen of Relay talk system.
Fig. 10.3
For success communication setting of relay should match with software settings. In relay Talk
software there are numbers of settings. Here we have shown only essential screens for ADR241C
relay.
To check communication setting click configuration button.
