10.5.3 Control Operation
The control operation is used to control the relays parameters i.e. either to Reset the LEDs or
to open the CB by TRIP command.

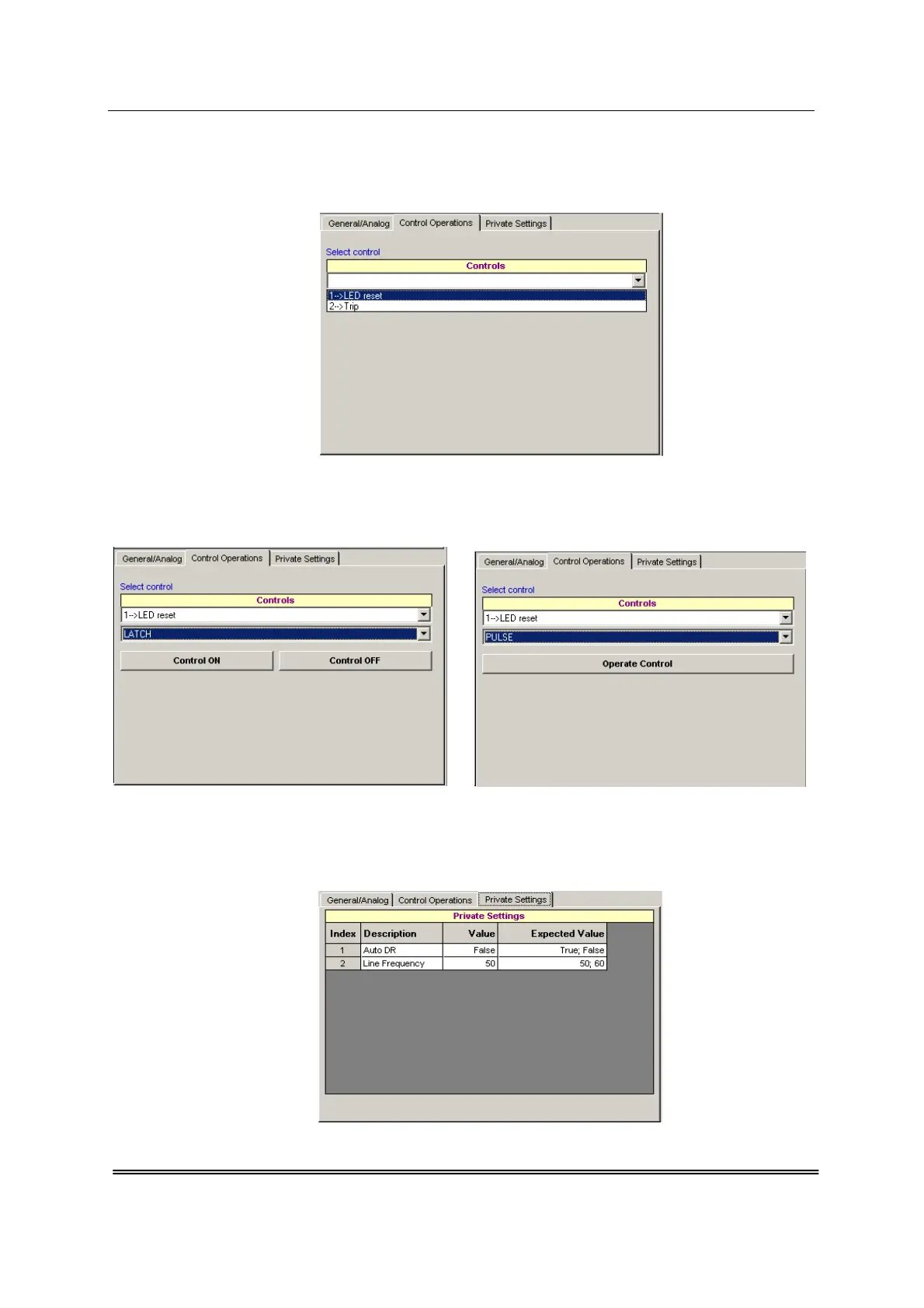

Fig. 10.11
This window is not used in ADR241C This window is used to operate the controls
Fig. 10.12 Fig. 10.13
10.5.4 Private Setting
These settings for IEDs are displayed along with their current values and expected values.
Fig. 10.14
