NUMERICAL OC/EF PROTECTION RELAY ADR141C/241C
ASHIDA Electronics Pvt. Ltd.
Ref: Manual / ADR141C / 241C
Issue: 04D
Date : 10.07.2014
Page 82/86
Following events occurred while relay is in Trip mode when local test Trip is occurred.
1. General start/pick up ON
2. General Trip ON
3. Test event ON

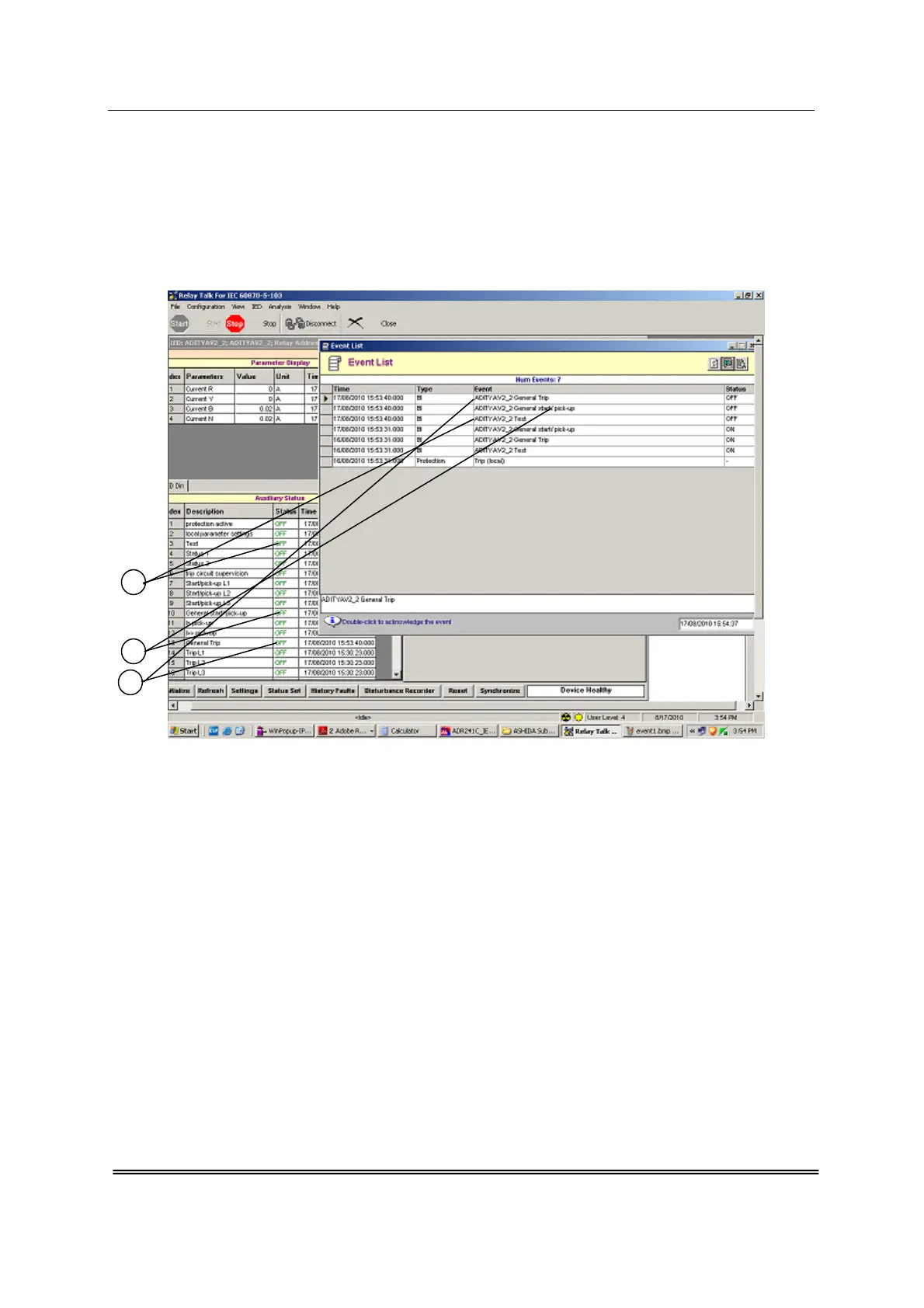

Fig. 10.20
When the relay is not in Trip mode following events are shown.
1. General start/pick up OFF
2. General Trip OFF
3. Test event OFF
3
1
2
