ASL INTERCOM Enchorus ENC 1201 User Manual

Appendix

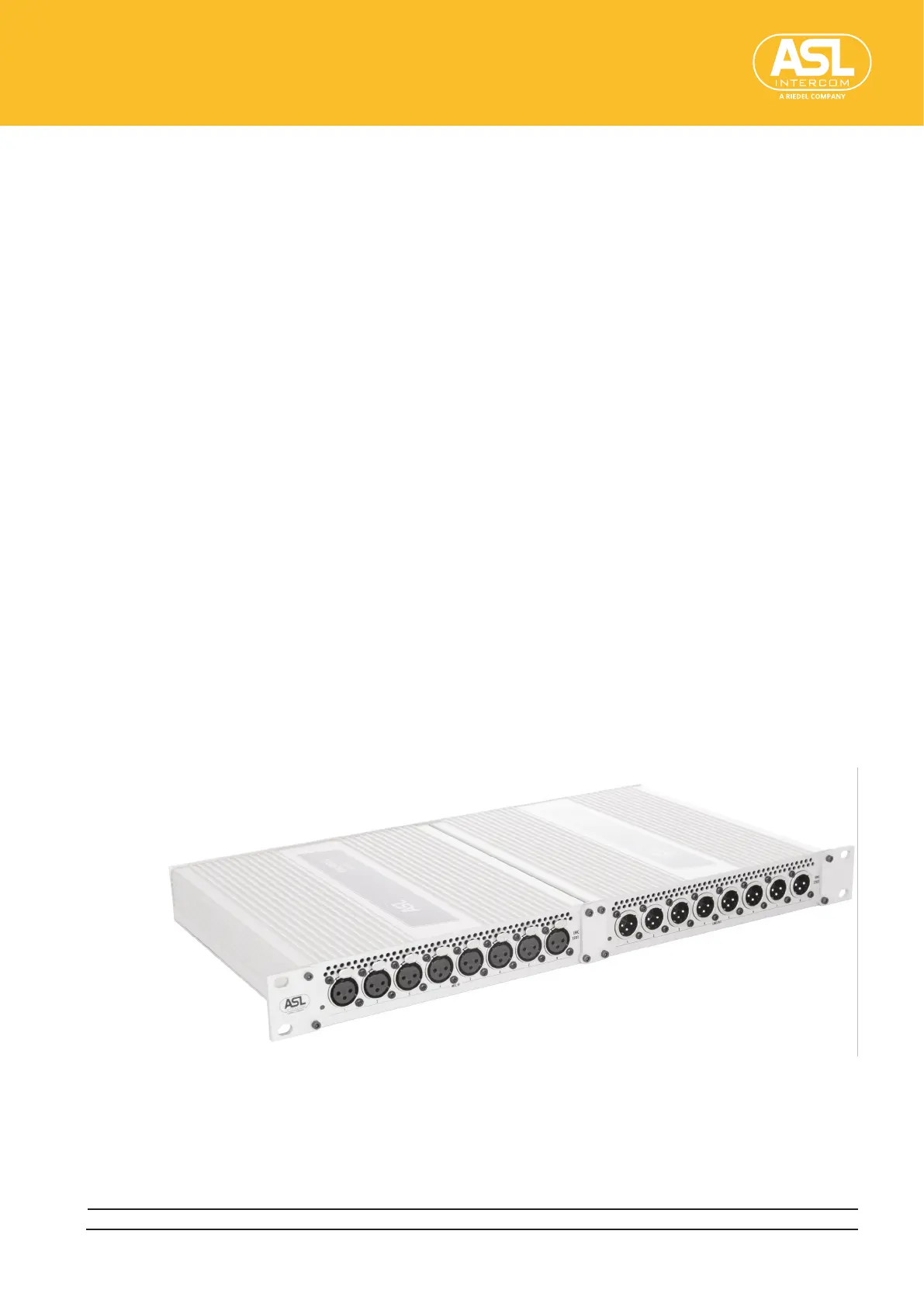

Optional 19” Rackmount Kit for Two ENCHORUS Devices (RM ENC DUAL)
ENC 1201 Version 1.0 Page 49
3. Using two cylinder-head screws, attach the front connecting blind to the right edge
of the ENCHORUS’s front panel.
4. Using two cylinder-head screws, attach the left front blind to the left edge of the
ENCHORUS’s front panel.
5. Loosen the four cylinder-head screws at the back of the ENCHORUS and remove
them.
6. Remove the rubber bumper from the ENCHORUS’s rear panel.
Take care to hold the ENCHORUS’s rear panel in place.
7. Retighten the two cylinder head screws on the right side of the ENCHORUS’s rear
panel.
8. Using two cylinder-head screws, attach the connecting blind to the left edge of the
ENCHORUS’s rear panel.
The rst ENCHORUS device is now ready.
AddingtheSecondENCHORUSDevice(therightoneintherack)
9. Loosen the four cylinder-head screws at the front of the second ENCHORUS and
remove them.
10. Remove the rubber bumper from the ENCHORUS’s front panel.
11. Using two cylinder-head screws, attach the right front blind to the right part of the
ENCHORUS’s front panel.
12. Using two cylinder-head screws, secure the connecting blind axed to the front
panel of the rst ENCHORUS to the left edge of the second ENCHORUS’s front panel.
13. Loosen the four cylinder-head screws at the back of the second ENCHORUS and
remove them.
14. Remove the rubber bumper from the second ENCHORUS’s rear panel.
Take care to hold the ENCHORUS’s back panel in place.
