4.7.2 Routing > I/O

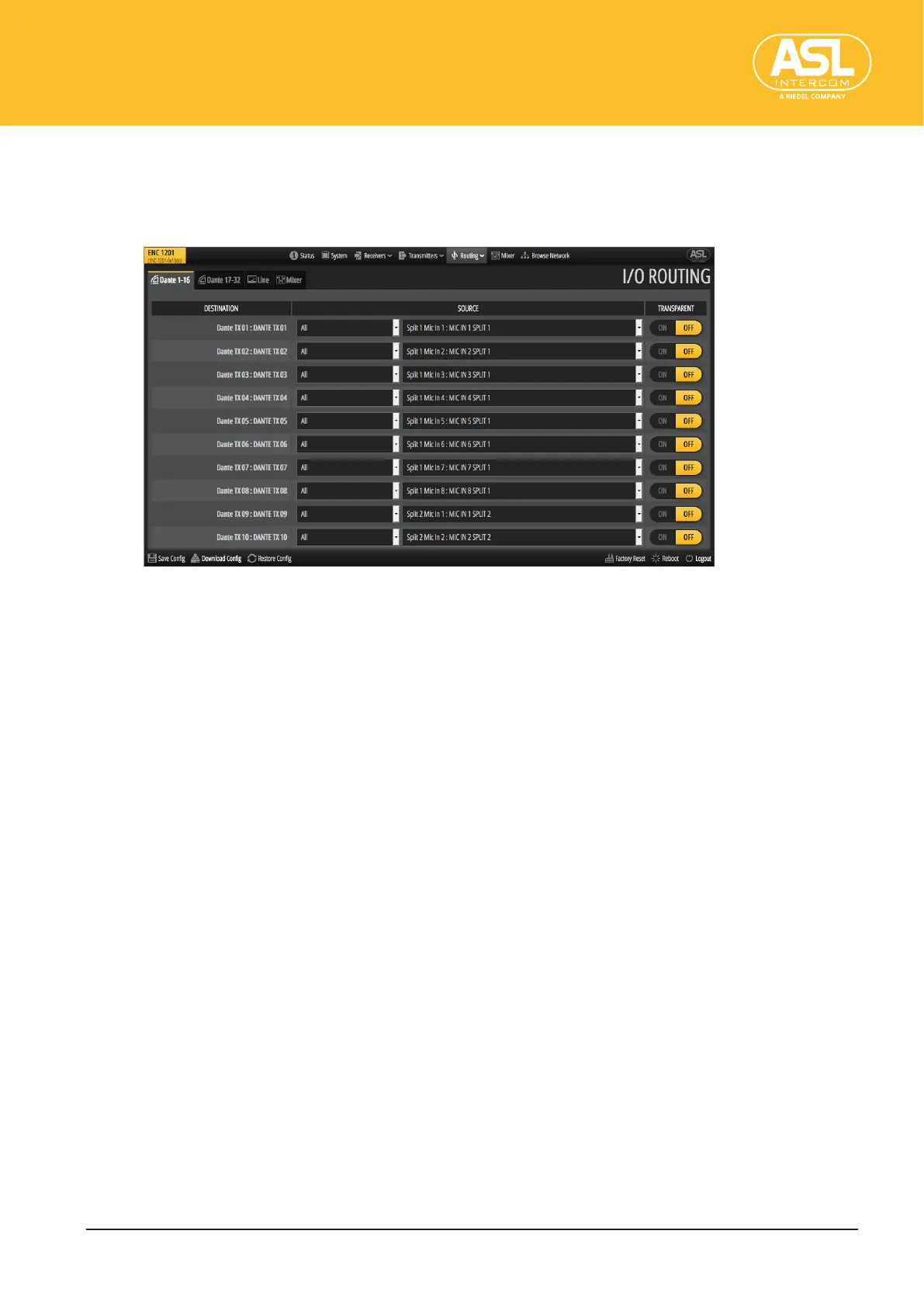

The “I/O” submenu is used to change the routing settings of the ENC 1201. The settings
are displayed and can be edited on the “Dante 1–16”, “Dante 17–32”, “Line” and “Mixer”
tabs.
The structure is more or less the same for all tabs: each has 3 columns.
DESTINATION
Name and label of the output. If necessary, the label can be changed using the “Label”
(p.39) parameter.
SOURCE
This column displays 2 drop-down menus where you can select the desired source for
each output.
The rst drop-down menu allows you to narrow down the available source to the type
you are looking for. This lters the sources displayed in the second column according to
types—such Mixer as outputs.
The second drop-down menu allows you to choose the desired channel among the
selected source type(s). Note that there is no need to pre-lter the sources.
TRANSPARENT
This setting is only available for “Dante” outputs (rst two tabs).
Signals set to “Transparent” are not processed in any way (no equalizer, etc.): they are
transmitted to the corresponding output without change.
