Enchorus ENC 1201 Specications
Pin Wiring
ENC 1201
Version 1.0
Page
54
6.2

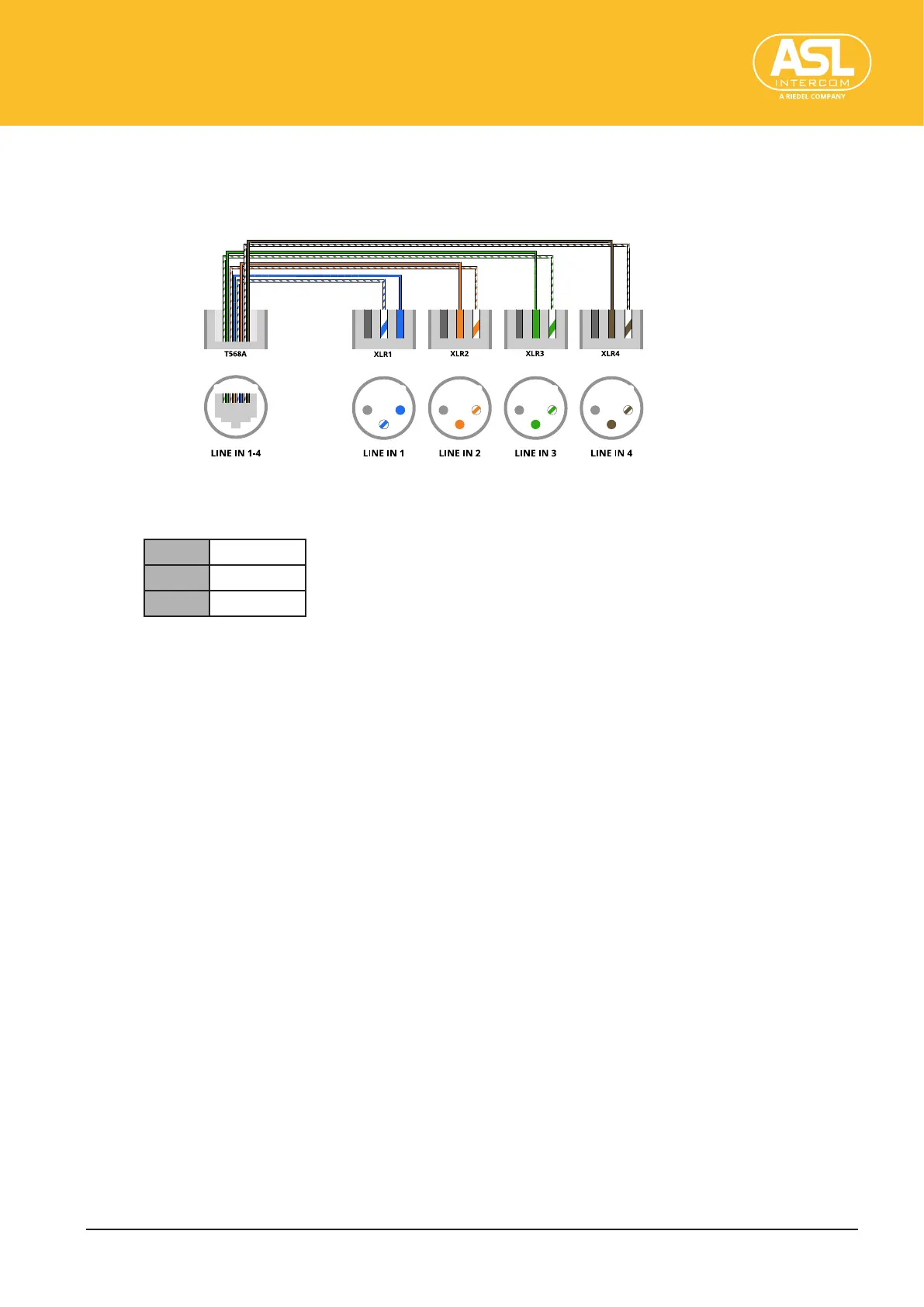

PinWiring
EtherCon(RJ45)PinWiring
1
3
2
1
3
2
1
3
2
1
3
2
1
8
XLRPinWiring
Pin 1
Shield
Pin 2
hot (+)
Pin 3
cold (-)
53
