Setting Up
ENC 1201 Panels
ENC 1201 Version 1.0 Page 9
3 Setting Up
3.1 ENC 1201 Panels

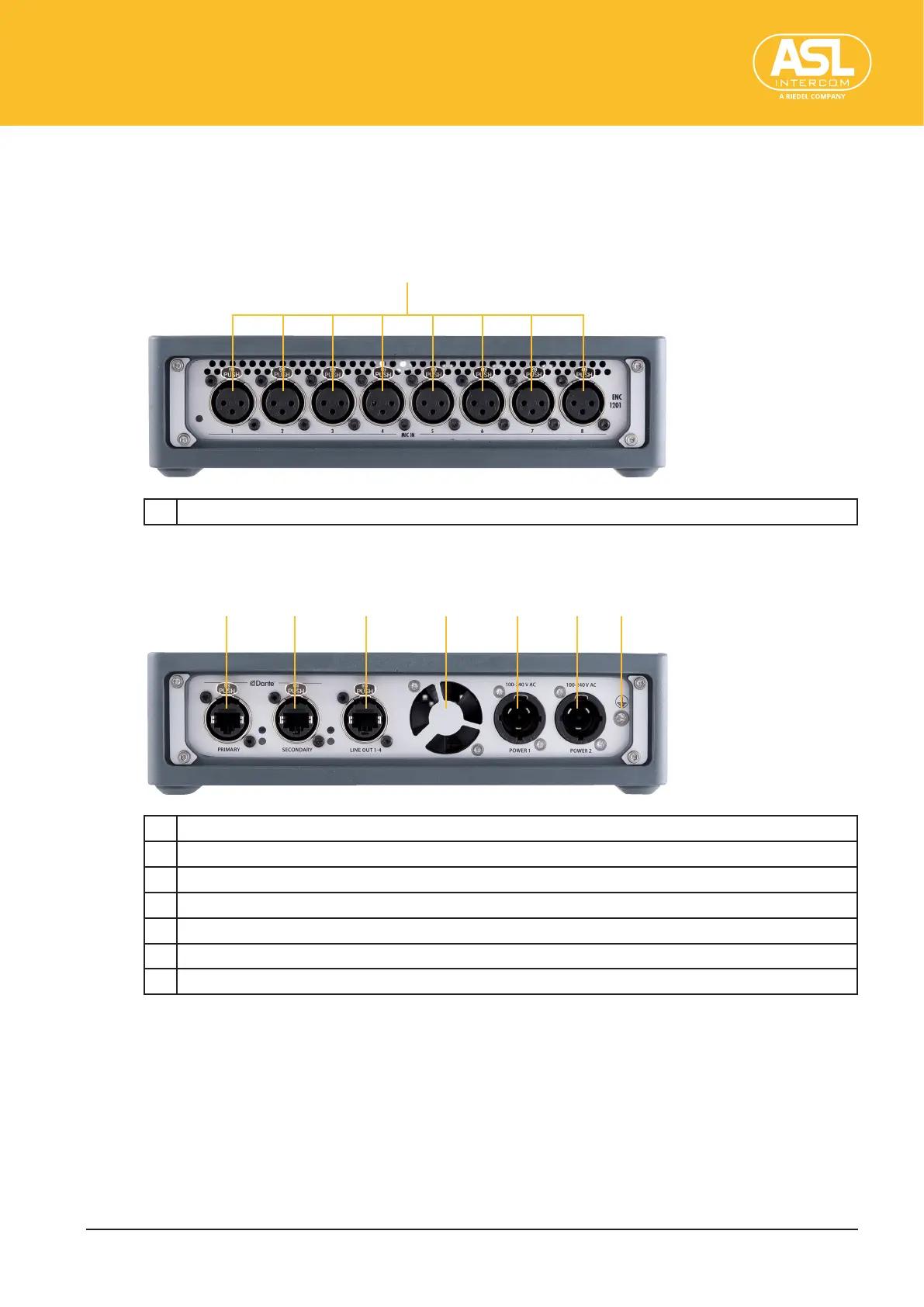

Front Panel
[1]
1 8 female XLR connectors—Microphone inputs (MIC IN 1~8)
Rear Panel
[2] [3] [4] [6][5] [7] [8]
2 PRIMARY Dante port
3 SECONDARY Dante port
4 RJ45 port (Line Out 1~4)
5 Cooling fan. Never obstruct this area.
6 POWER 1 connector
7 POWER 2 connector
8 Grounding screw
