Table 1 below gives example readings and threshold settings for input and amplifier output surveillance for
reference.
The readings in this table are examples using these surveillance tone settings:
• V2000 Low Frequency = 1.5V
• V2000 High Frequency = 4V
• VIPEDIA-12 output = 20Hz, -30dB, continuous.
Note the input surveillance reading is affected by the voltage setting of the amplifier (set in static
configuration) and amplifier output surveillance differs slightly between D500 / D150.
Surveillance Feature
Low Threshold
Nominal Value
High Threshold
Input (@100V) 14mV
25mV
N/A
Input (@70V) 10mV
18mV
N/A
Input (@50V) 7mV
12mV
N/A
Amplifier Output - low frequency (D500) 960mV
1
600
mV
2240mV
Amplifier Output - low frequency (D150) 840mV
1400mV
1960mV
Amplifier Output - high frequency (D500) 2400mV
4000mV
5600mV
Amplifier Output - high frequency (D150) 1800mV
3000mV
4200mV

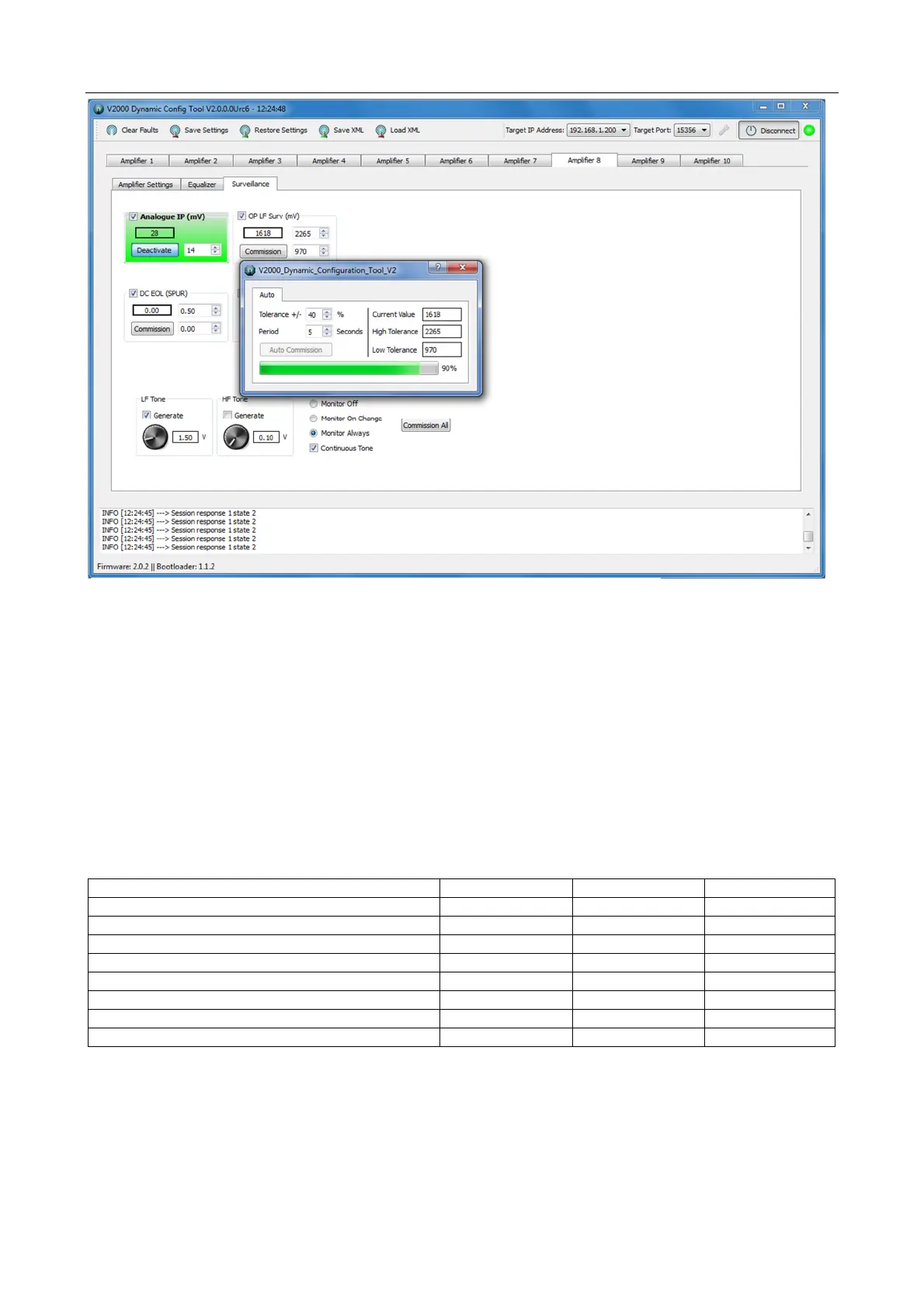

Figure
11
V2000 Dynamic Configuration Tool – Surveillance Commissioning
Table 1
Expected Input and Amplifier Output readings using recommended tolerance
