ASTEC AD-3100 User Manual

AD-3100 Drawer Type Incubator Operation Manual Rev. 4
ASTEC CO., LTD.
13

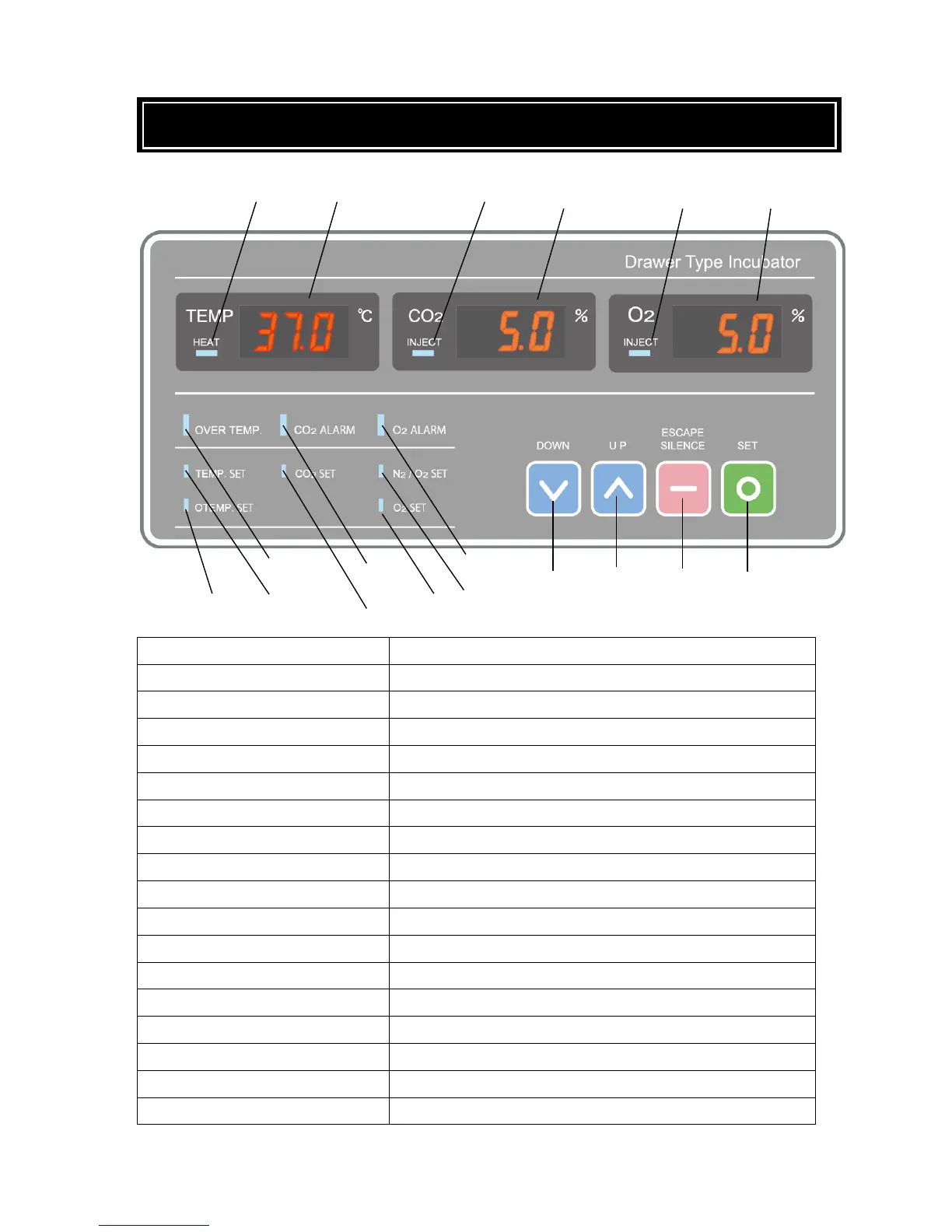

8. Description of Control Panel
(1) Temperature Display
Displays Temperature and setting value for Temperature
(2) CO
2
Display
Displays CO
2
concentration and setting value for CO
2
(3) O
2
Display
Displays O
2
concentration and setting value for O
2
(4) Heating Indicator
Lights on when the chamber is being heated
(5) CO
2
Inject indicator
Lights on when the CO
2
is being injected into the chamber
(6) O
2
Inject indicator
Lights on when the O
2
is being injected into the chamber
(7) Over Temp Alarm Indicator
Lights on when Over temp alarm goes off with a beep
(8) Temp Set Indicator
Lights on when chamber temperature is being set
(9) Over Temp Set Indicator
Lights on when temperature upper limit is being set
(10) CO
2
Alarm Indicator
Lights on when the CO
2
alarm goes off with a beep
(11) CO
2
Set Indicator
Lights on when the CO
2
concentration is being set
(12) O
2
Alarm Indicator
Lights on when the O
2
alarm goes off with a beep
(13) N
2
/O
2
Set Indicator
Lights on when the gas selection N
2
/O
2
is being modified
(14) O
2
Set Indicator
Lights on when the O
2
concentration is being set
(15) Down arrow key
Used to decrease value for settings and calibrations
(16) Up arrow key
Used to increase value for settings and calibrations
(17) Silence key
Used to mute the alarm when activated
(18) Set key
Used to set the value for settings and calibrations
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
