AD-3100 Drawer Type Incubator Operation Manual Rev. 4
ASTEC CO., LTD.
28
22. Power Monitoring Relay Unit
Power Monitoring System connecting an external device or system and output ports located at back side
of Cube (AD-3100) is available.
Output Terminals
A connector shown below is mounted on the back side of Cube (AD-3100) indicated “POWER
MONITOR”
Recommended Connector at connecting side
Connector Housing: SMR-03V-B (J.S.T. Mfg. Co.,Ltd)
Pin Contact: BYM-001T-PO.6 (J.S.T. Mfg. Co.,Ltd)

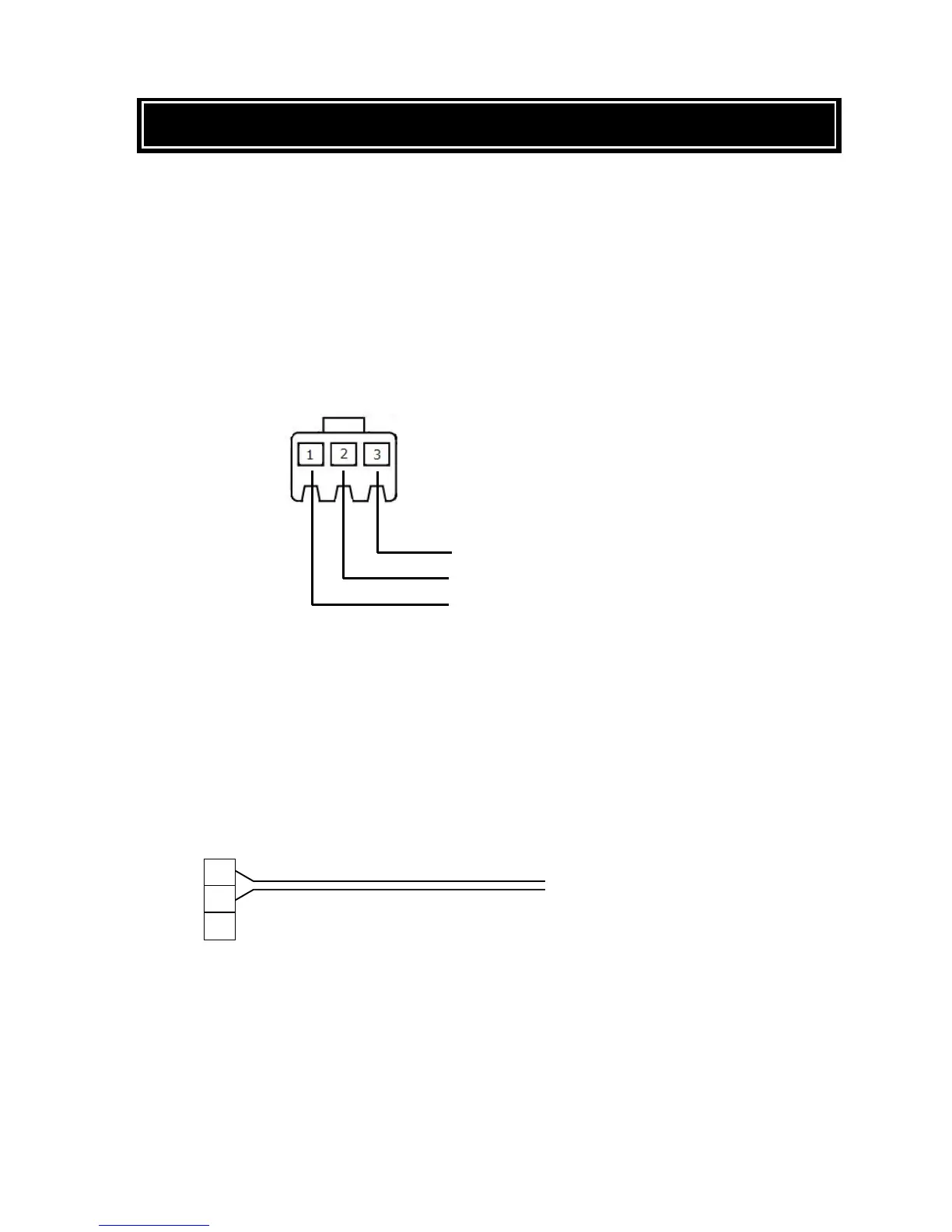

Accessory Cable for Power Monitoring Output
3: Unconnected
2: Output Terminal
1: Output Terminal
White
White
1
2
3
