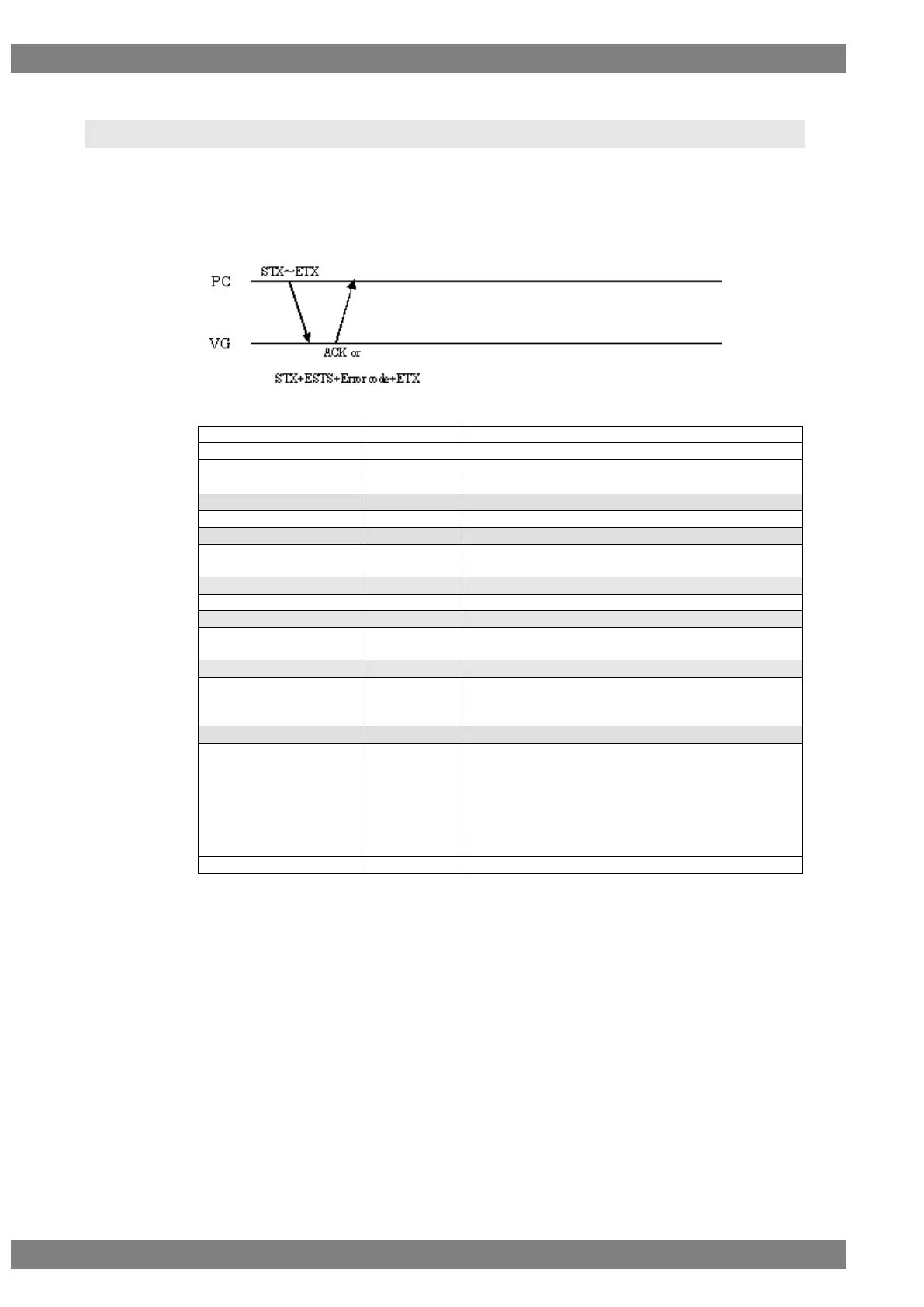

2.65 SLS4 [20H 63H]: LipSync data setting
Function: This command sets the LipSync data of the designated program number. When the
program number is 0, it writes the data into the buffer RAM. When it is 9999, it writes
the data into the command work RAM.
Sequence: Type 2
Parameters:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SLS4
2 bytes
20H 63H
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
LipSync ON/OFF
1 byte
“0” = OFF, “1” = ON
,
1 byte
2CH (Delimiter)
Mode
1 byte
“0” = DELAY
“1” = EDID
,
1 byte
2CH (Delimiter)
ON (Display) time
1 to 3 bytes
“1” to “255”
,
1 byte
2CH (Delimiter)
OFF (Black insertion)
time
1 to 3 bytes
“1” to “255”
,
1 byte
2CH (Delimiter)
Delay time
2 to 4 bytes
“1500” to “0500” (-500 to 500)
Byte 0 is a sign code: “0” for + or “1” for -
Bytes 1 to 3 are the data portion.
,
1 byte
2CH (Delimiter)
EDID Port
1 byte
“0” = HDMI1, “1” = HDMI2
Below is for VG-876
"2"=HDMI3, "3"=HDMI4, "4"=HDMI5,
"5"=HDMI6, "6"=HDMI7, "7"=HDMI8,
"8"=HDMI9, "9"=HDMI10,"10"=HDMI11,
"11"=HDMI12,"12"=HDMI13,"13"=HDMI14,
"14"=HDMI15,"15"=HDMI16
ETX
1 byte
03H
Fig. 2-65-1
