ASTRO VG-877 - SMB4 [20 H 76 H]: Motion Blur Data Setting

164
2.84 SMB4 [20H 76H]: Motion Blur data setting
Function: This command sets the Motion Blur data of the designated program number.
When the program number is 0, it writes the data into the buffer RAM. When
it is 9999, it writes the data into the command work RAM.

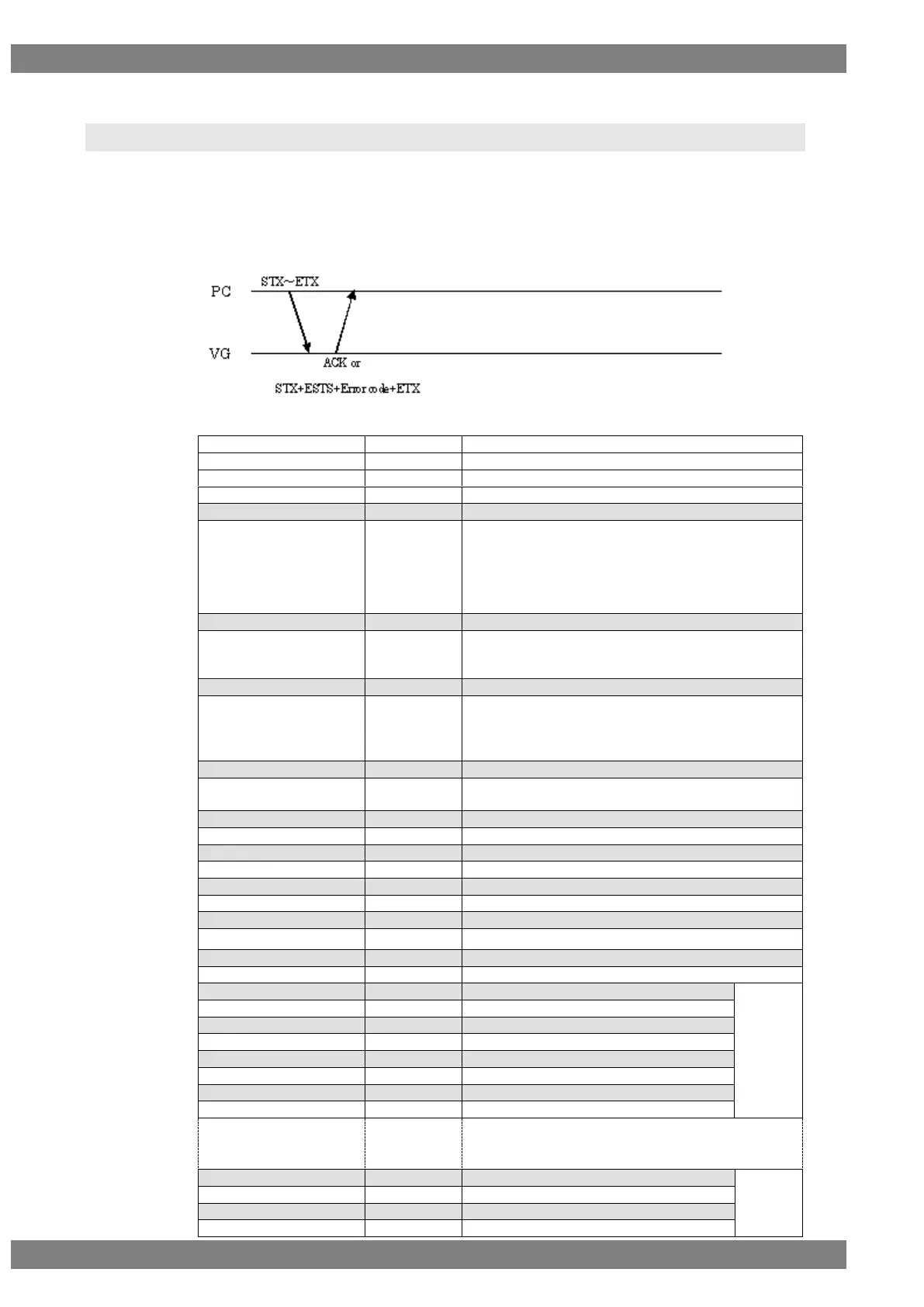

Sequence: Type 2
Parameters:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SMB4
2 bytes
20H 76H
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
Direction
1 byte
“0” = Diagonal
"1" = Horizontal
"2" = Vertical
"3" = Random
“4” = Horizontal 2 pair motion
,
1 byte
2CH (Delimiter)
Displayed Pattern
Number
1 or 2 bytes
“1” to “16”
When using the horizontal 2 pair motion, it should
be2,4,8 or 16.
,
1 byte
2CH (Delimiter)
Pattern Size
1 bytes
“0” = 8x8
“1” = 16x16
“2” = 32x32
“3” = 64x64
,
1 byte
2CH (Delimiter)
Type
1 or 2 bytes
"0" = Circle, "1" = Square
“E0 –FF” (user character number)
,
1 byte
2CH (Delimiter)
Start coordinate X
1 to 3 bytes
“0” to “100” %
,
1 byte
2CH (Delimiter)
Start coordinate Y
1 to 3 bytes
“0” to “100” %
,
1 byte
2CH (Delimiter)
Ending coordinate X
1 to 3 bytes
“0” to “100” %
,
1 byte
2CH (Delimiter)
Ending coordinate Y
1 to 3 bytes
“0” to “100” %
,
1 byte
2CH (Delimiter)
Bit Mode
1 or 2 bytes
“8” to “16”
,
1 byte
2CH (Delimiter)
#1
Speed
1 to 3 bytes
“0” to “255” v (v unit)
,
1 byte
2CH (Delimiter)
R
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
G
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
B
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
#16
Speed
1 to 3 bytes
“0” to “255” v (v unit)
,
1 byte
2CH (Delimiter)
R
1 to 5 bytes
“0” to “65535”
