5.15.2 CELPS [D7H]: Ellipse clearing
Function: This command clears the ellipse on the graphic plane.
The center coordinates and radii of the ellipse are set by the parameters.
Sequence: Type 2
Parameters:
STX
1 byte
02H
GELPS
1 byte
D7H
Center coordinate X
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical
terms
Data delimiter
1 byte
“, “
Center coordinate Y
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical
terms
Data delimiter
1 byte
“, “
Radius RX
1 to 4 bytes
“1” to “4095”
Data delimiter
1 byte
“, “
Radius RY
1 to 4 bytes
“1” to “4095”
ETX
1 byte
03H

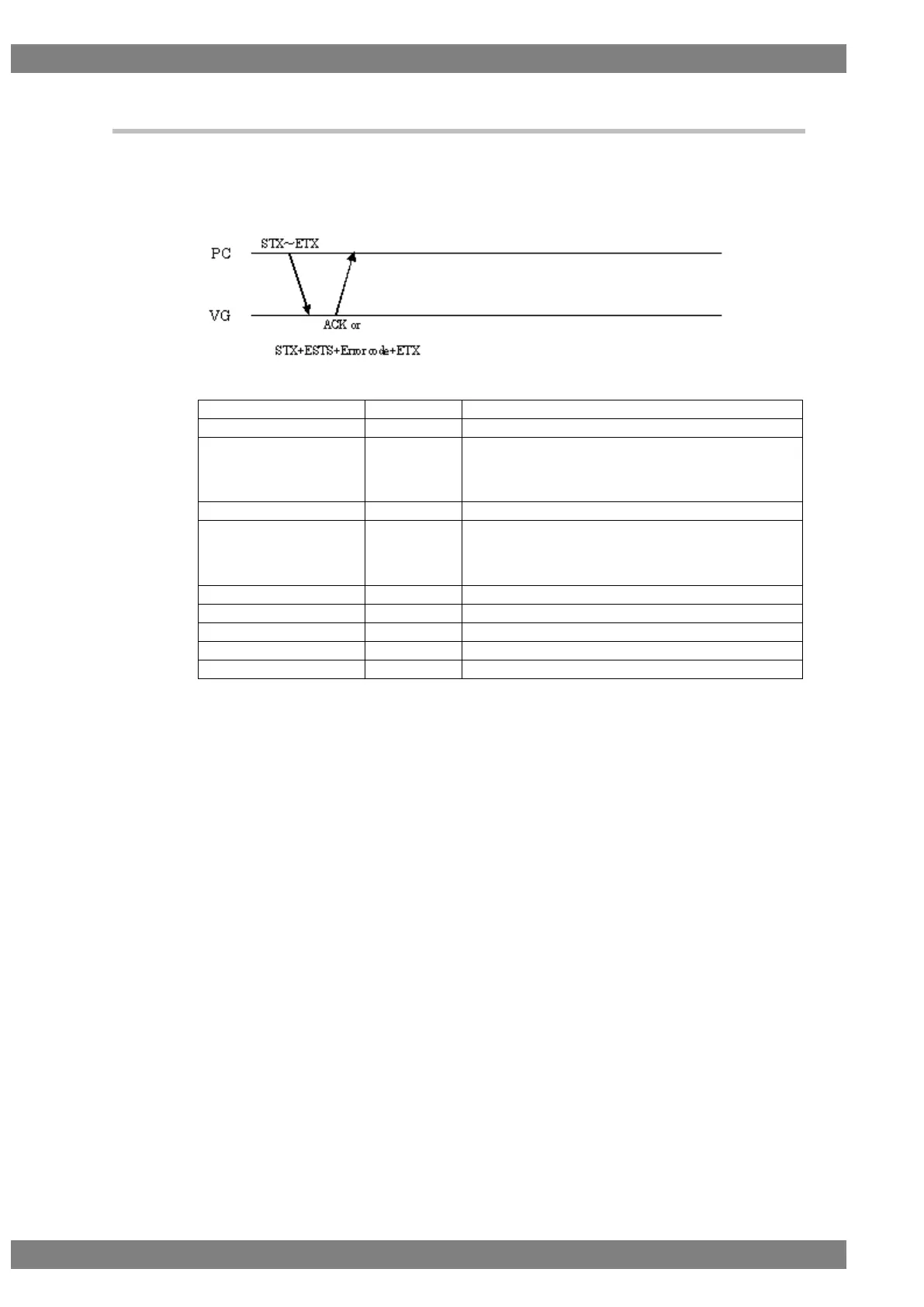

Fig. 5-15-2
