2.79 SID14 [20H 71H]: ID1 data setting
Function: This command sets the ID1 data of the designated program number. When
the program number is 0, it writes the data into the buffer RAM. When it is
9999, it writes the data into the command work RAM.
Sequence: Type 2
Parameters:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SID14
2 bytes
20H 71H
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
Aspect
1 byte
“0” = 4:3 Normal
“1” = 16:9 Normal
“2” = 4:3 LB
“3” = Not Defined
ETX
1 byte
03H

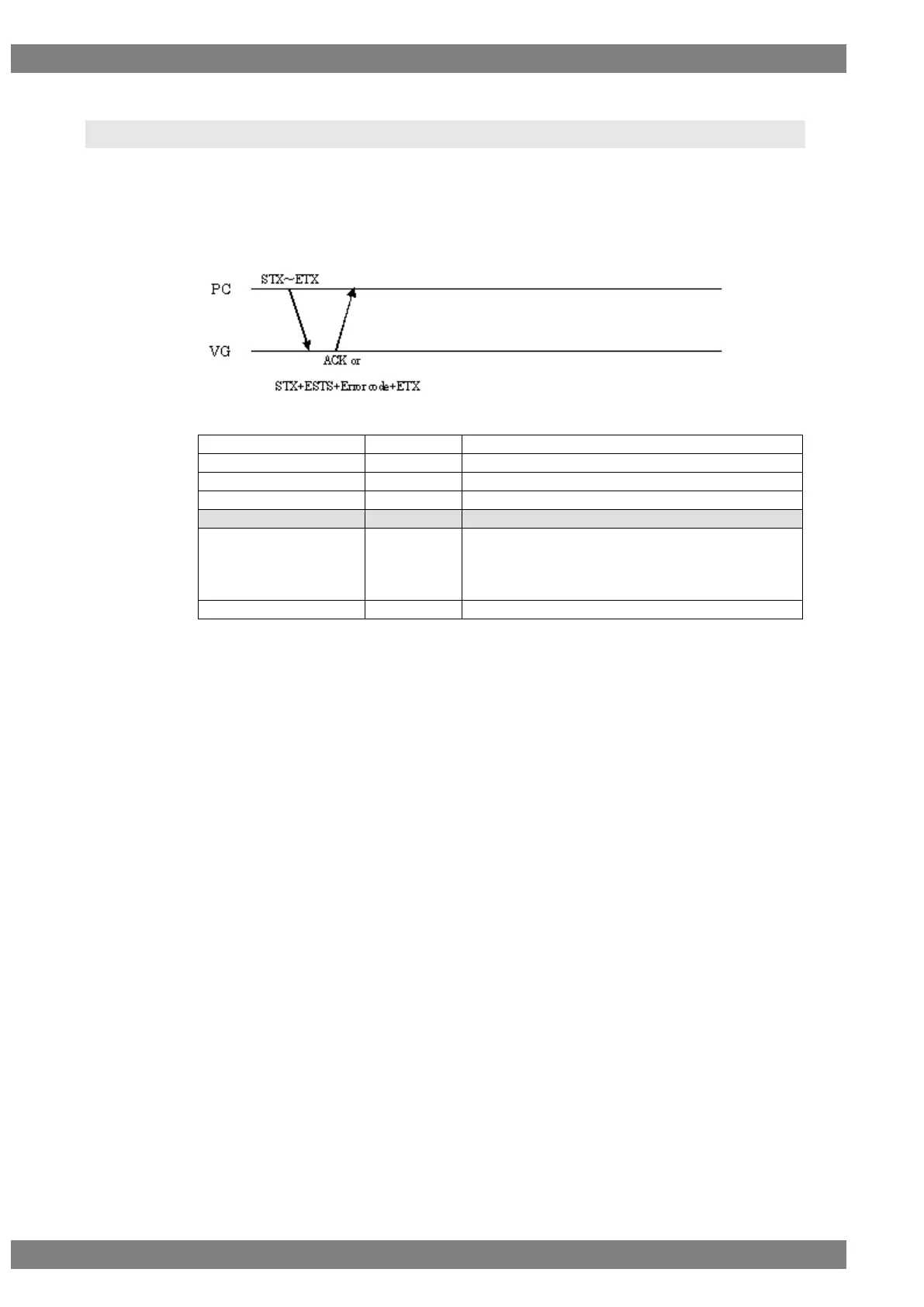

Fig. 2-79-1
